Brother MFC-L2713DW User Manual

3-100
Confidential
9.36 Registration front/rear actuator holder ASSY
(1) Release the Hook part of the Under R FG wire from the LVPS shield plate.
(2) Raise the Laser R FG plate slightly to remove it from the Pin.
(3) Remove the Taptite cup S M3x8 SR screw and the Taptite bind B M4x12 screw, pull out the
right side of the LVPS shield plate in the direction of the arrow A to remove it from the Pin.
And then pull it out in the direction of the arrow B to remove it from the machine.

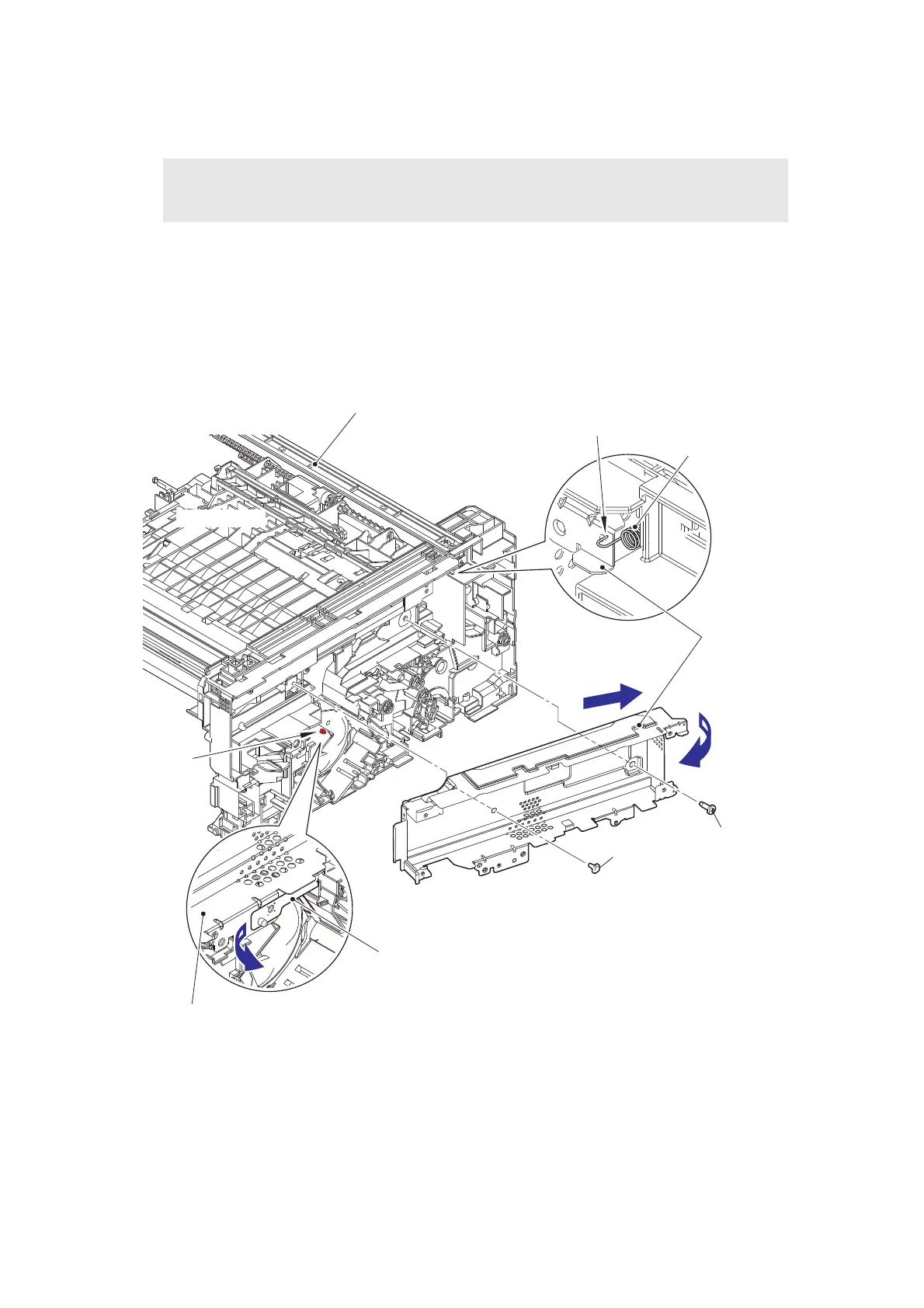

Fig. 3-100
Note:
• As the Under bar is easy to bend, be careful to handle it.
Under R FG wire
Taptite cup S
M3x8 SR
LVPS shield
plate
Taptite bind B
M4x12
Laser R FG plate
Hook part
<Back side>
<Rear view of
Frame R>
A
B
Under bar
<Bottom side>
Pin
LVPS shield plate

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
