Brother MFC-L2713DW User Manual

3-99
Confidential
(2) Release the Hook A, and remove the Eject sensor PCB ASSY from the Pin of the Frame L
unit.
(3) Release the Back cover/duplex tray sensor harness from the securing fixtures.
(4) Release the Hook B, and remove the DX sensor stopper 2 from the Frame L unit.
(5) Release each Hook C, and remove the Back cover/duplex tray sensor from the Frame L
unit.

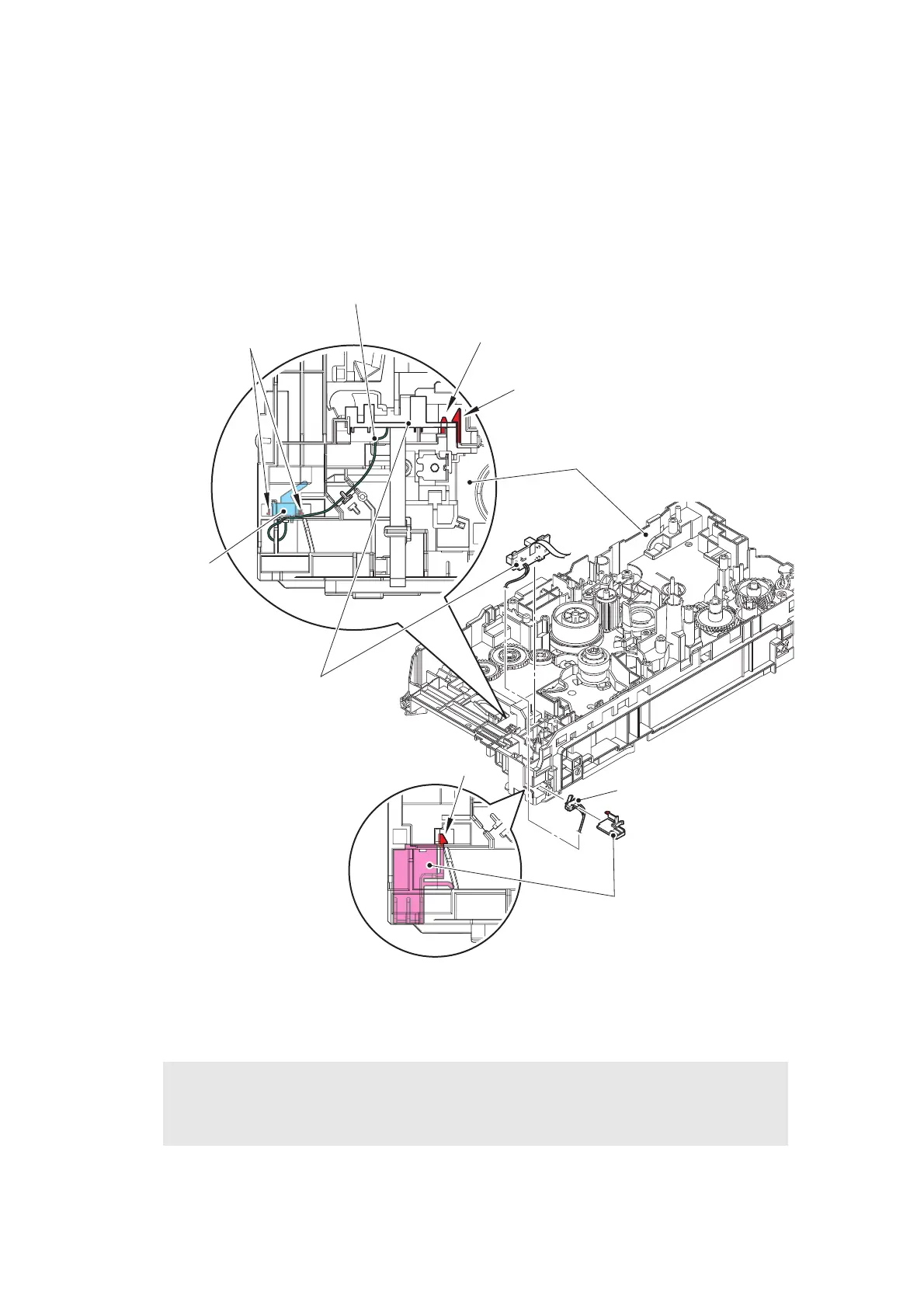

Fig. 3-99
Harness routing: Refer to “10. Frame L unit (Manual feed models)”.
Assembling Note:
• When assembling the Back cover/duplex tray sensor, attach it by engaging the Hooks
C of the Back cover/duplex tray sensor properly.
Pin
Back cover/duplex
tray sensor
Frame L unit
Hook A
Back cover/duplex tray sensor
Eject sensor PCB ASSY
Back cover/duplex tray sensor harness
Hook B
DX sensor stopper 2
Hooks C

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
