Brother MFC-L2713DW User Manual

3-60
Confidential
9.14.3 LCD
(1) Remove the Rubber key L and the Rubber key R from the Panel unit.
(2) Release each Hook A to remove the Backlight guide from the Panel unit.
(3) Remove the Diffusion film.
(4) Release the Hook B to remove the LCD from the Backlight guide.
(5) Remove the LCD sheet from the Panel unit.
(6) Remove the Address label from the Panel unit.

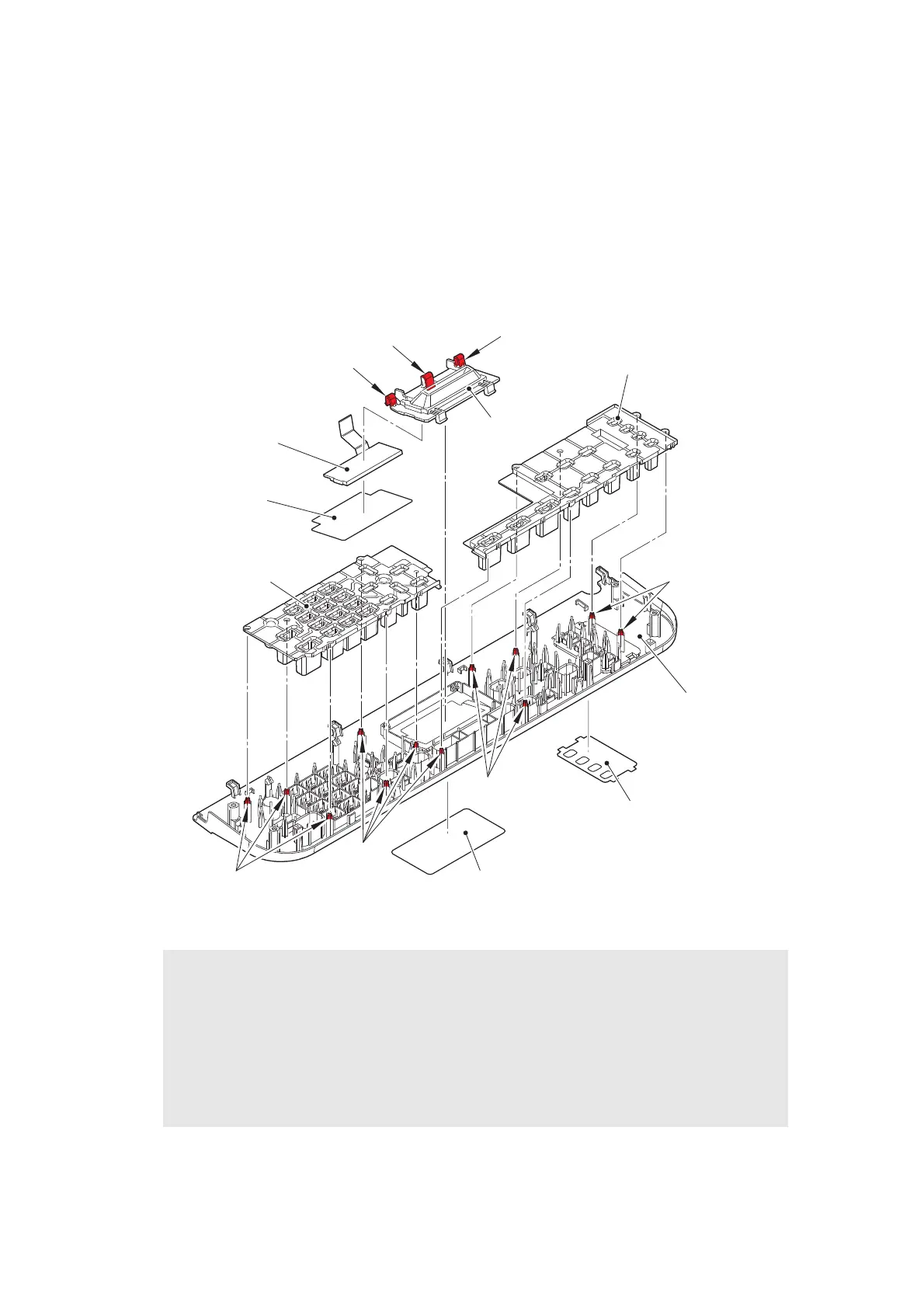

Fig. 3-52
Assembling Note:
• When assembling the LCD, attach the Rubber key R and the Rubber key L in this
order.
• Make sure that the Positioning pins are inserted to the holes of the Rubber key L/R.
• DO NOT bend the Hooks when removing them. If the Hooks are deformed, the LCD
may not be attached to the Backlight guide or the Backlight guide may not be attached
to the Panel unit.
Hook A
Rubber key R
Rubber key L
Panel unit
Address label
LCD sheet
Backlight guide
LCD
Positioning pins
Positioning pins
Positioning
pins
Positioning pins
Hook B
Hook A
Diffusion film
