2. OVERVIEW

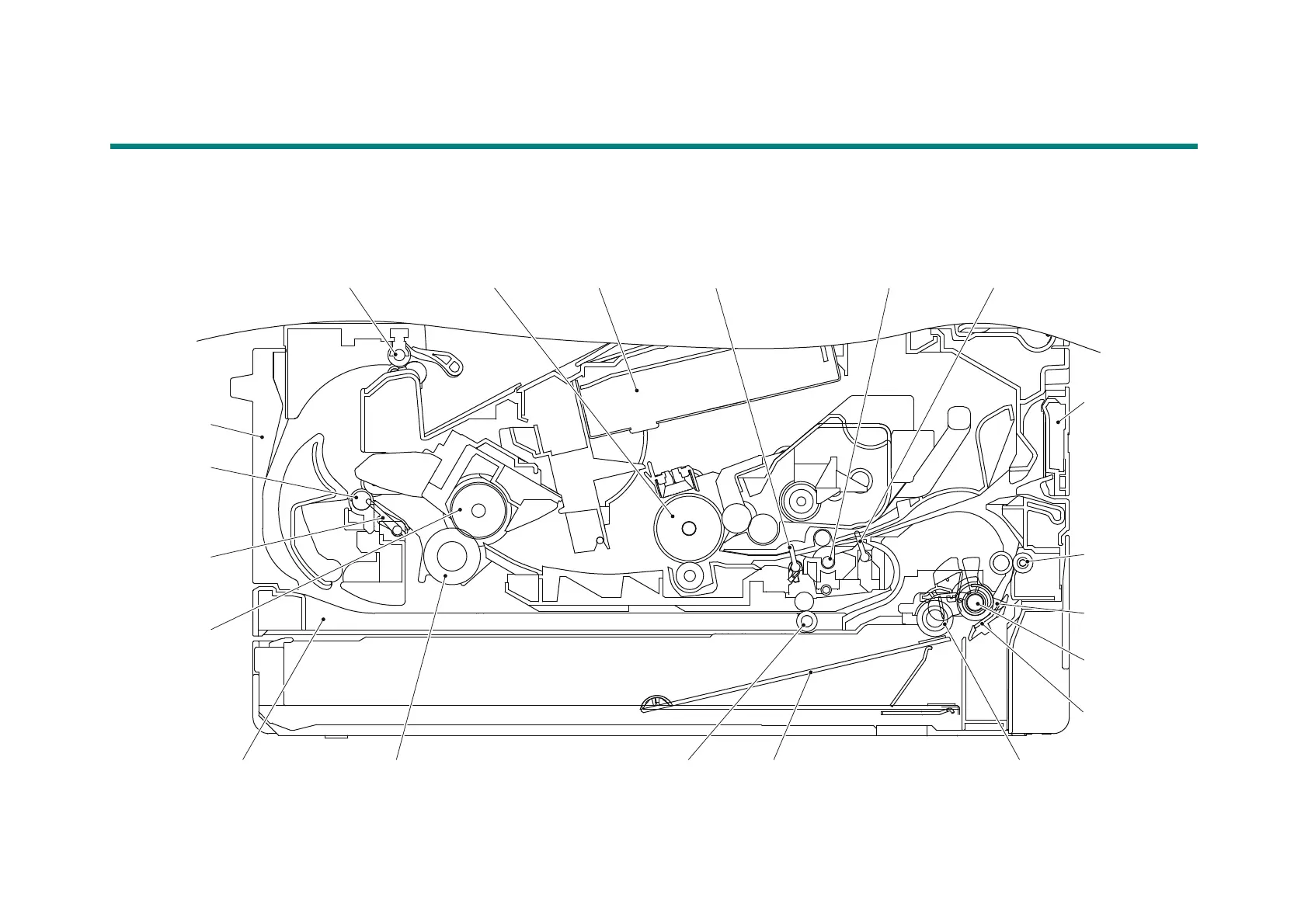

2.1 Cross-section Drawing
2.1.1 Printer part
 Manual feed slot models
Fig. 2-1
<Back side>
Eject roller 2 Exposure drum Laser unit Registration rear actuator
<Front side>
Registration front actuator
Manual feed
slot
Paper dust
cleaning roller
Paper feed
actuator
Paper pick up rollerPlateDuplex paper feed rollerPressure rollerDuplex tray
Heat roller
Back cover
Registration roller
Separation
roller
Separation
pad
Eject actuator
Eject roller 1

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
