Brother MFC-L2713DW User Manual

3-59
Confidential
9.14.2 Panel PCB ASSY

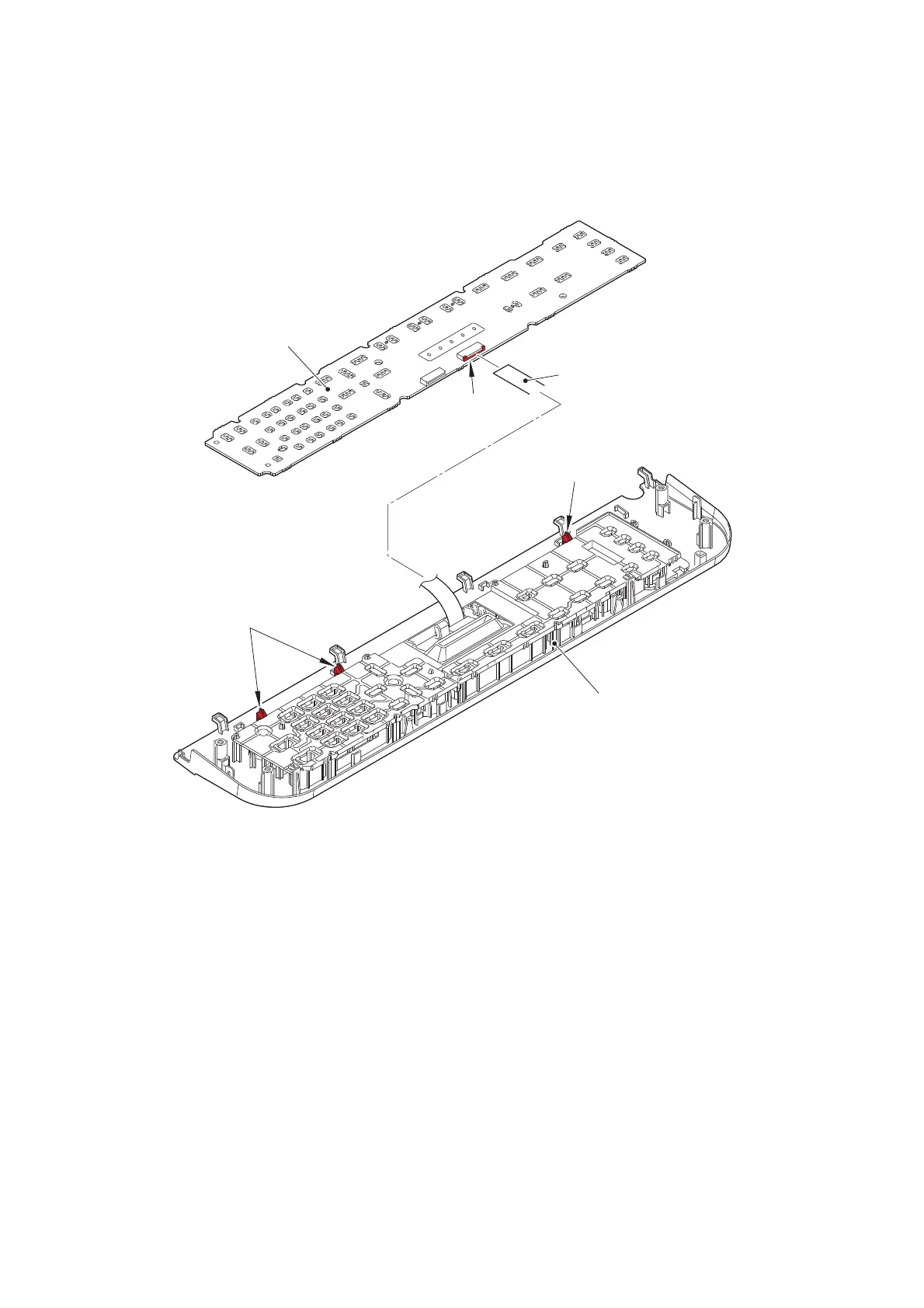

(1) Release each Hook to remove the Panel PCB ASSY from the Panel unit.
(2) Reverse the Panel PCB ASSY. Release the Lock to disconnect the LCD flat cable from the
Panel PCB ASSY.
Fig. 3-51
Panel unit
LCD flat cable
Hooks
Hook
Panel PCB ASSY
Lock

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
