Brother MFC-L2713DW User Manual

3-84
Confidential
9.26 Wireless LAN PCB (Only for wireless network models)
(1) Remove the Tape on the Wireless LAN PCB, and disconnect the Wireless LAN PCB from
the Main PCB ASSY.

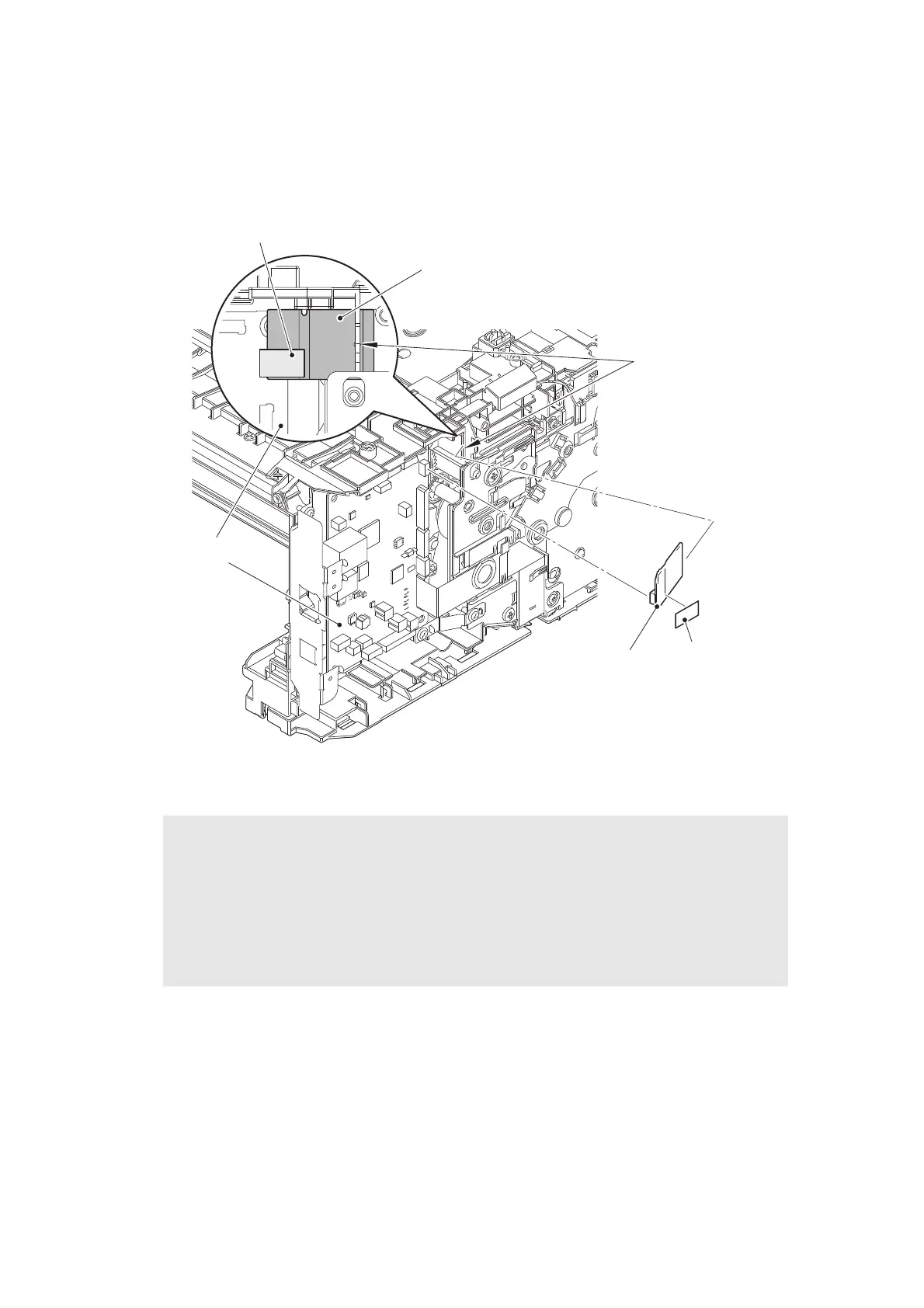

Fig. 3-80
Assembling Note:
• When connecting the Wireless LAN PCB, insert the Wireless LAN PCB to the Hole on
the machine, and connect the Wireless LAN PCB to the Main PCB ASSY.
• When assembling the Wireless LAN PCB, remove all the tapes on the Wireless LAN
PCB. Also, do not attach a tape. These tapes are for securing the Wireless LAN PCB
during the shipping, not required for usage. These tapes are special tape and using
other tapes may cause short circuit between terminals.
Main PCB ASSY
Hole
Wireless LAN PCB
Wireless LAN PCB
<Back side>
Tape
Tape

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
