Brother MFC-L2713DW User Manual

3-34
Confidential
9.9 Side cover L / Speaker harness ASSY /
Handset holder ASSY
(For models with Handset)
(1) Remove the Taptite bind B M4x12 screw.
(2) Release the Hooks A, B, and the Hook C on the Side cover L in order of the arrow A to C,
and remove the Side cover L.
(3) Disconnect the Speaker harness ASSY from the Main PCB ASSY.
(4) Disconnect the Hook harness from the Main PCB ASSY. (For models with Handset)

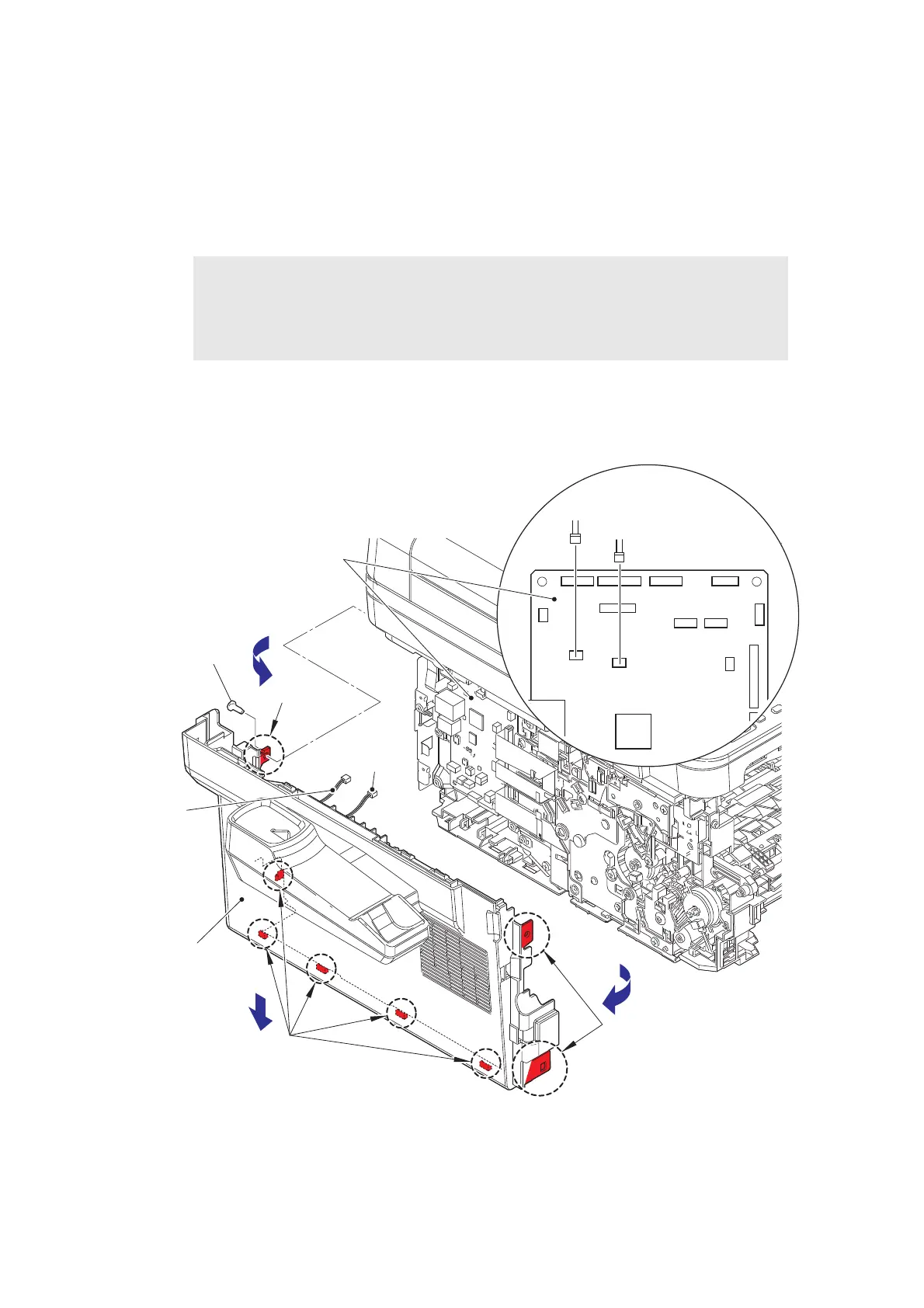

Fig. 3-21
Harness routing: Refer to “1. Handset holder ASSY, Speaker harness ASSY”.
Note:
• When removing the Side cover L, DO NOT pull the Side cover L strongly because
it is connected to the Speaker harness ASSY and the Hook harness (for models
with Handset).
Hooks A
Hooks B
Side cover L
Hook C
C
B
A
Taptite bind B
M4x12
Hook harness
Main PCB ASSY
Hook
harness
Speaker harness ASSY
Speaker
harness
ASSY

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
