Brother MFC-L2713DW User Manual

3-61
Confidential
9.15 Panel flat cable / First side CIS unit / First side CIS flat cable

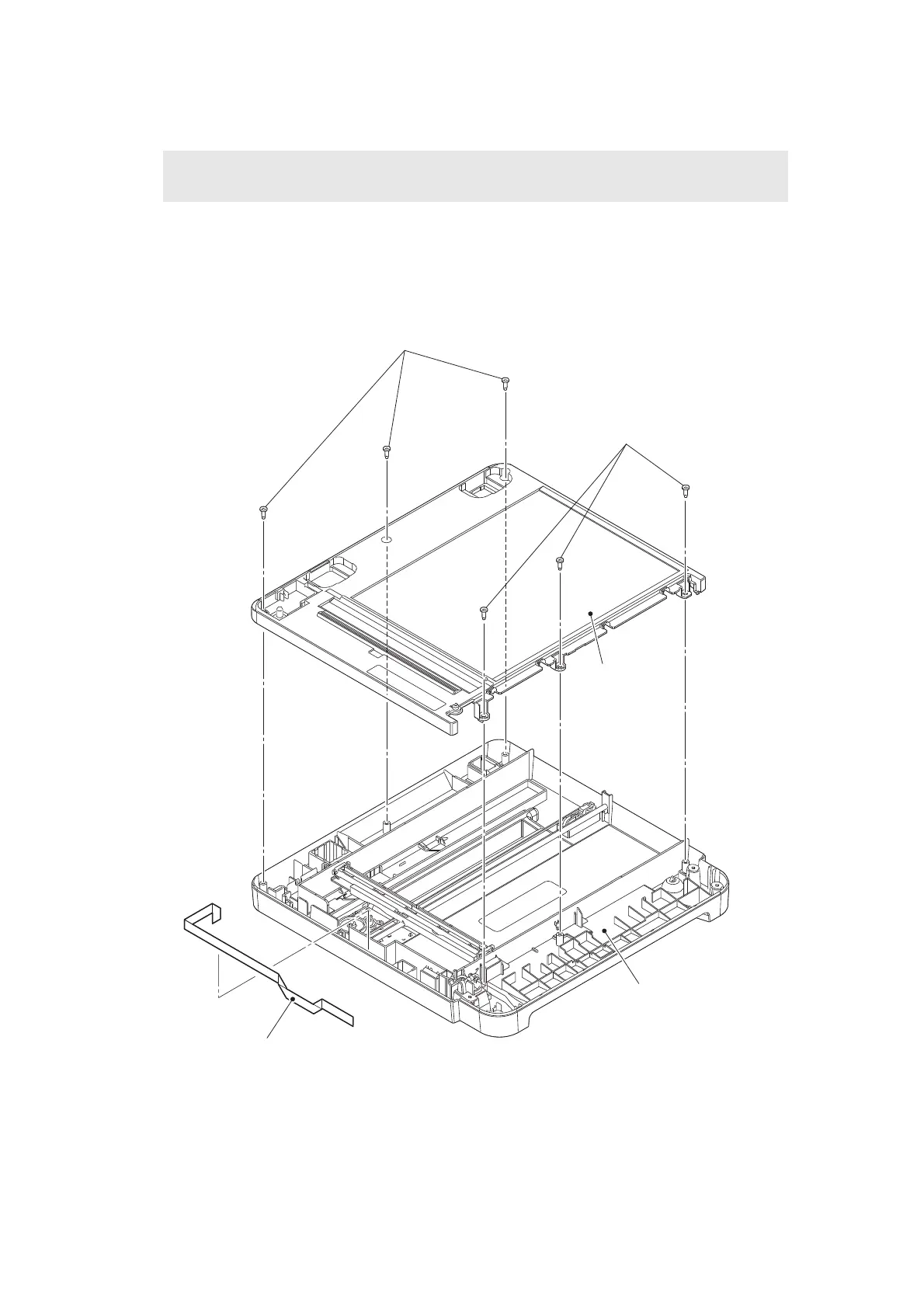

(1) Remove the six Taptite bind B M4x12 screws to remove the Document scanner top cover
from the Document scanner bottom cover ASSY.
(2) Release the Panel flat cable from the securing fixtures, and remove it from the Document
scanner bottom cover ASSY.
Fig. 3-53
Harness routing: Refer to “6. First side CIS unit, Panel”.
Note:
• Disassemble in a dust-free location.
Document
scanner top cover
Taptite bind B M4x12
Taptite bind B M4x12
Document scanner
bottom cover ASSY
Panel flat cable

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
