3-98
Confidential
9.35 Eject sensor PCB ASSY

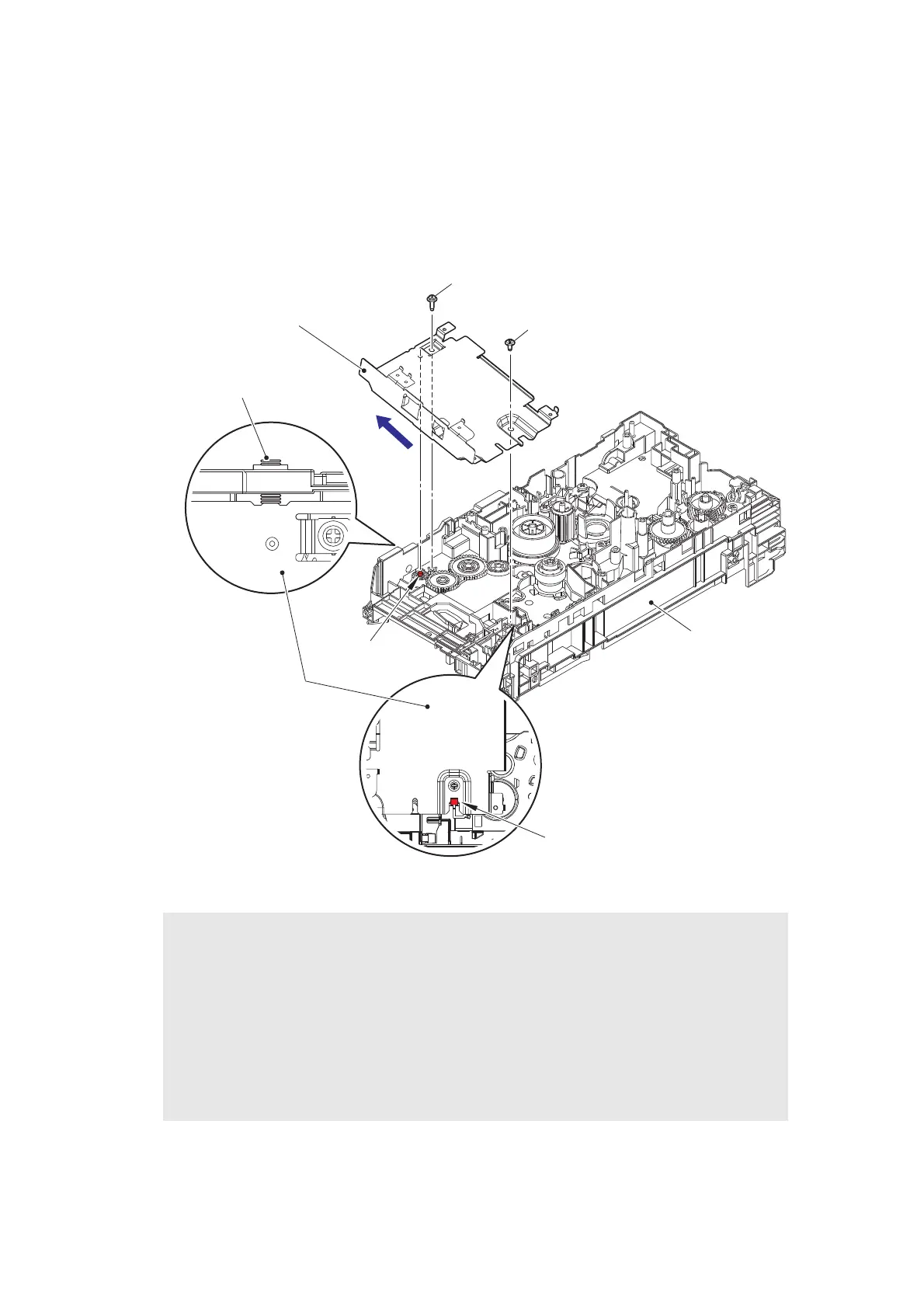

(1) Remove the Taptite cup S M3x8 SR screw and the Screw pan (S/P washer) M3x12DB
screw. Lift the upper side of the Main shield plate up to remove it from the Pin, and pull out
the Main shield plate in the direction of the arrow to remove it from the Rib of the Frame L
unit.
Fig. 3-98
Assembling Note:
• When assembling the Main shield plate, check that the Main PCB ground spring is not
inclined. Attach it correctly as shown in the figure above.
• If you removed the Main shield plate while the Fuser unit was attached on the machine,
release the Side thermistor harness ASSY and the Center thermistor harness ASSY
from the securing fixture of the Frame L unit. Then tighten the screw for the Main shield
plate and secure each harness in the securing fixture. If the Main shield plate is
assembled while the Fuser unit is attached to the machine, the Side thermistor harness
ASSY and the Center thermistor harness ASSY may be caught.
Screw pan (S/P washer) M3x12DB
Main shield plate
Taptite cup S M3x8 SR
Frame L unit
Main PCB ground spring
Main shield plate
Rib
Pin

Brother MFC-L2713DW Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Paper Input Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 15, 000 pages
Memory	64 MB
Processor	600 MHz
Scan Resolution	Up to 1200 x 1200 dpi
Fax Speed	33.6 kbps
Dimensions	410 x 398.5 x 318.5 mm
Weight	11.8 kg
Print Speed	30 ppm
Display	2-line LCD
Connectivity	USB, Ethernet, Wi-Fi
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
