HOW TO REPLACE FUSES AND LIGHTS
CAUTION Always turn the ig-
nition switch to the OFF position be-
forereplacingabulbtoavoidelectric
shock.
Always check light operation after re-
placement.
rmo2010-001-304_a

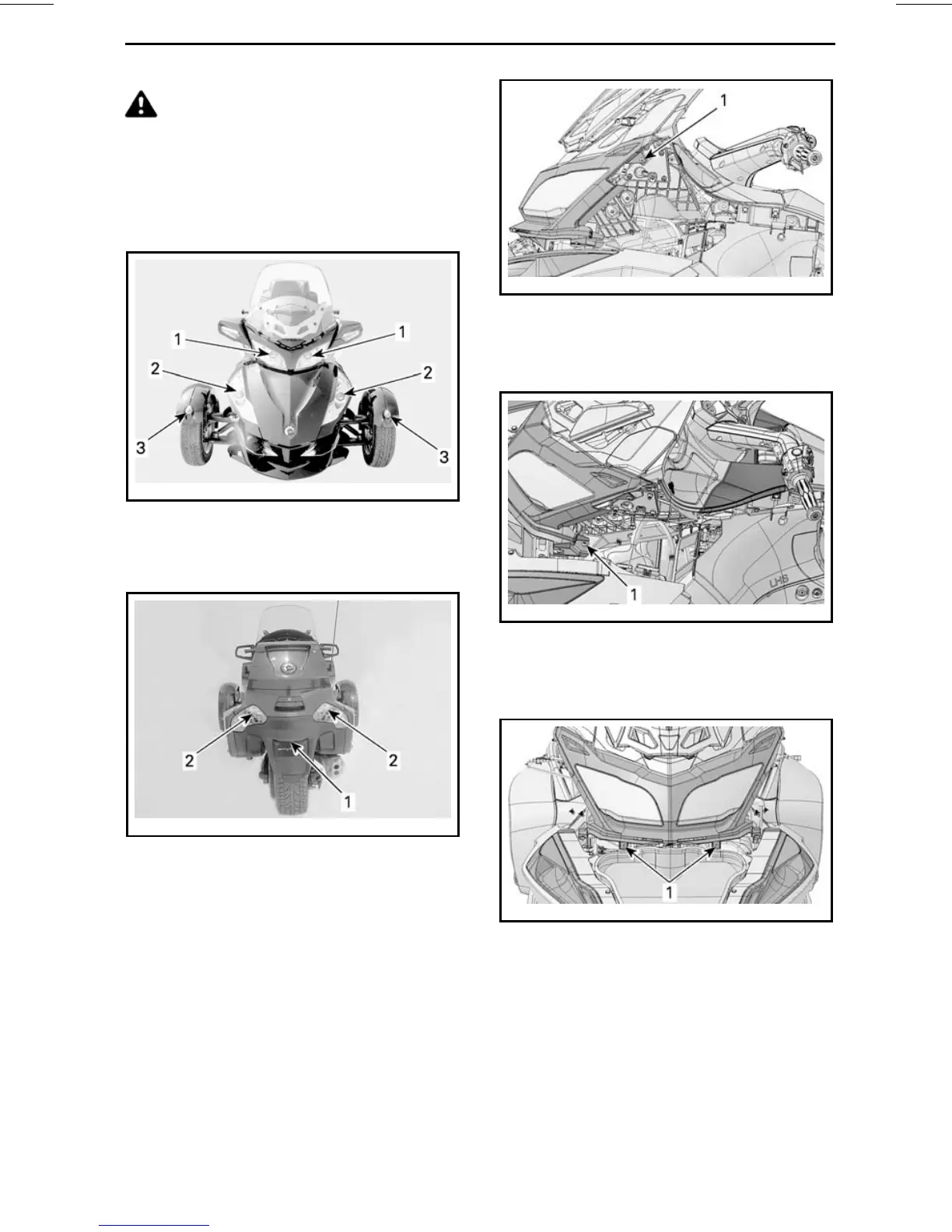

LIGHTS LOCATION — FRONT OF VEHICLE
1. Headlight
2. Fog light (option package)
3. Position light
rmo2010-001-047_c
LIGHTS LOCATION – REAR OF VEHICLE
1. License plate light
2. Backup light
Headlight
1. Remove the top side panel.
2. Remove the upper retaining screw
s
from front fascia.
rmr2010-038-022_a
1. Upper retaining screw
3. Remove middle retaining screws
from front fascia.
rmr2010-038-023_a
1. Middle retaining screw
4. Remove lower retaining screws and
washers from front fascia.
rmr2010-038-024_a
1. Lower retaining screw
5. Remove front fascia from vehicle.
6. Remove adjustment cable
retaining
nut.
______________
155
