BRP Spyder RT - BASIC PROCEDURES; Starting and Stopping the Engine

EQUIPMENT

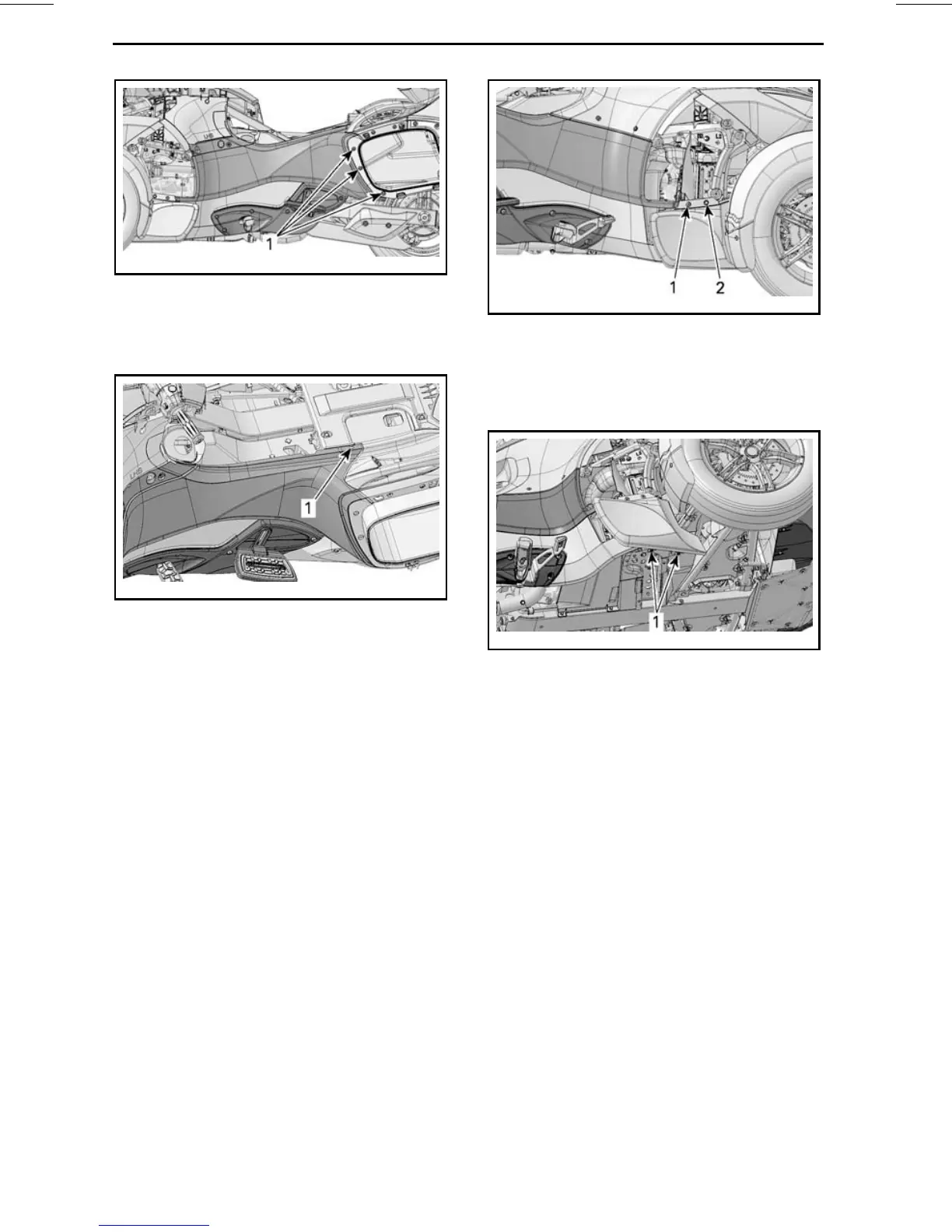

rmr2010-038-012_a
1. Rear retaining screws
8. Remove top retaining screw of rear
side panel.
rmr2010-038-013_a
1. Top retaining screw
9. Remove rear side panel from vehi-
cle.
Installation
Reinstall rear side panel in the reverse
orderoftheremoval.
Bottom Front Side Panel
Removal
1. Remove side panel.
2. Remove upper retaining screw from
panel.
3. Remove upper plastic rivet from
panel.
rmr2010-038-015_a
1. Upper retaining screw
2. Upper plastic rivet
4. From the bottom, pull on the panel
to remove push-in clips.
rmr2010-038-016_a
1. Push-in clips
5. Remove bottom front side panel
from vehicle.
Installation
Reinstall bottom front side panel in the
reverse order of the removal.
Bottom Rear Side Panels
Removal of Bottom Rear RH Side
Panel
1. Remove middle side panel.
2. Remove top side panel.
3. Remove rear RH side panel.
4. Remove bottom front side panel.
5. Remove bolt and nut from bot
tom
rear RH side panel.
