EQUIPMENT

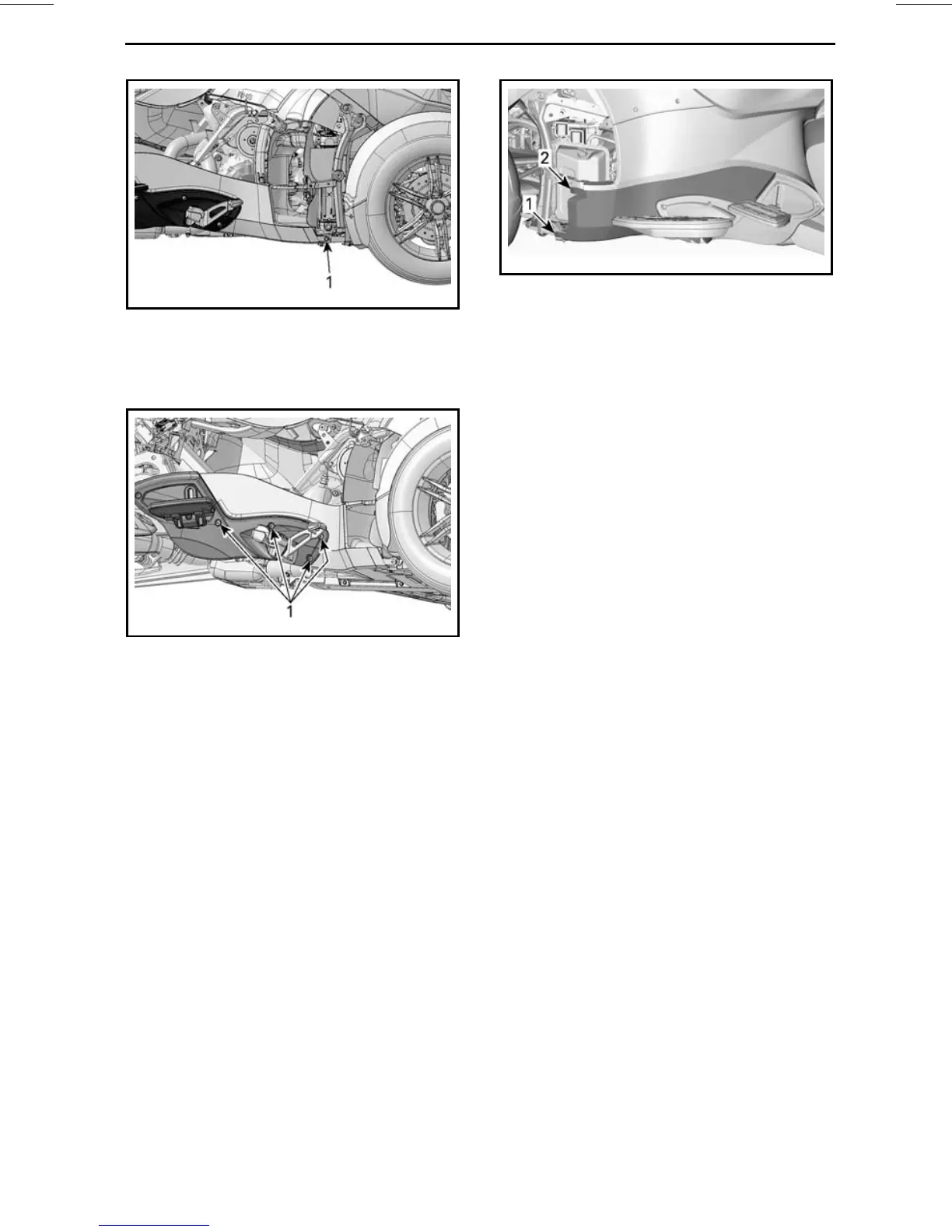

rmr2010-038-017_a
1. Front retaining nut
6. Remove retaining screws from bot-
tom rear RH side panel.
rmr2010-038-018_a
1. Retaining screws
7. Remove bottom rear RH side panel
from vehicle.
Removal of Bottom Rear LH Side
Panel
1. Remove middle side panel.
2. Remove top side panel.
3. Remove rear LH side panel.
4. Remove bottom front side panel.
5. Remove bottom retaining screw
from bottom rear LH side panel.
rmo2013-005-010_a
1. Bottom retaining screw
2. Upper retaining screw
6. Loosen upper retaining screw.
NOTE: Upper retaining screw remains
attached to bottom panel.
7. Remove bottom rear side panel
from vehicle by pulling forward to
release panel from bracket.
NOTE: The back of the panel is in-
serted between the bracket and alu-
minium support.
Installation
Reinstall bottom rear side panels in the
reverse order of the removal.
