10 (41) BRUKER BCU05 Version 006
BCU05 HR applications
Installation 1.3
See "BCU05 with BST Block diagram" on page 28
To install the system, proceed as follows :
1. Attach the support clamp (supplied with magnet) to the magnet. Insert the two
half shells between clamp and exchanger.

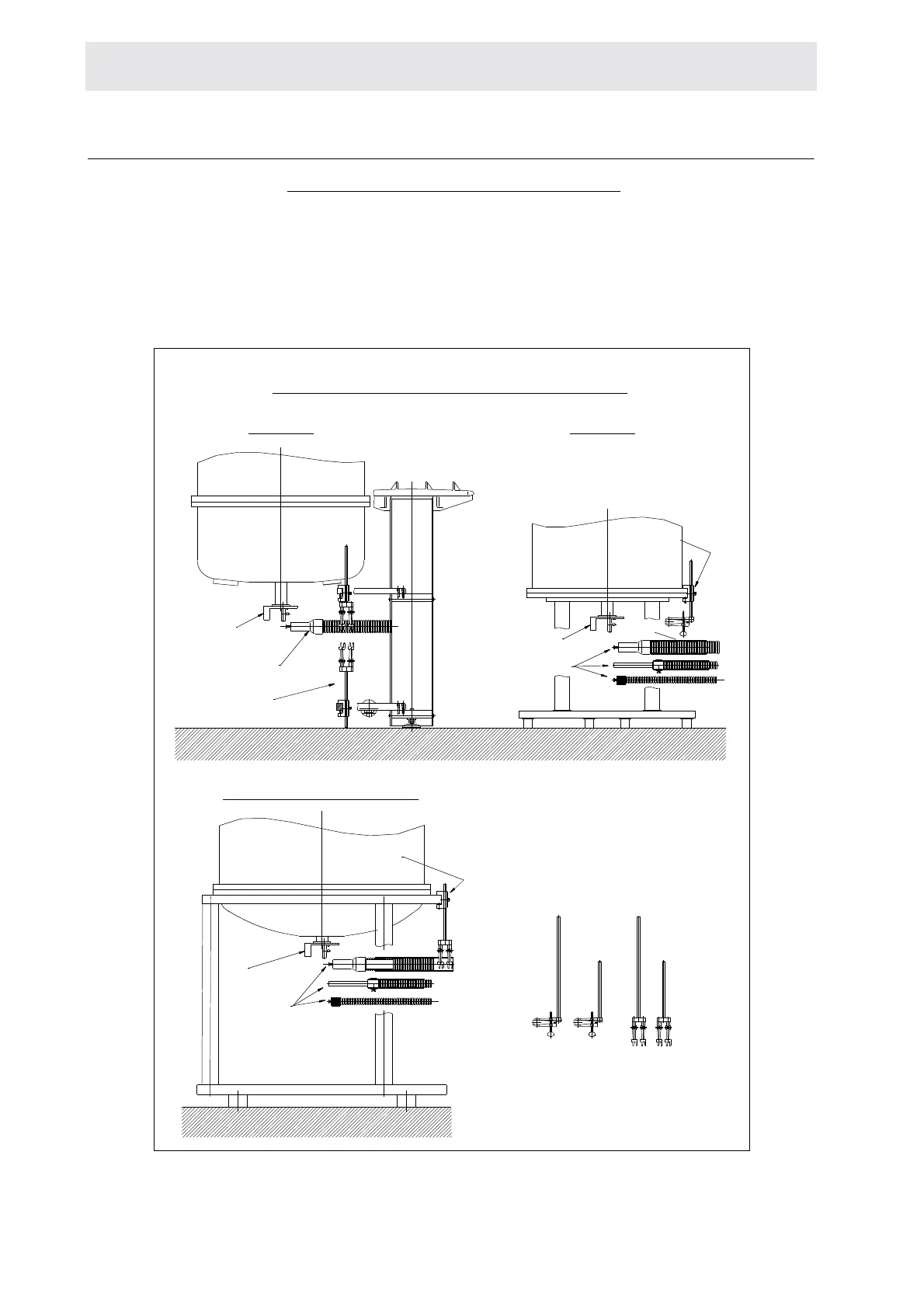

Figure 1.1. Mounting the support clamp
Mounting of the support clamp
diffrent mounting possibilities
probe
support clamp
heat exchanger
cryostat
cryostat
cryostat
heat exchanger
support clamp
probe
probe
heat exchanger
support clamp
of the support clamp assembly
Z4C-29661
Magnex magnet / Oxford systems
D22X/D26X D1XX/D2XX
shell
