26 (41) BRUKER BCU05 Version 006
BCU05 HR-MAS to BCU05 HR
How to install a SENSE OF BEARING kit 4.2

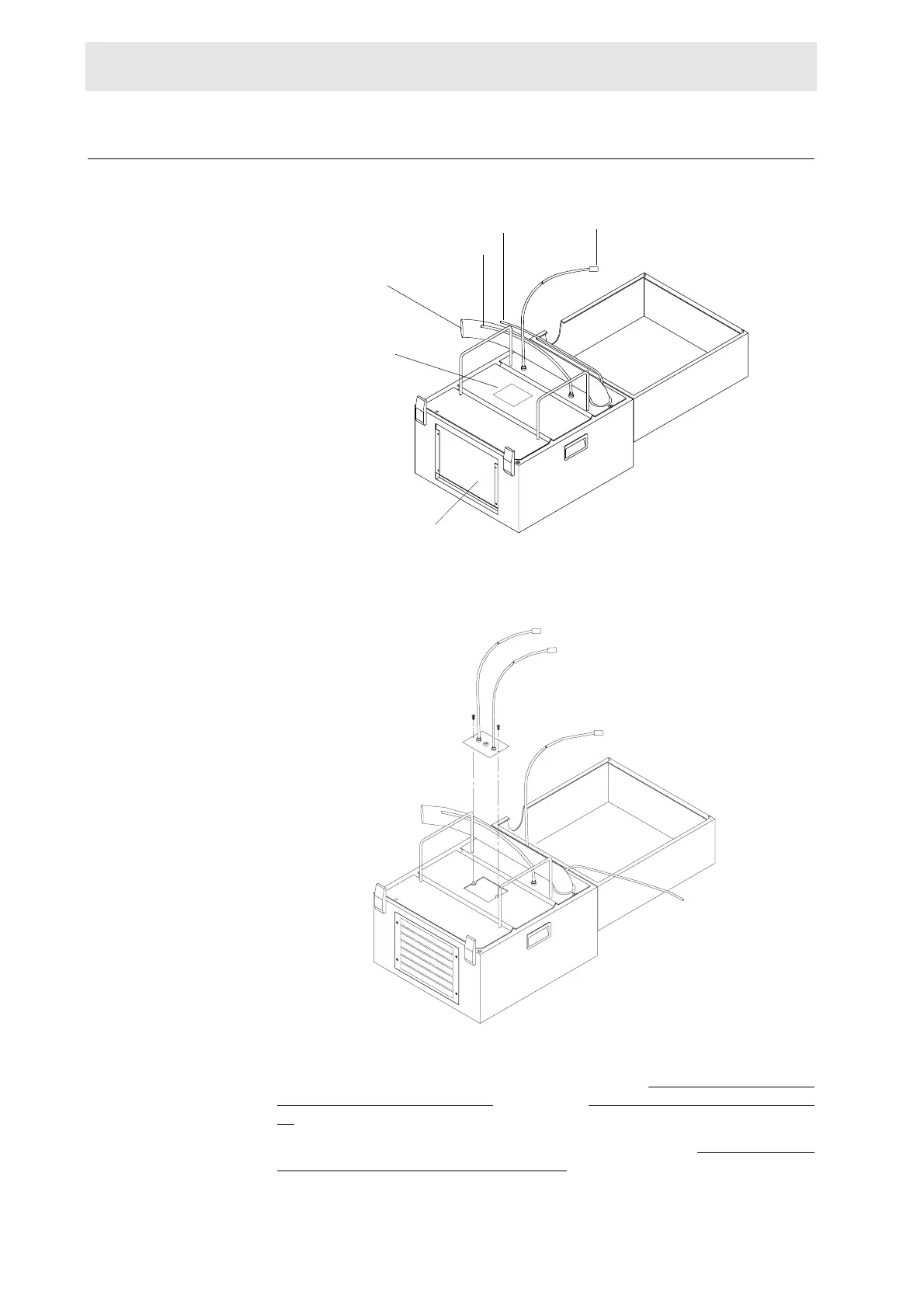

1. Unscrew the blind panel (see picture below)
2. Install the kit as shown in picture below
3. Connect the hoses and cables as shown on drawing "BCU05 HR-MAS Con-
nection diagram" on page 33 and drawing "BCU05 in operation" on page
35.
4. Change the HR coupling with HR-MAS coupling (see chapter "How to change
from BCU05HR to HR-MAS" on page 23.
filter
heat exchanger
dried air or N2 in
mains
BVT connector
blind panel
