BVT 7
BVT and BVT-Supply 7.1
The BVT needs an additional supply Board, the BSMS/2 PS BD BVT3200 400VA
(Z002840).
The following pictures show how to install these two modules into a BSMS/2 rack.
Assembling Instructions 7.2

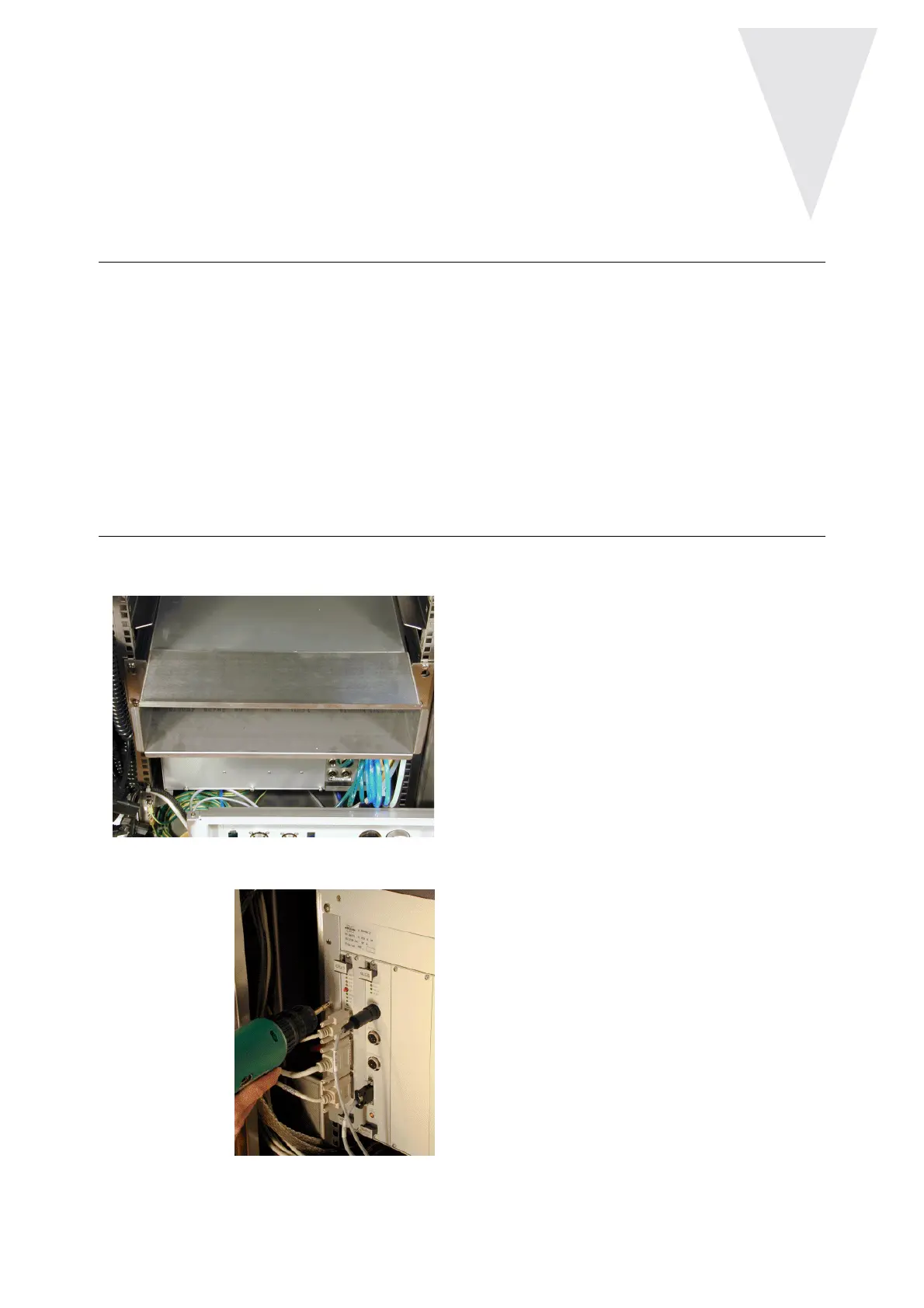

Loosen the four screws and remove the cooling air
channel
Remove all eight screws of the BSMS/2 rack.
