D2 PHASER User Manual
DOC-M88-EXX141 V5 – 01.2015 95

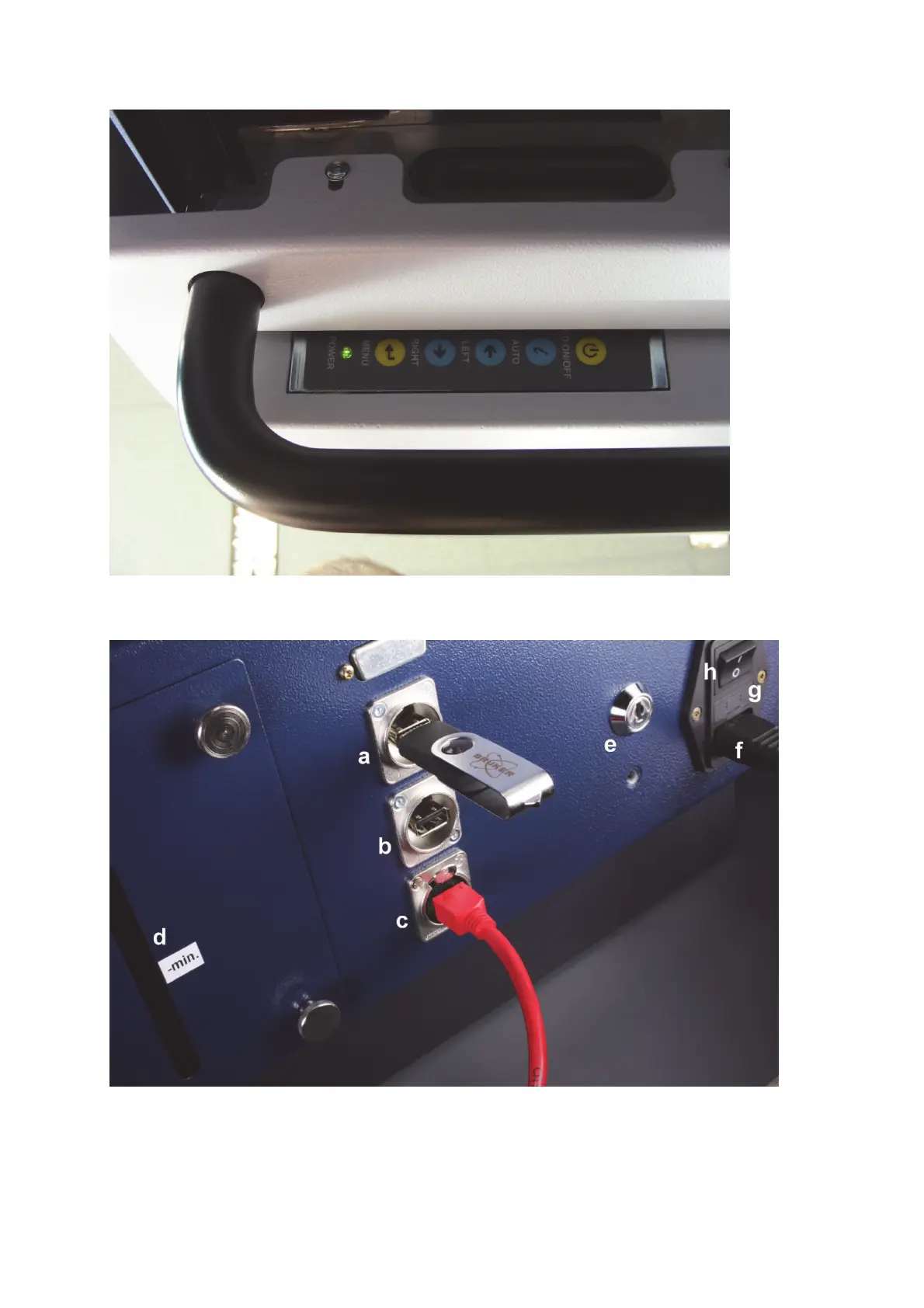

Fig. 114 TFT display control panel on lower right corner (view from below).
Fig. 115 Back side of D2 PHASER housing: (a) and (b) are USB ports, (c) is LAN port, (d) is level
indicator window, (e) is HV generation disable/enable key switch, (f) is mains plug, (g)
covers the fuse and (h) is the main switch.
