D2 PHASER User Manual
DOC-M88-EXX141 V5 – 01.2015 93

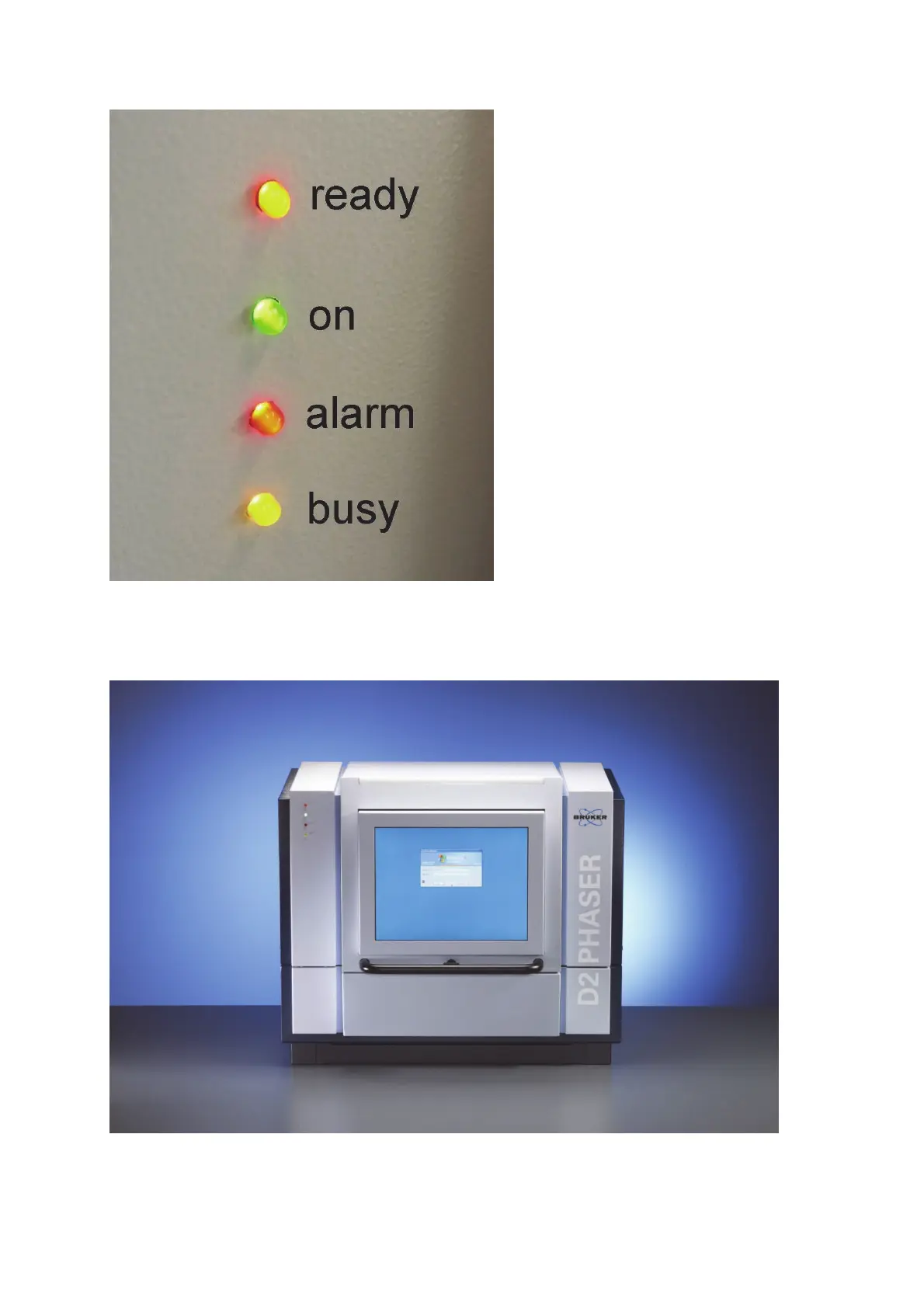

Fig. 110 Status LEDs: ‘ready’ on = HV on, ‘ready’ blinking = heating on; ‘on’ = D2 PHASER is on;
‘alarm’ on = alarm status detected; ‘busy’ on = measurement is in progress, ‘busy’ off =
measurement is ready. ‘alarm’ blinking = warning.
Fig. 111 Logon screen of D2 PHASER.
