2.1 Actuator EMS 17 – EMS 22
These actuators all have something in common; they are fitted with
an integrated position feedback.
2.1.1 Select actuator
Pre-adjustments are already carried out with the selection of the
standard system when using the EMS 17/18 actuator. In this case
you can continue with point 2.1.2.
You have to enter the EMS 21 or EMS 22 if there is one of these
actuators connected.

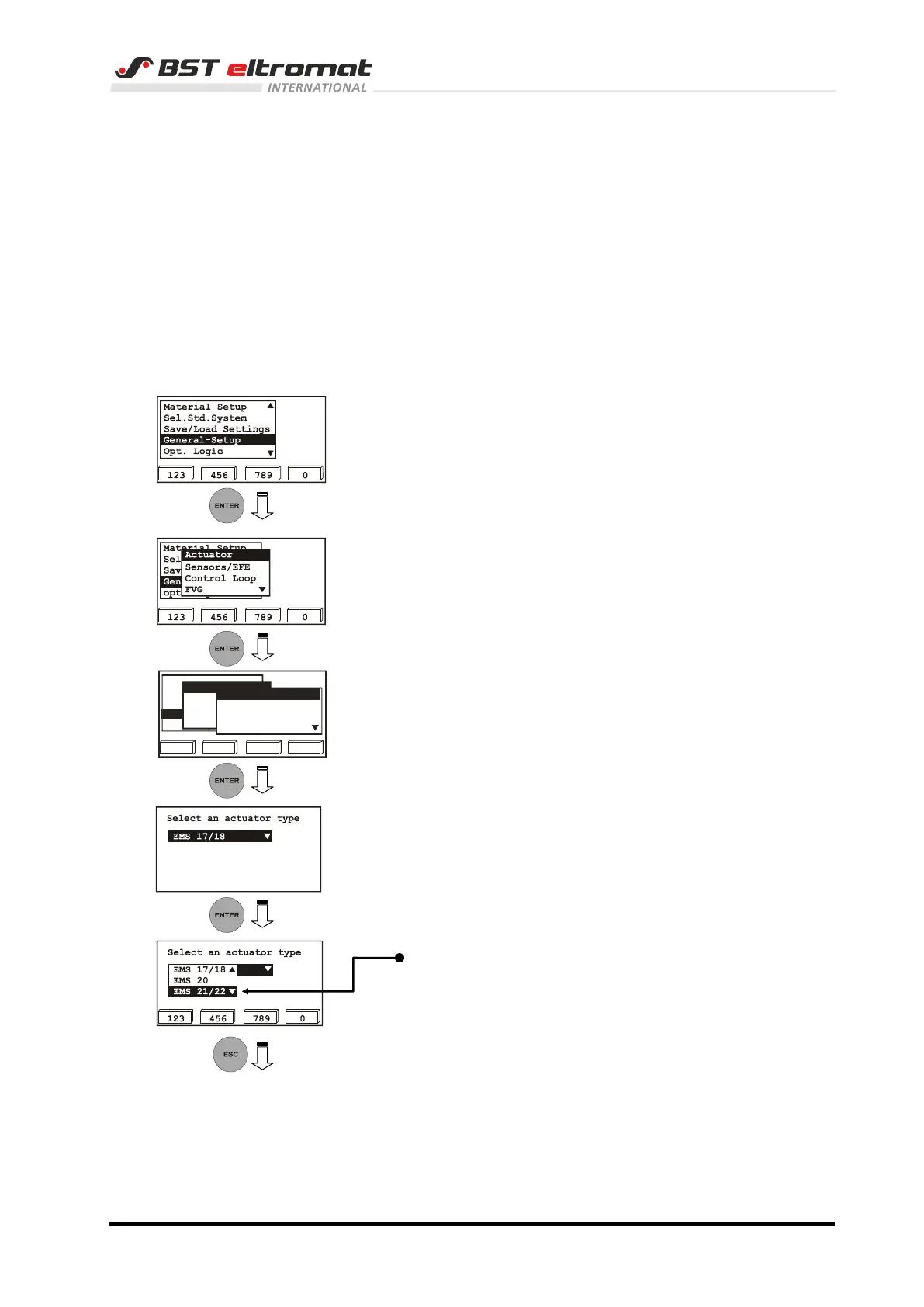

1. Call up the General Setup menu.
2. Select the Actuator sub-menu and then the select the
Type (EMS&Hydr.) sub-directory afterwards.
Confirm the respective selection by pressing ENTER.
3. The default actuator will be dispalyed on the screen.
4. Press the ENTER button. The actuator option list will then be
opened.
Use the vertical arrow keys to select the actual actuator that
is connected to the system (EMS 21 / EMS 22).
Confirm the selection by pressing ENTER.
5. Press the ESC button to exit the window.
