Quick Reference Guide QRG
Quick Reference Guide EDV no.: MD.337.01.04
ekrPro Com60 with CLS Pro 600 Issue Date: 30.06.2011 Seite: 5/22

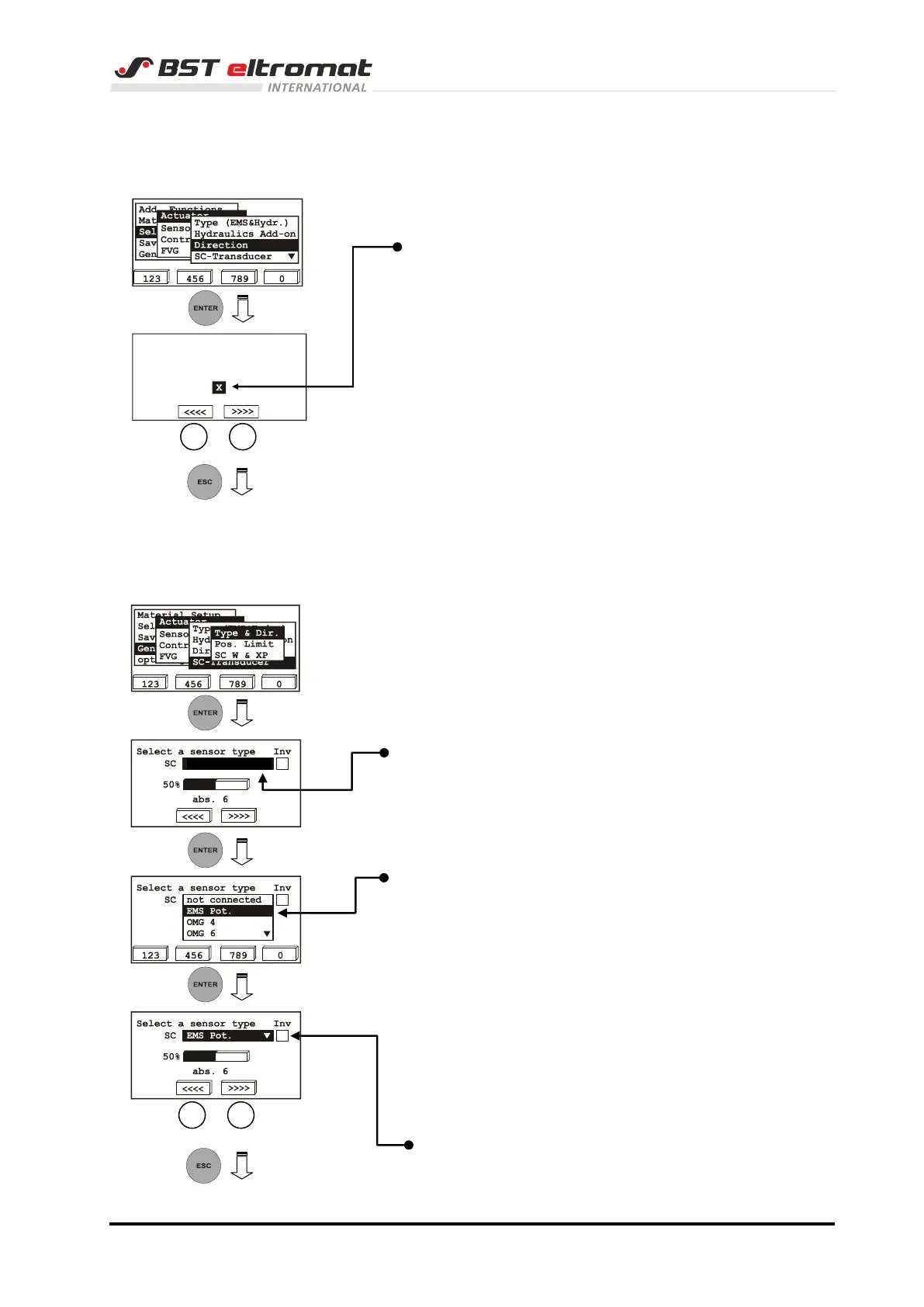

2.1.2 Setting the actuator guiding direction
1. Select the sub-directory Direction from the sub-menu
Actuator. Confirm the selection by pressing ENTER.
The actuator guiding direction for manual mode can be
reversed by activating the checkbox Mot. Dir. Inverted.
The direction can be checked on the spot.
Move the actuator using the F2 or F3 key.
If key F2 is pressed, the actuator must move the material
web to the left hand side in material running direction, if F3 is
pressed it must move it to the right hand side in material
running direction!
Pressing F2 or F3 automatically changes the controller to
the manual operating mode.
2.1.3 Select servo-center component
1. Select the sub-directory SC-Transducer from the Actuator
sub-menu and select then Type & Dir. .
Confirm the respective selection by pressing ENTER.
2. Use the horizontal left or right arrow keys in the newly
opened window to select the servo-center selection window
and confirm it by pressing ENTER.
3. Select and mark the relevant servo-center component from
the option list. For actuators with integrated position
feedback (EMS 17, EMS 21 and EMS 22) there is a
common servo-center component
In this case EMS_Pot. Has to be selected.
4. Confirm the selection by pressing ENTER.
The screen will return to the previous window.
5. Move the actuator using the F2 key, while monitoring the bar
indicator int he display. The black bar on the left side gets
smaller.
If the length of the black bar increases when the F2 key is
pressed, inverting is to be switch on by selecting the
checkbox Inv..
Pressing the F3 key must cause the black bar to increase
towards the right side.
Toggle Man Dir. until
F2 moves to sensor 1
Mot. Dir. Inverted
To Next Page
