SM-DIN ↔ Machine Interface
SMART MATRIX TWIST - 1-6 -
SM-DIN ↔ Machine Interface

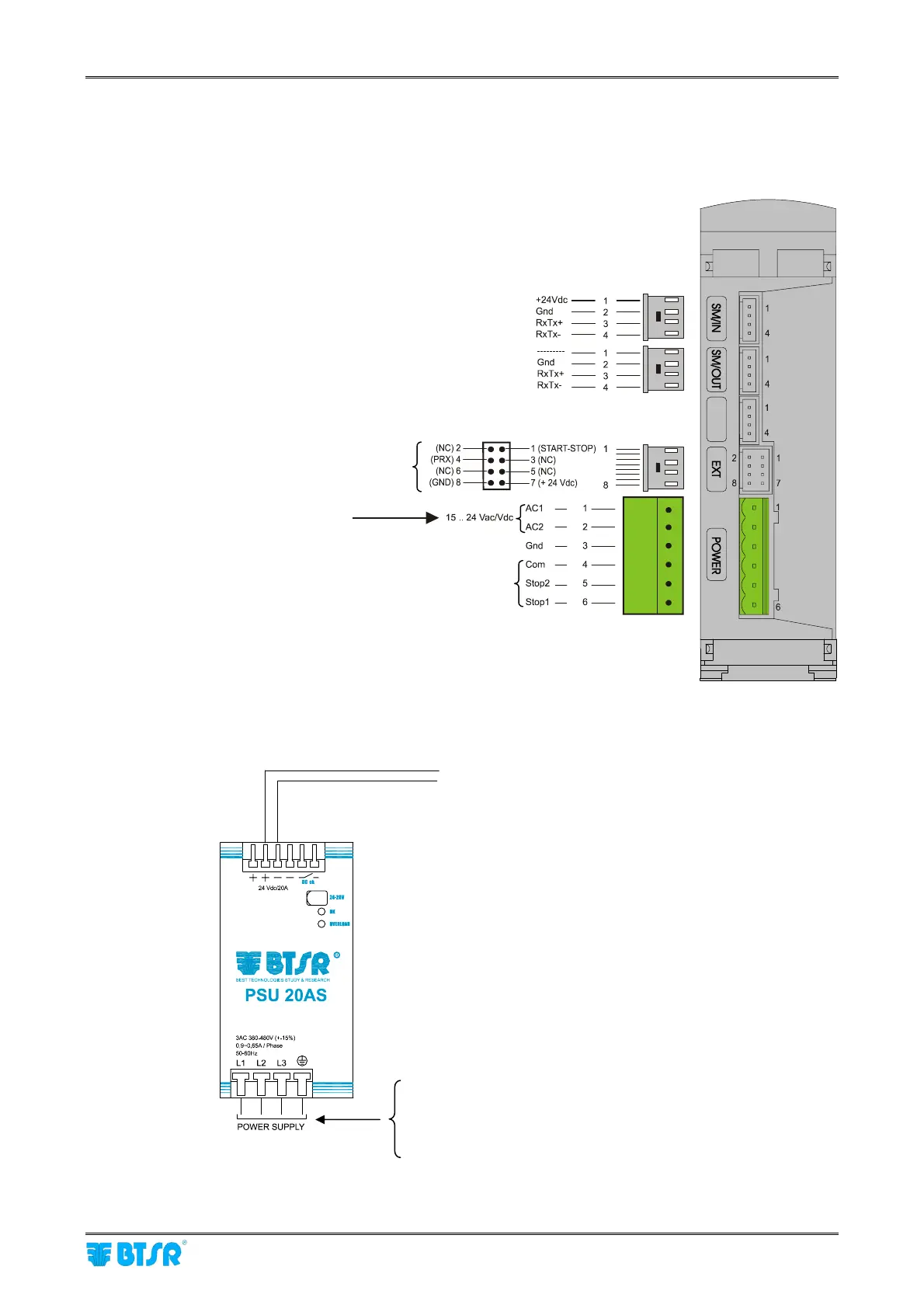

The following diagram shows the electrical interface (pin assignment) of SM-DIN Board.
The sensor interface is shown on page 1-8.
(*) Recommended power supply: 24 Vdc with PSU 20 AS/ASM
PSU 20AS = three-phase power supply (400 Vac)
PSU 20ASM = single-phase power supply (230 Vac)
Machine Interface
(INPUT)
Machine Interface
(OUTPUT)
Power Supply (*)
