Communication Test
SMART MATRIX TWIST - 2-20 -
Communication Test
This function allows you to check:
- The efficiency level of communications between SMART MATRIX and SM-DIN Boards and between SM-
DIN Boards and Sensors.
- The correct operation of Sensors.
Communication Efficiency

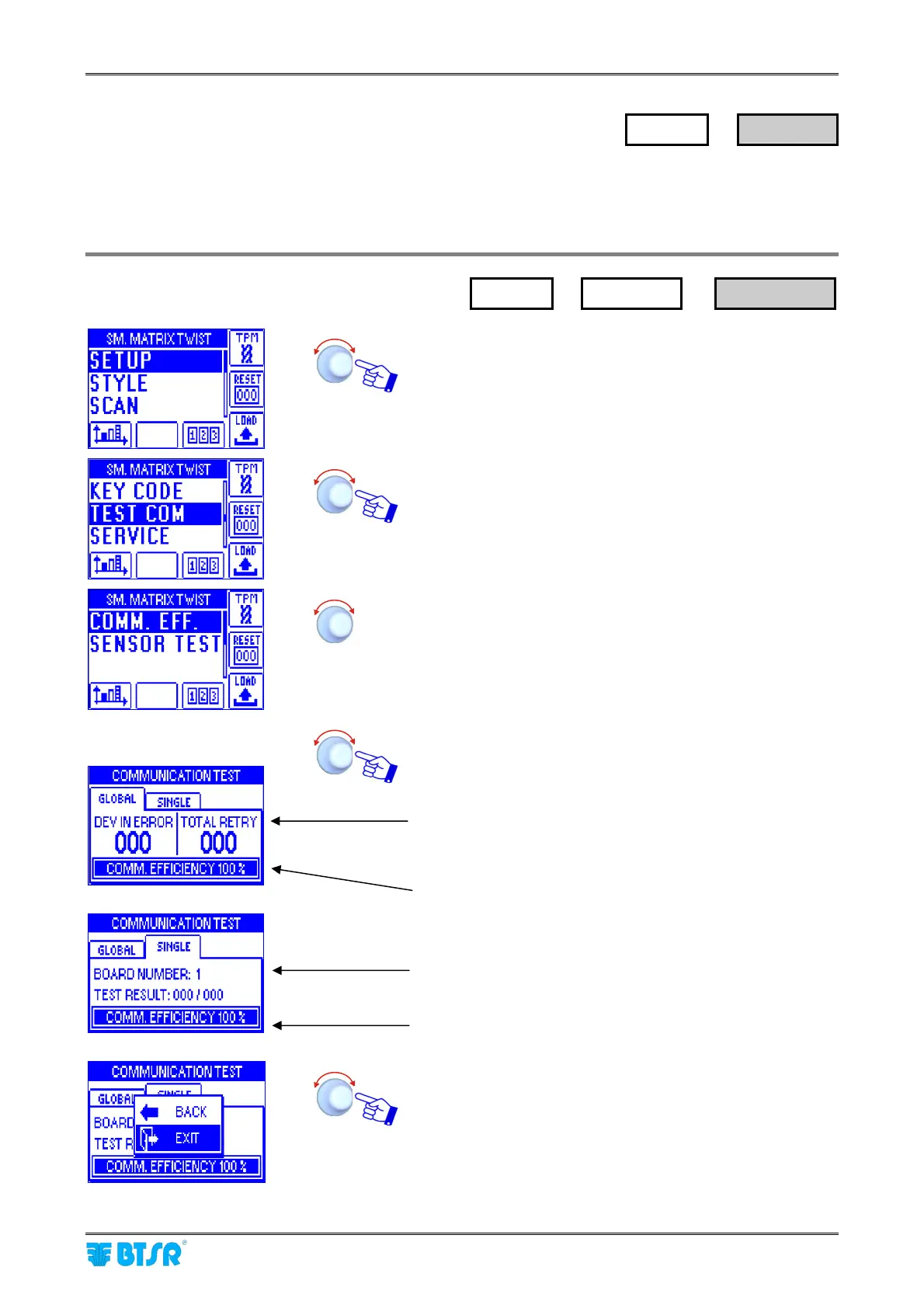

Enter the SETUP menu.
Select TEST COM.
Select COMM. EFF. to check the efficiency level of
communications.
Select GLOBAL (global communication efficiency) or
SINGLE (communication efficiency with the individual
Board).
Number of sensors on which communication errors
occurred (DEV IN ERROR) and total number of
transmissions repeated as a result of detected errors
(TOTAL RETRY). A maximum of 5 transmissions are
repeated for each board.
Global efficiency index.
Like for GLOBAL option, but referred to the selected Board
(e.g: BOARD NUMBER:1)
Efficiency index of Board 1.
BACK to return to the previous screen without saving, EXIT
to return to menu.
SETUP
→
TEST COM
SETUP
→
TEST COM
→
COMM. EFF.
