SMART MATRIX TWIST Operation
SMART MATRIX TWIST - 2-2 -
Navigation throughout the Display Windows
Many configuration/parameter setting functions of SMART MATRIX system require a number of parameters
distributed among multiple
display windows.
All the “Window Selection”, “Parameter Selection within a Window” and “Parameter Setting” functions on
SMART MATRIX terminal, can be carried out using exclusively the multi-function Rotary Selector, through a
navigation technique based upon “Pointing”, “Selecting” and “Value Setting” actions.
The following example explains this navigation technique.

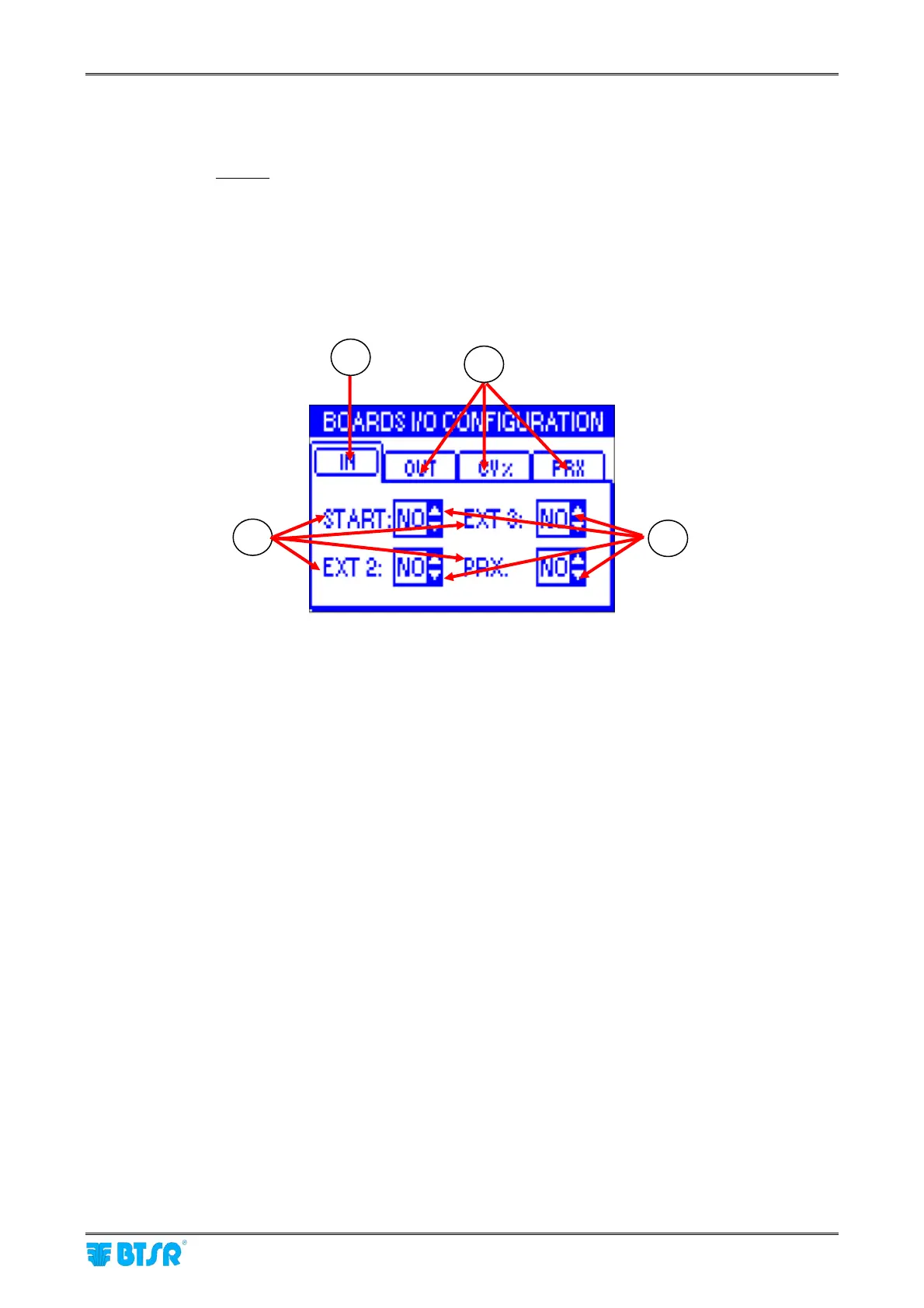

The example refers to the Input/Output Configuration function on SM-DIN/SMART MATRIX, which makes
use of 4 windows (IN, OUT, CV %, PRX).
1 - Name (label) of currently selected window (foreground)
2 - Names (labels) of non-selected windows (hidden)
3 - Name of fields within the currently selected window
4 - Field values
1
2
3
4
