btsr WINDINGFEEDER - Electrical Interface and Connections

Technical Data and Installation
- 2.2 - WINDINGFEEDER
SMART MATRIX FEEDER Terminal
Power supply voltage
24 VDC ± 10%
Maximum absorption
100 mA
Dimensions
140 x 80 x 31 mm
Operating temperature range
10° - 60 °C
Storage temperature
-25° - +85° C
LCD graphic display
80 x 40 mm
Integrated Touch-pad
6 buttons + rotary selector
Protection
2 fuses – 1.5A

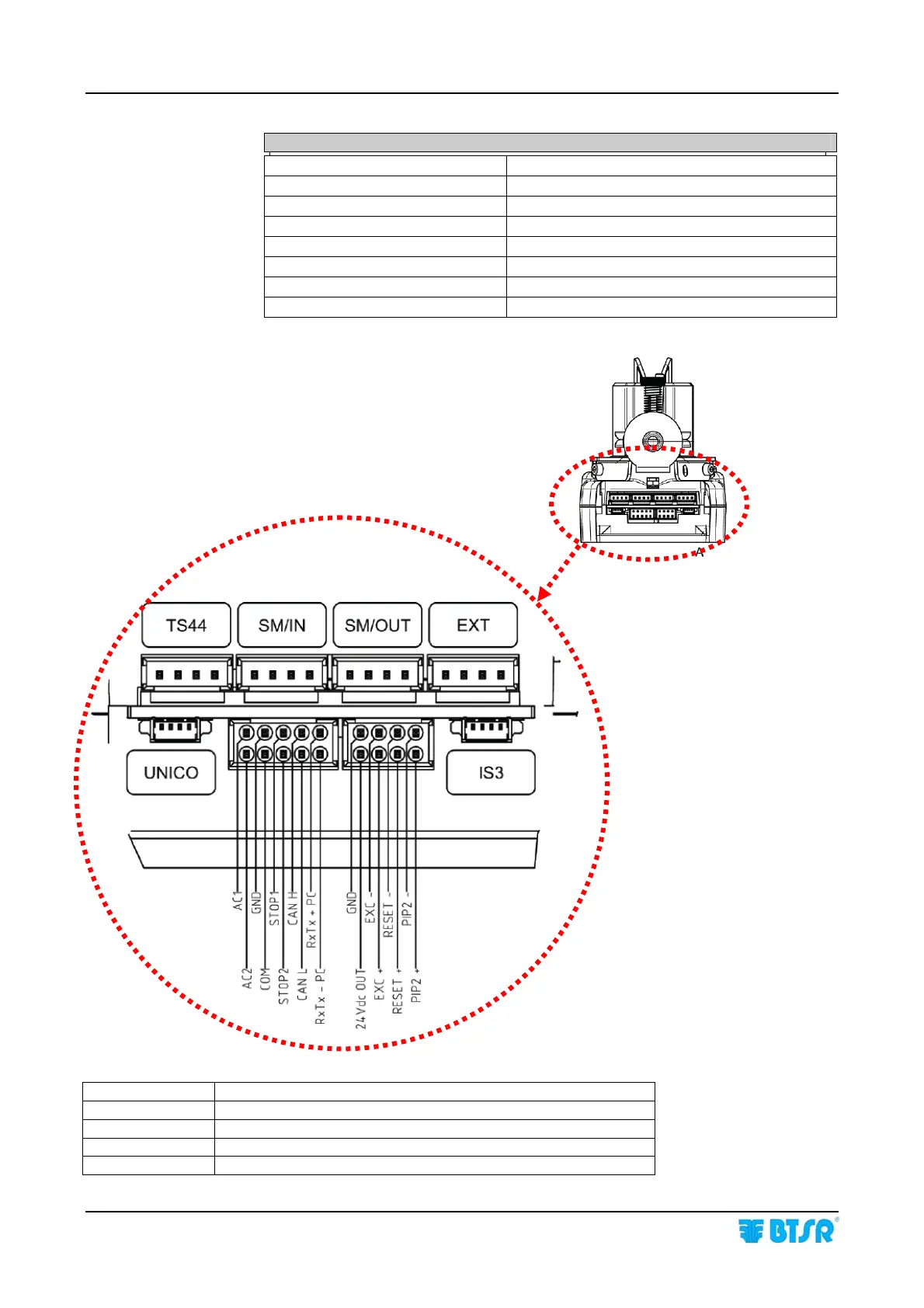

Electrical Interface of WINDINGFEEDER Devices
TS44 Connector for TS44.. tension sensor connection
SM/IN - SN/OUT Connectors for WINDINGFEEDER device daisy chain connection
Ext Connector available for future expansions
UNICO Connector for intelligent accessory connection
IS3 Connector for IS3.. yarn image sensor connection
