Technical Data and Installation
WINDINGFEEDER - 2.7 -

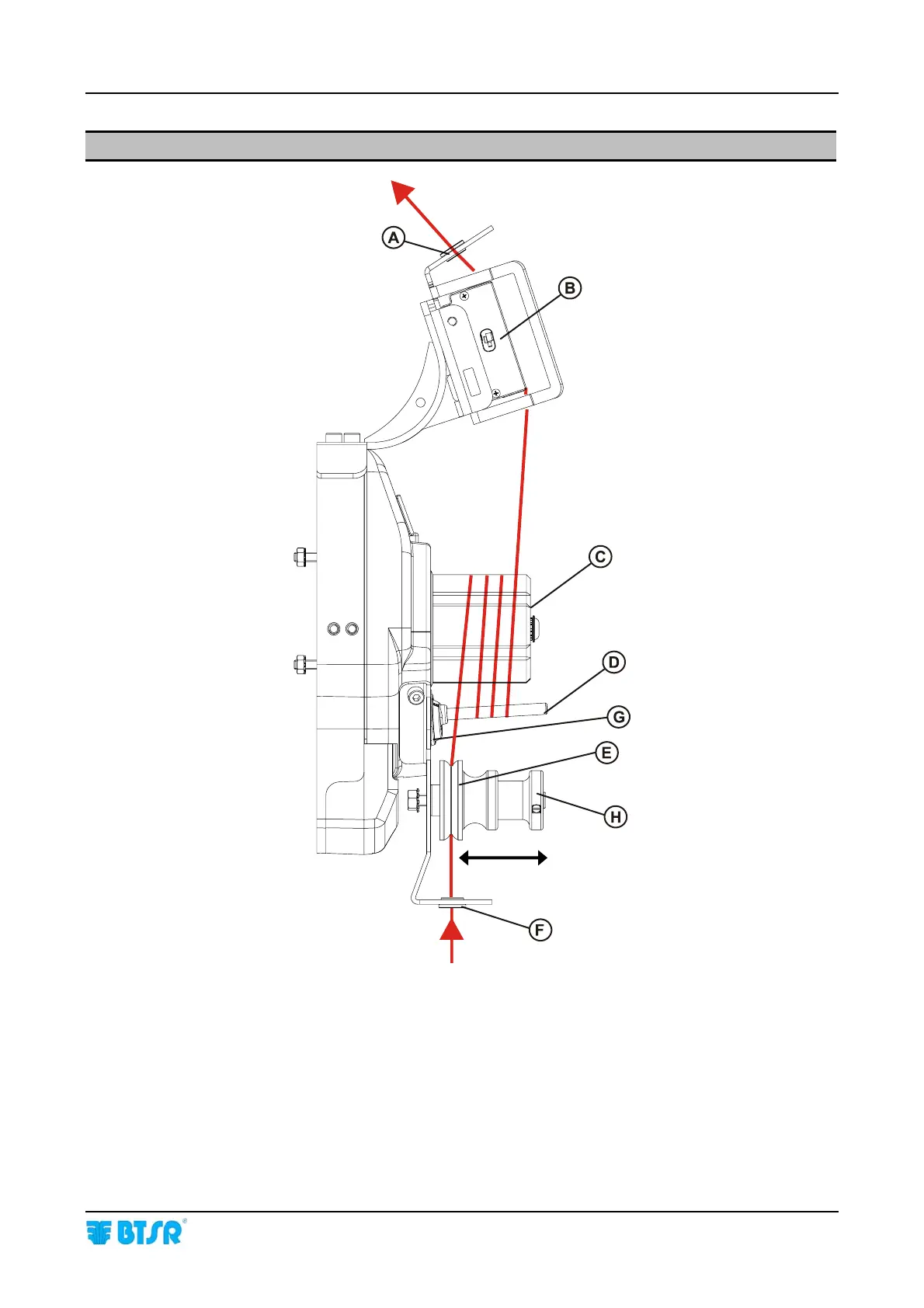

Instructions for Correct Yarn Threading
Thread the yarn inside the lower buckle
, thread it inside the yarn-brake
, then make nn coils around the
roller
, passing beneath the separation element
, as shown on the figure above.
Set the yarn over the loading cell of TS44 sensor
and thread it out of the upper buckle
.
For correct separation of yarn coils on the coil separation element
, slightly tilt the separation device,
while the WINDINGFEEDER is running, turning the adjustment screw
.
To adjust the yarn-brake pressure, set the adjustment wheel
:
Push the adjustment wheel towards the yarn-brake to increase the braking effect (+).
Move away the adjustment from the yarn-brake to decrease the braking effect (-)
+
-
