Technical Data and Installation
- 2.6 - WINDINGFEEDER

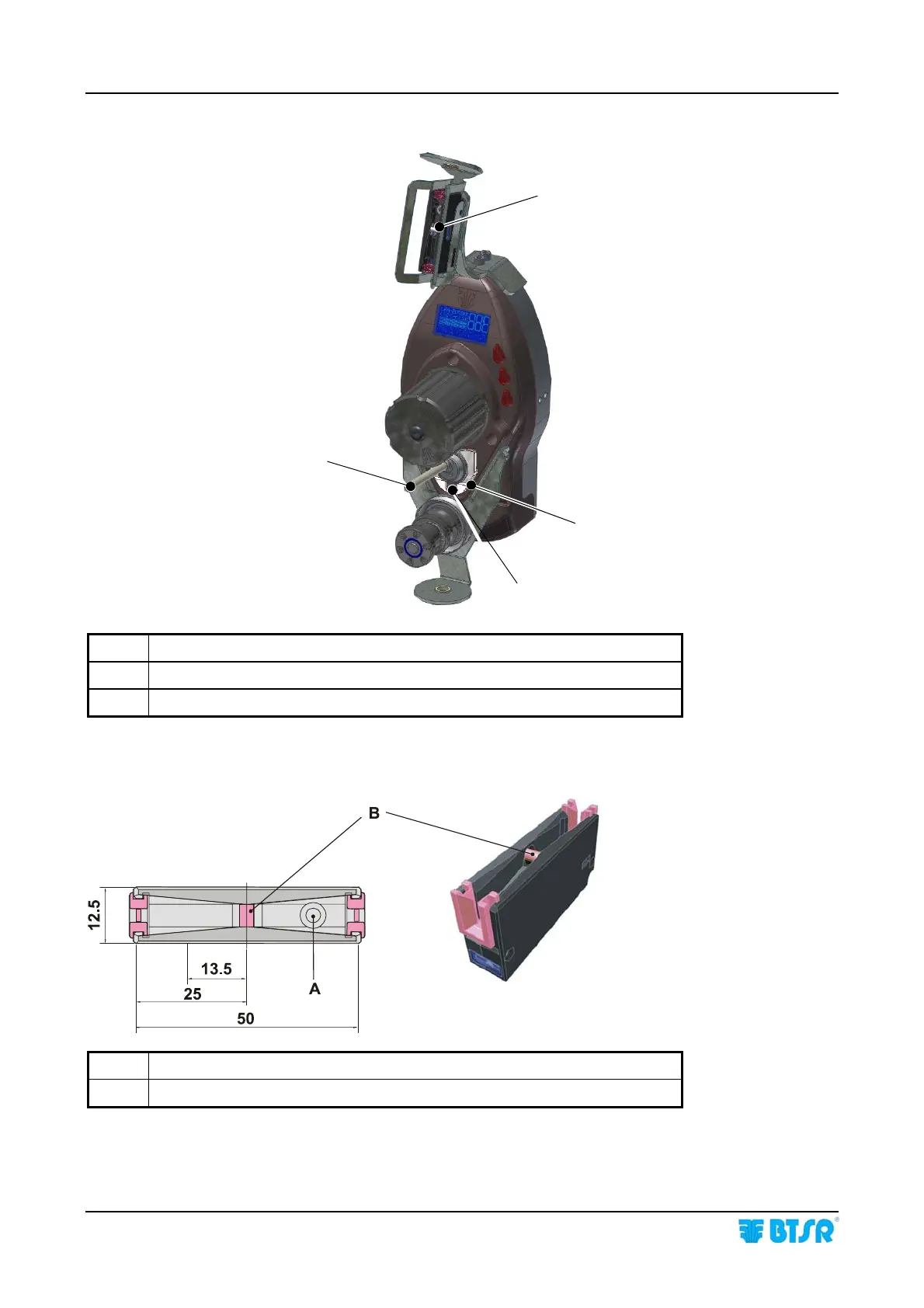

WINDINGFEEDER Unit
A
Ceramic element for coil separation – ø 5
B
Allen screw for ceramic element inclination adjustment
C
Allen screw for ceramic element eccentric support adjustment
TS44/xxxyRW Tension Sensor
A
Fastening hole with M4 x 20 screw
B
Loading cell (tension sensor)
Note: the TS44.. device may automatically carry out the offset function upon special command issued by
WINDINGFEEDER device (see
OFFSET AUTO parameter on P3 programming level)
A
B
C
TS44
