Technical data
H
T-fitting Saddle Spigot, in plastic
Welding tab with
radius, in stainless
steel
DN300 312 336
DN350 325 348
DN400 340

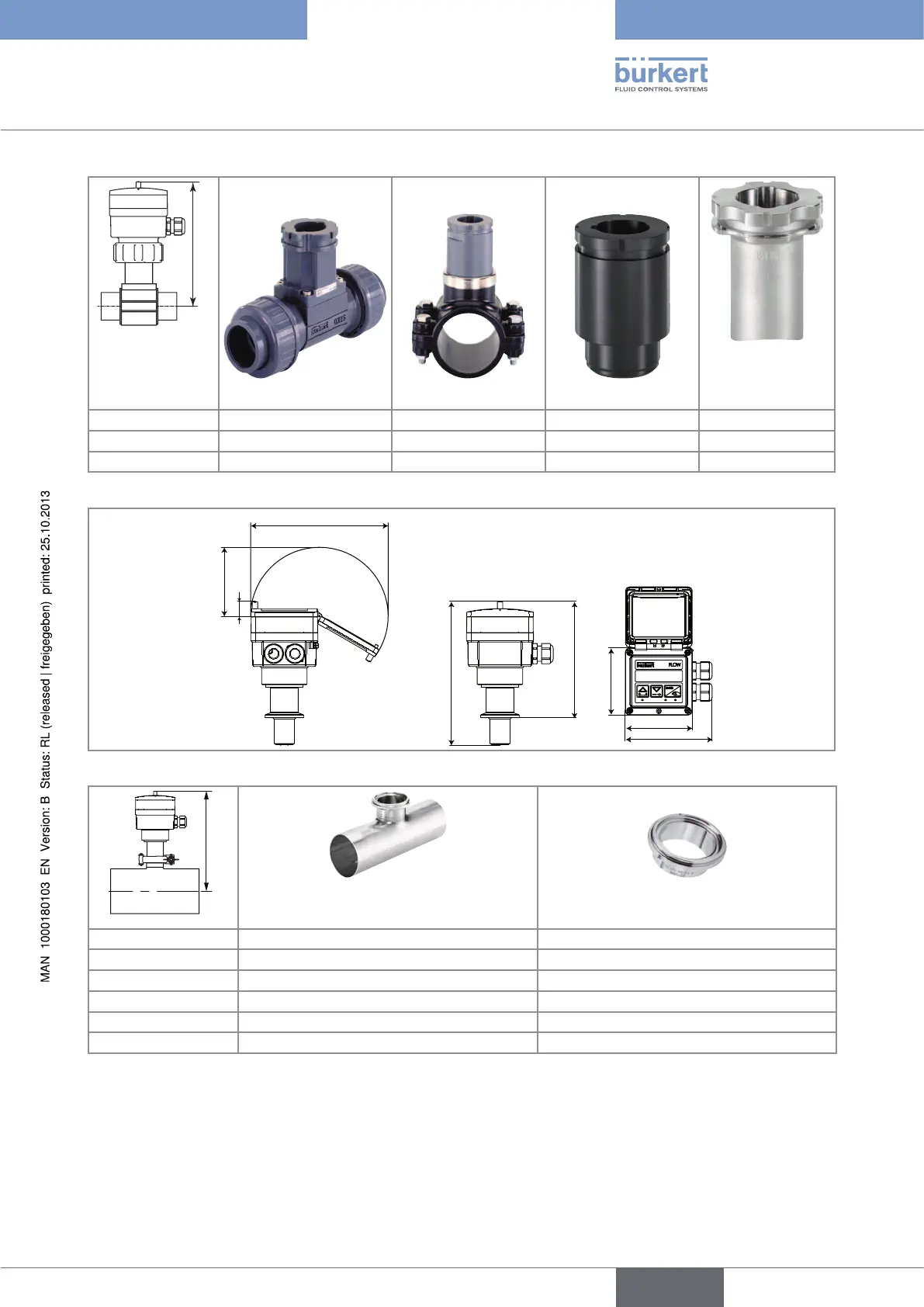

Fig. 3: Dimension H in mm of the flowmeter 8045 with a G2" nut and inserted into an S020 fitting
88
88
116
189
153
180
91
21
Fig. 4: Dimensions of flowmeter 8045 with a clamp connection [mm]
H
T fittings for measuring devices with a
clamp process connection
Welding socket for measuring devices with
a clamp connection
DN32 200 200
DN40 205 205
DN50 210 210
DN65 218 218
DN80 224 224
DN100 230 230
Fig. 5: Dimension H in mm of the flowmeter 8045 with a clamp connection and inserted into an S020 fitting
