Burmester Classic 101 - Back Side

THE DEVICE AT A GLANCE
101 Integrated Amplifier
11

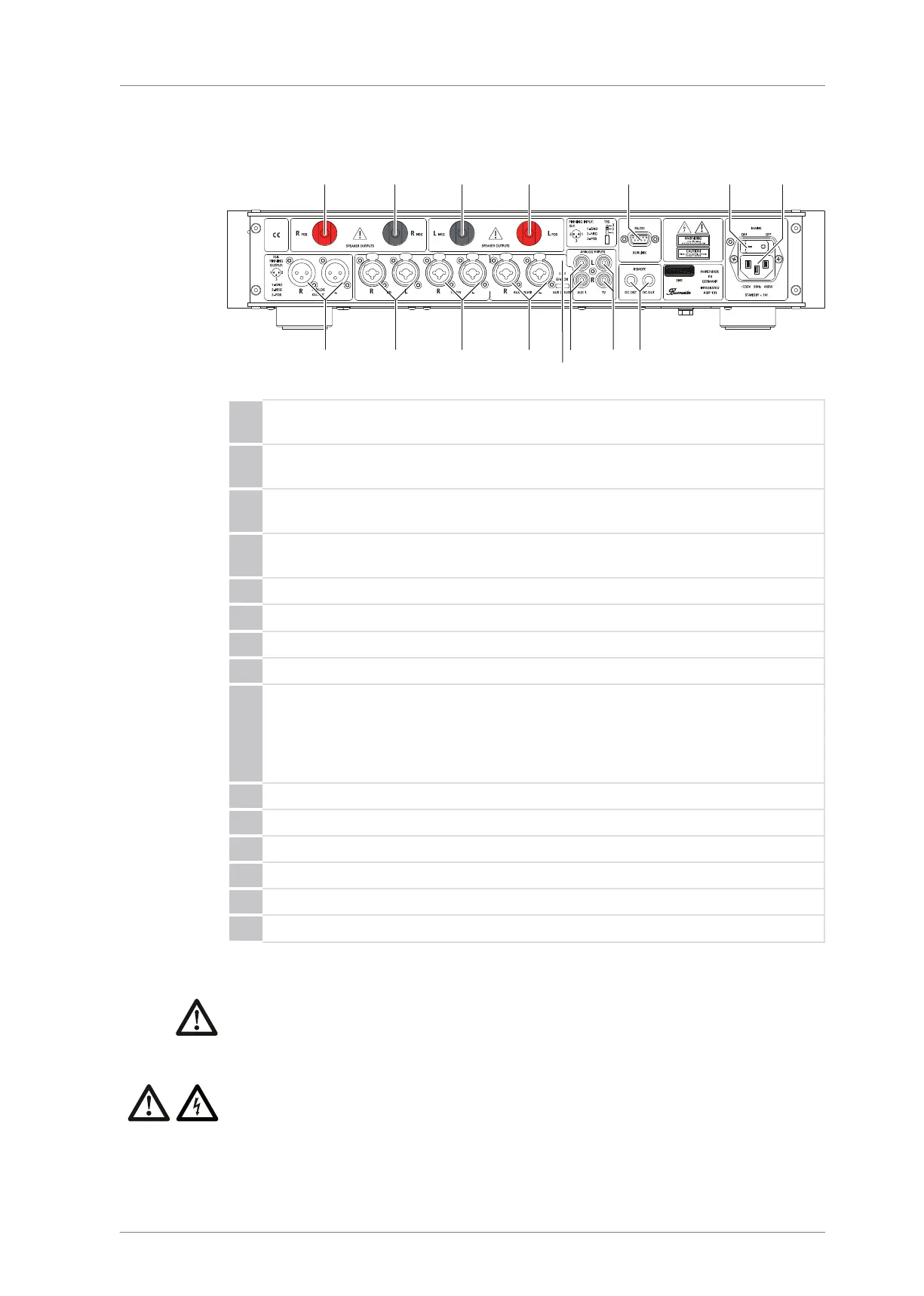

Back side
1510
18 19 20 21 22 23 24
11 12 13 16 17
10 Right speaker output, positive
Right channel, positive connection (+)
11 Right speaker output, negative
Right channel, negative connection (–)
12 Left speaker output, negative
Left channel, negative connection (–)
13 Left speaker output, positive
Left channel, positive connection (+)
14 Surround Thruput Switch
15 BURLINK interface
16 Power switch
17 Mains socket
18 Preamplifier output (pre-out), symmetric
The 101integrated amplifier has a symmetrical preamp output
(ANALOGOUTPUT) for connecting output amplifiers or self-powered speakers.
The signal of the selected input CD, TUNER, AUX1, AUX2, or TV is present at
this output.
19 CD input, symmetric
20 TUNER input, symmetric
21 AUX2 input, symmetric
22 AUX1 input, asymmetric
23 TV input, asymmetric
24 Remote control outputs
This symbol on your device indicates that you can find important information in the
operating instructions.
This symbol combination on your device warns of the danger of electric shock when
opening the device, without pulling the power plug.
14
