Burnham Revolution - Combination Vertical Venting System

26
Vent Carton Part Number 61106012 (Includes items below)
Description Component Part Number
A 4” X 3” Vent Pipe Reducer 8116239
B Combination Vertical Vent Terminal Elbow 8116312
C Combination Vertical Vent Disc Terminal 61106013
D Air Intake Inner Disc 8116230
E Combination Lower Air Intake Adapter 4” 6116050
F Combination Vertical Lower Seal Plate 8110603
G #10 - 32 x ¼ Stainless Steel Machine Screw (4) 80860842
H #10 - 32 Stainless Steel Nut (4) 80860469

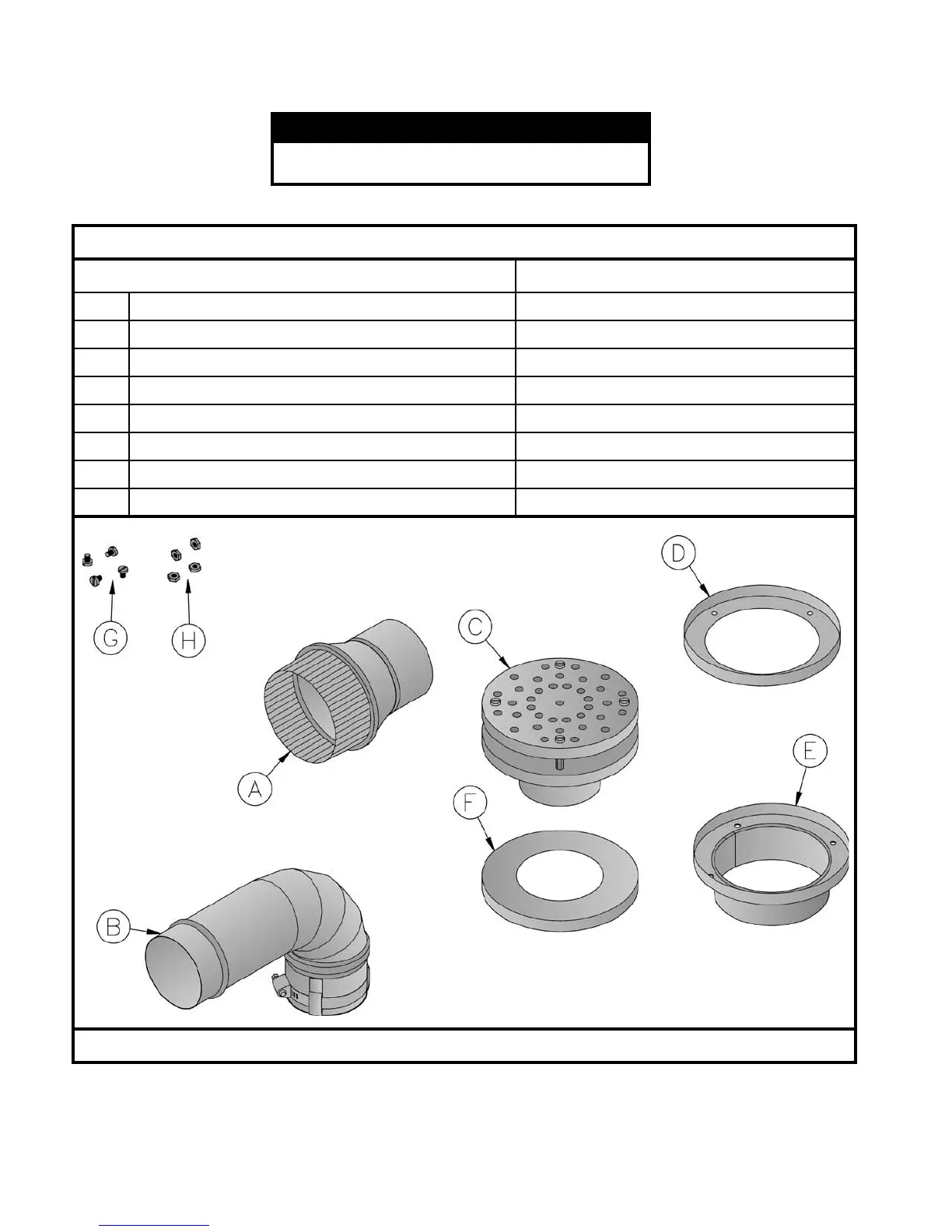

COMBINATION VERTICAL VENT SYSTEM COMPONENTS
I. Combination Vertical Venting System – See Figures 12, 13 and 14.
NOTICE
This vent system requires components not
supplied with the boiler.
