Notice technique ADOUCISSEUR A27-A6X - Manual SOFTENER A27-A6X code P0011144 - Rev 0 - 29/02/2016

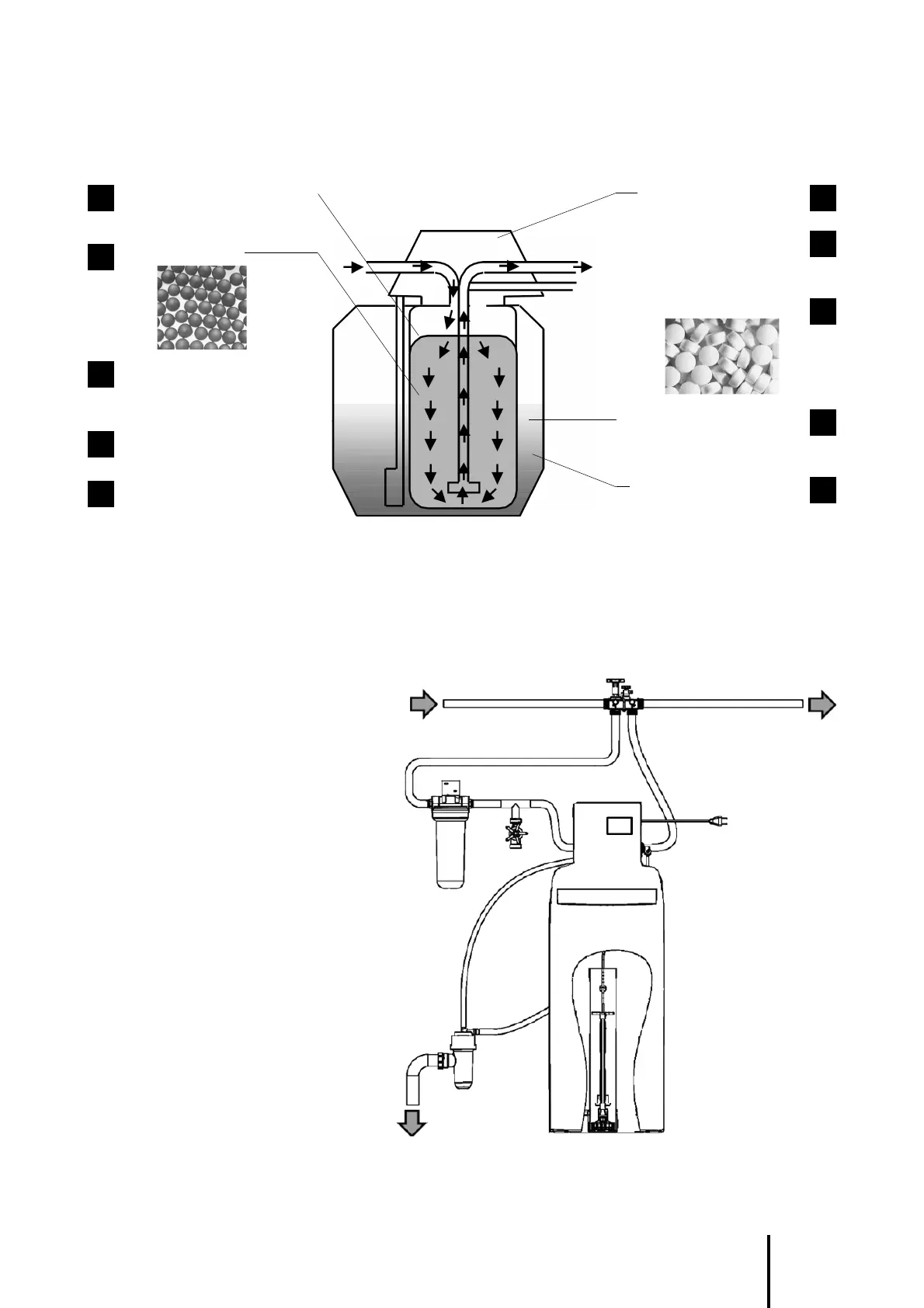

SOFTENER WORKING PRINCIPLE
A softener works as shown in the diagram here below:
Within the treating column
the softening resin
captures the ions Calcium
and Magnesium, responsible
of the hardness,
exchanging them to Sodium.
before sodium misses,
the electronic controller
triggers the regeneration
of the resin
with regenerant salt
stored within the salt tank
and mixed with water to
generate brine.
INSTALLATION – OVERVIEW
The softener installation involves the elements listed and pictured here below. Please refer to the
Scope of Delivery sheet, which specifi es which elements are delivered with your softener.
1. Softener
2. Controller unit
3. Salt tank
4. Salt tank lid
5. Brine valve
6. Power supply
7. Pre-fi lter
8. Drain tube
9. Brining tube
10. Salt tank overfl ow
11. Siphon
12. Bypass
13. In/out fl exibles hoses
14. Tap for gardening usage
It is under the installer’s responsibility to make sure that the installation does not generate any water
hammer which could damage the proper work of the softener. It is highly recommended to connect
the device with fl exible hoses.
1
2
3
4
5
6
7
8
9
10
Drain
Inlet water Outlet water
5
6
7
8
9
10
11
12
1
2
3
4
13
14
