The wave-scan 3 / 3 dual is a portable surface analyzer that measures Orange Peel and the
Distinct of Image (DOI) on high-gloss surfaces. The instrument is controlled by the Operate but-
ton on the front side and the touch-screen display on the top. The Operate button is used to
switch on the instrument and to trigger a measurement. The touch-screen display is used to se-
lect icons and functions directly.
2.1 Delivery Content
The system comes complete with: Measurement unit, docking station, external power supply
unit with power connection line, 2 rechargeable Li-Ion battery packs, 2 USB cables, cover, test
tile, certificate, safety instructions and short instructions.
2.1.1 Transportation Case
1
2
3
4
5
6
7
8

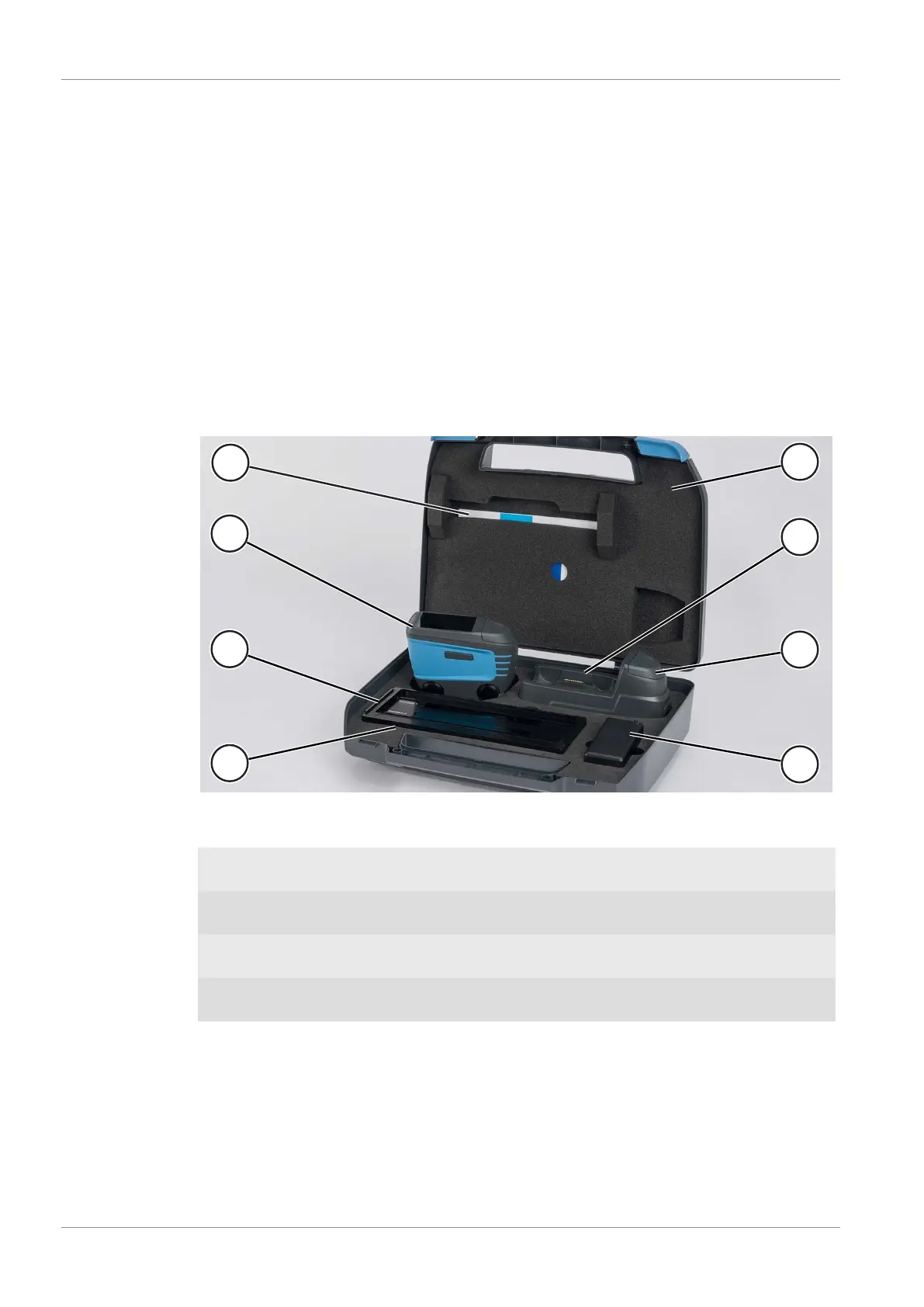

The items listed below are contained in the packaging. Please contact BYK-Gardner if any item
is missing or damaged.
1 Safety instructions, short instructions,
and retraceable certificate
5 Transportation case with padding
2 Measurement unit with protection
cover and rechargeable battery pack #1
6 Docking station
3 Standard plate with cover - includes
checking tiles #1 and #2
7 Internal charger with rechargeable bat-
tery pack #2
4 Below the plate: Hand strap, power ca-
ble and USB interface cable
8 Power supply
