3 | Getting Started BYK-Gardner GmbH

18 wave-scan 3 / wave-scan 3 dual 301 200 085 E 2403

3 Getting Started

Before operating the instrument for the first time, please read the operating manual completely

and take particular notice of the safety instructions. Unpack the instrument and check the deliv-

ery for completeness, see Delivery Content.

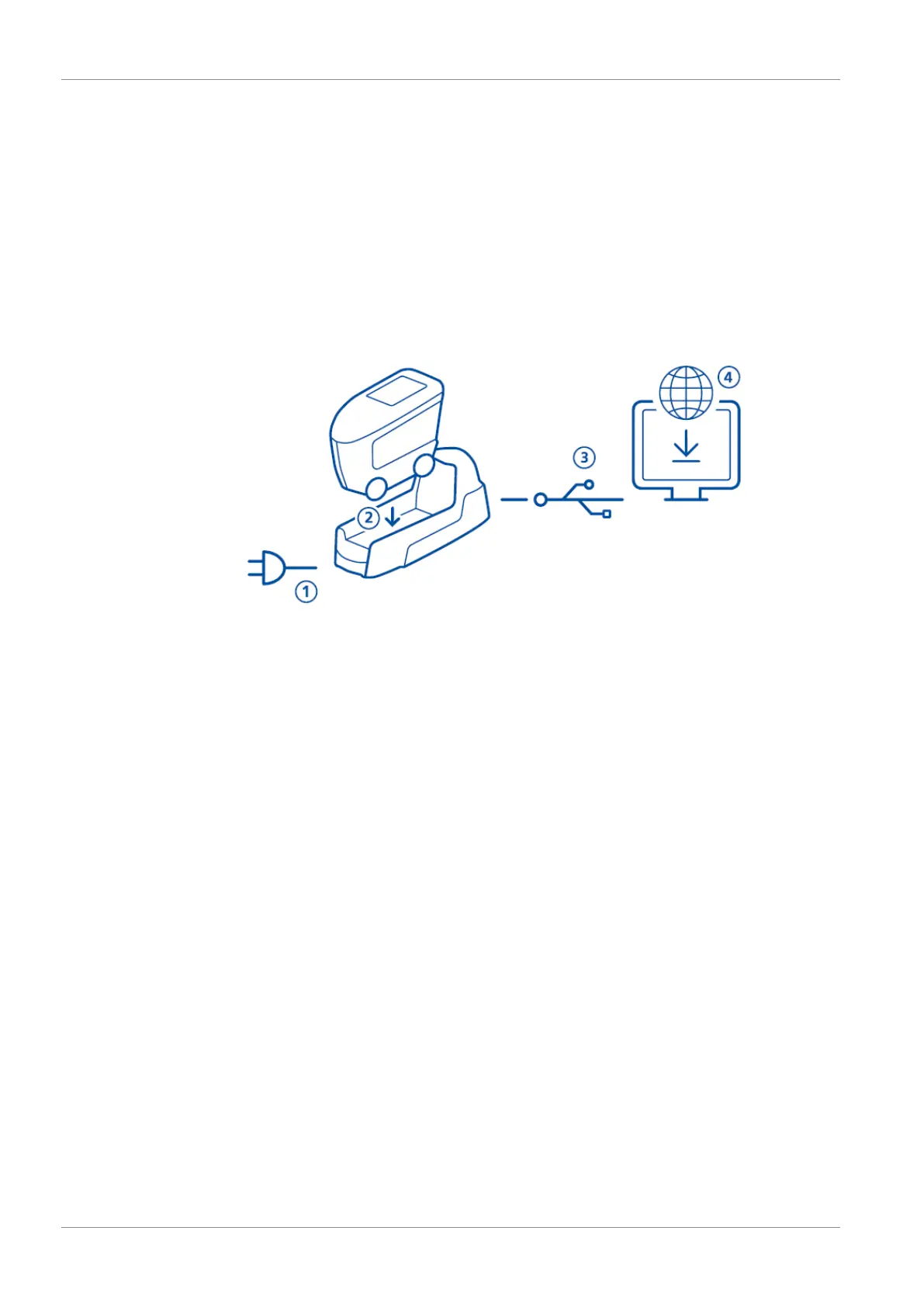

3.1 System Diagram

The entire system consists of instrument, docking station and test tiles and software for data

transfer and analysis.

To assemble the measurement system, place the instrument in the docking station and power

the docking station.

• Connect docking station with power supply (1).

• Power is provided to the instrument by the rechargeable battery pack; charged in the dock-

ing station.

• The delivery comprises a second rechargeable battery pack; you can use one of them while

recharging the other one.

• Place instrument in the docking station (2).

• The docking station automatically charges the battery pack in the docking station and in the

instrument.

• Connect docking station with PC via USB cable (3).

• Download and install the software ”smart-chart” (4).

• Turn instrument on by pressing the Operate button.

The instrument switches off automatically, if not used. To switch it off manually, select Config-

uration > Shutdown.
