2 | Hardware BYK-Gardner GmbH
10 wave-scan 3 ROBOTIC 301 200 141 E 2401
2.2 Mounting Board
A mounting board is required to mount the instrument to the robot arm. This
board is not part of the delivery. A drawing, that contains all dimensions for the
production of the mounting board, is enclosed with each instrument.
1
2
3

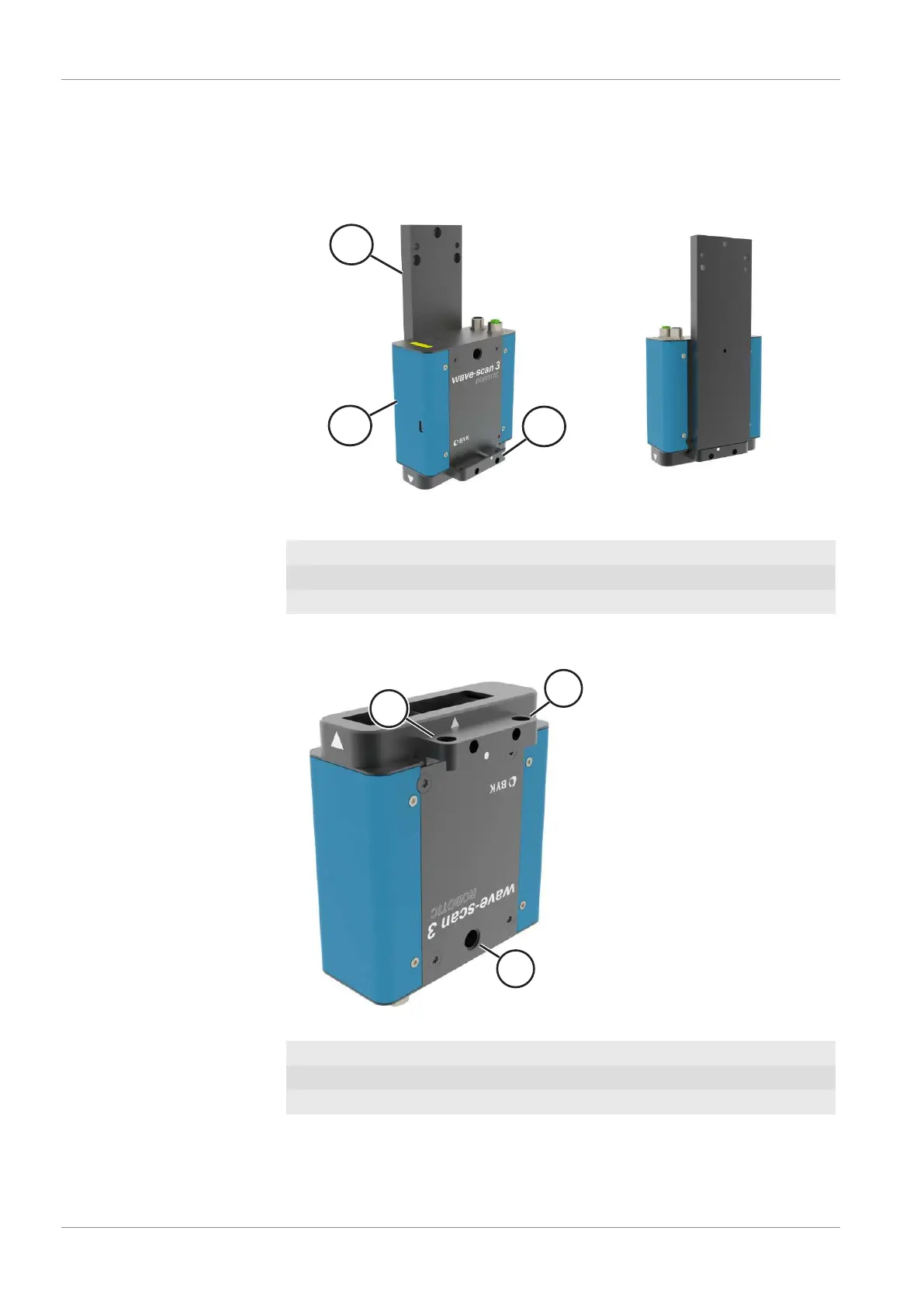

Illustration2: Mounting board with wave-scan 3 ROBOTIC
1 Mounting board
2 Mounted instrument
3 Fixing bar
The measuring instrument is fixed at the mounting board with three screws (part
of the delivery) on the position given below.
1
2
3
Illustration3: Mounting of wave-scan 3 ROBOTIC
1 Mounting position 1 - instrument bottom
2 Mounting position 2 - instrument bottom
3 Mounting position 3 - instrument top
The millings at the fixing bar and a pen matching into the deepening provides for
a distinctive attachment.
During the measurement, a distance of 15 mm ± 2 mm to the surface is to be
kept.
