4.4 Productive System

The instrument is designed to measure in fully automatic mode. Only requirement

is to configure the instrument(s) and the data output interface(s) in smart-robotic.

After successful testing the configuration can be copied from the test system to

the productive system and adapted there.

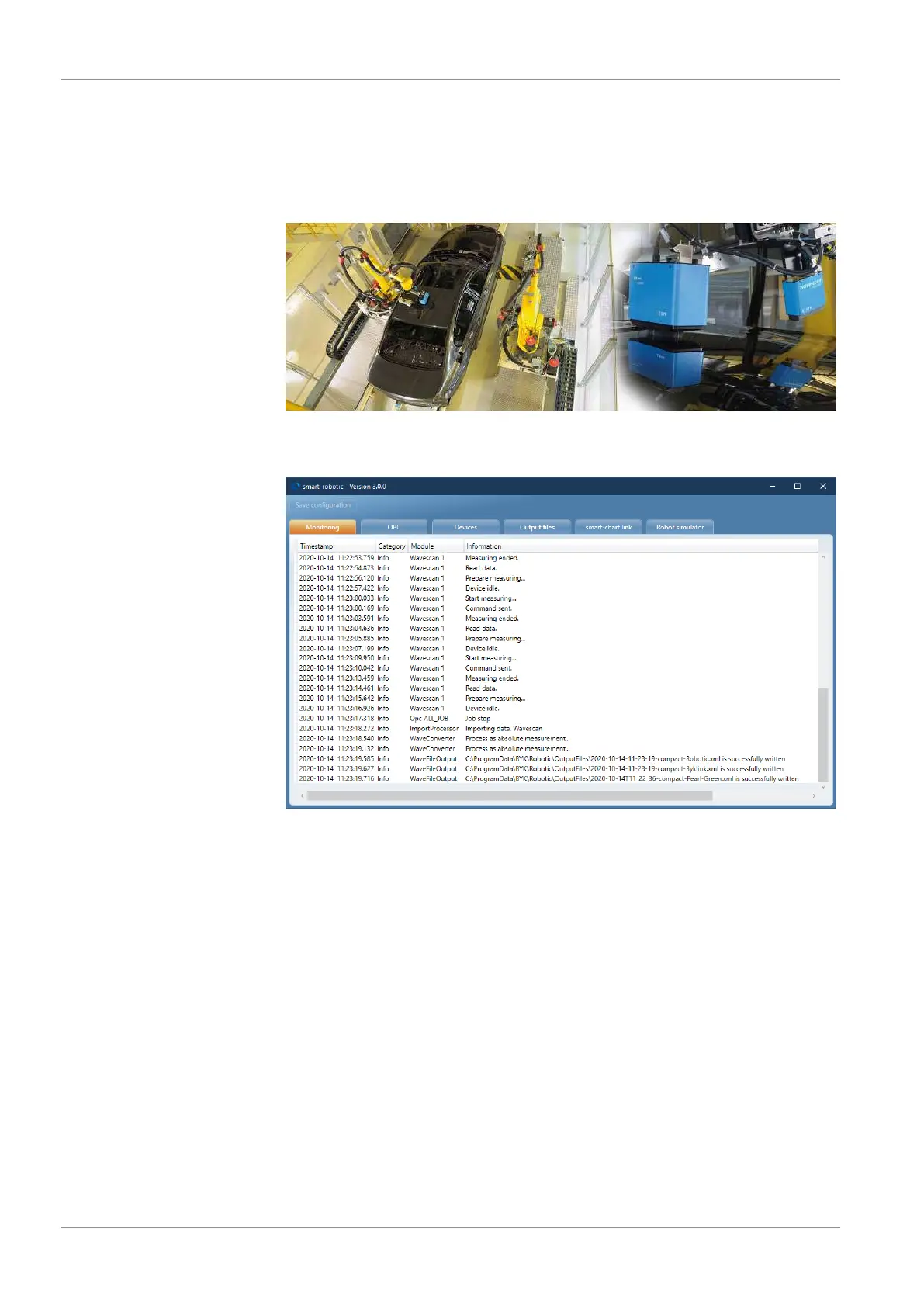

Illustration22: Robot cell with two robots / Robot arm with two instruments

When the robotic instruments are configured and mounted, the measurements

will be done automatically by the robot according to the programming in the PLC.

Illustration23: Monitoring tab in smart-robotic

Only raw data will be measured – no processing and evaluation takes place. This

allows very fast measurements by the robot. To store the measurement results:

• If smart-chart is used, the measurement results will be written into smart-

chart database – according to existing configuration of color standards and

check-zone organizers.

• If smart-chart is not used, the measurement results will be written to files on

disk for external processing and evaluation.

For more details on operation in the productive environment see Operating In-

structions for smart-robotic.
