BYK wave-scan 3 Operating Manual

BYK-Gardner GmbH Cabling | 3
301 200 141 E 2401 wave-scan 3 ROBOTIC 13
3 Cabling
The delivery comprises the cables required for initialization and to connect instru-
ment on robot arm with PC:
• Power Cables [}14]
• Data Cables [}16]
• USB Cable [}18]
WARNING!
To avoid instrument damage, only use the cables which are part of the delivery for
connecting the instruments!
3.1 Application Example

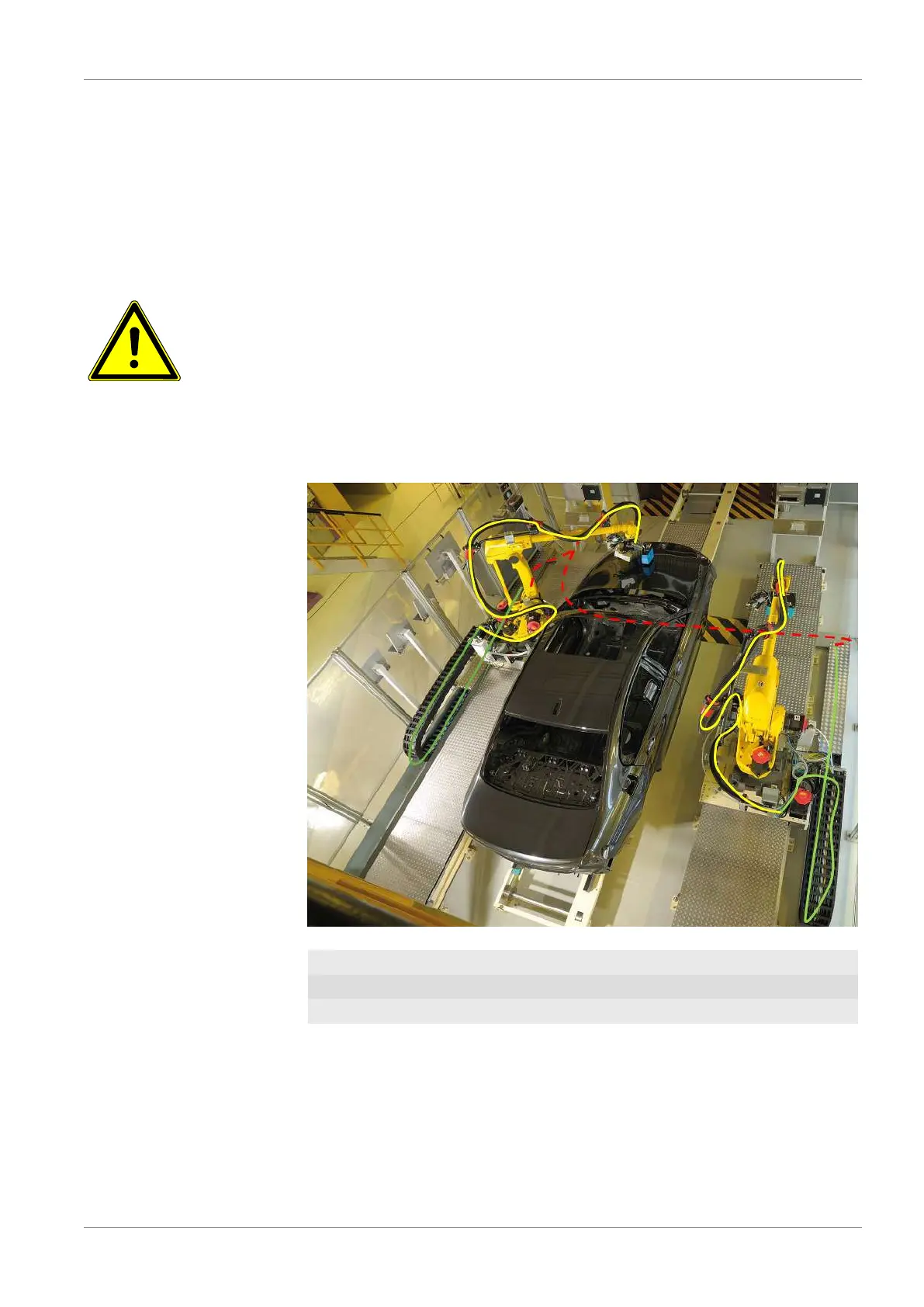

Following picture gives an example how the cables can be placed in a robot cell.
Illustration6: Example cabling in a robot cell
Yellow At robot arm: Torsion capable cable
Green For track chain: Standard cable
Red On the floor: Oil resistant cable
These three types of cables are provided for both power and data interface.
