3.2 Power Cables
The power interface is a black 8-pole plug. The power supply input is 24 V ;
max. 0.75 A.

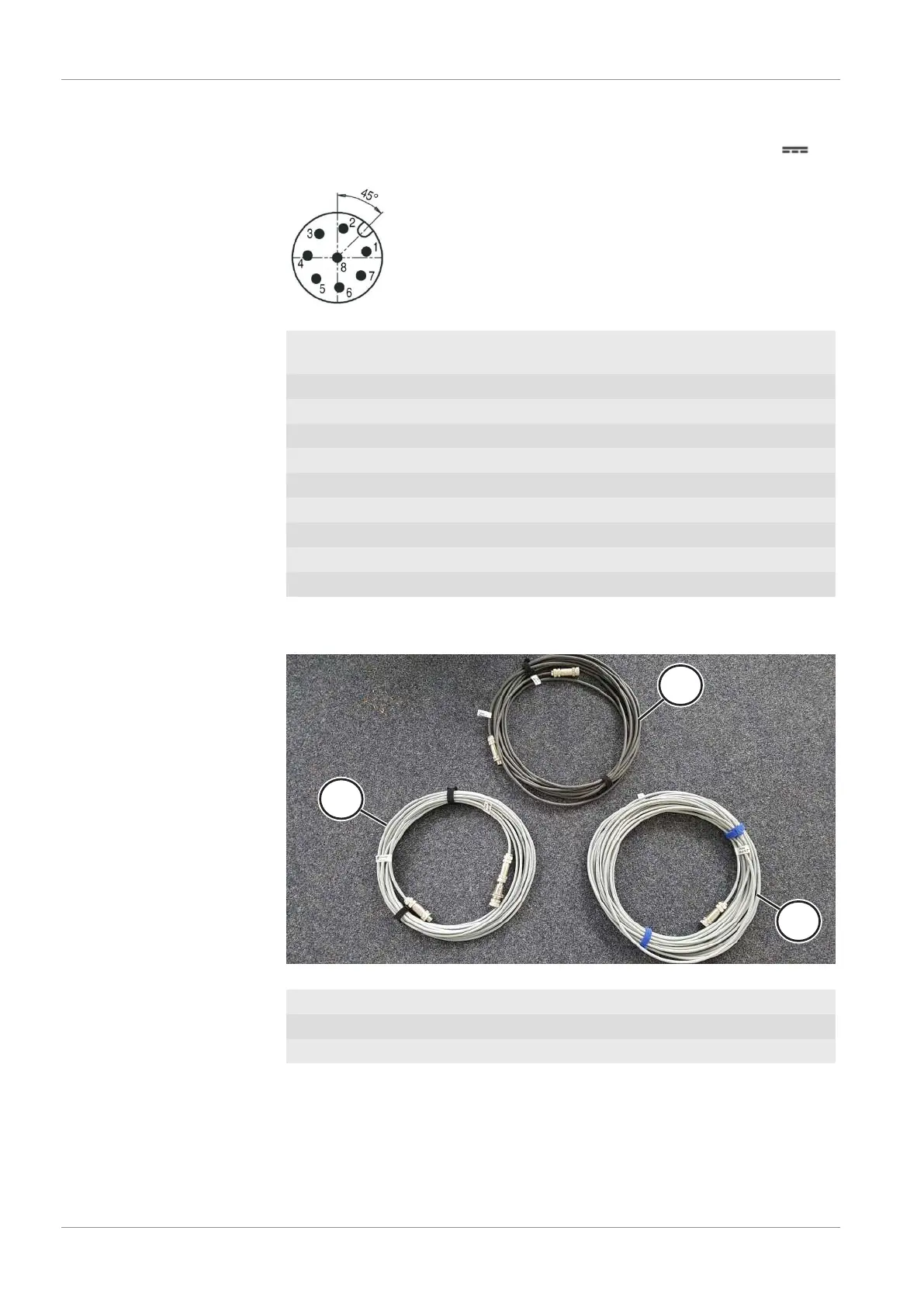

Illustration7: Polarity diagram for pins M12, 8-pin, A-coded, view pen side
No. ROBOTIC
Power
Cable Color
4-pin M12-A
Cable Color
8-pin M12-A
1 V
in
White White
2 V
in
Yellow Yellow
3 NC Green
4 NC Brown
5 NC
6 GND
7 GND Green
8 GND Brown
M1 Shield
Following power cables are in the delivery.
1
2
3
Illustration8: Power cables
1 301 200 143: 8 m for robot - torsion capable
2 301 200 144: 10 m for drag chain
3 301 200 145: 20 m on floor - oil resistant
