BYK wave-scan 3 Operating Manual

BYK-Gardner GmbH Cabling | 3
301 200 141 E 2401 wave-scan 3 ROBOTIC 15
The delivery comprises cables and connectors. If necessary, a coupler can be used
to attach plugs on both sides to the floor. The product “Binder 0952400004” is
recommended.
Lappkabel 0028900 4-wire Lappkabel 0028900 4-wire Lappkabel 0029657 4-wire
Binder
99143281404
4-pol socket M12-A
Binder
99143281404
4-pol socket M12-A
Binder
99148881408
8-pol socket M12-A
Binder
99143181404
4-pol pins M12-A
Binder
99143181404
4-pol pins M12-A
20 m on flor - oil resistant
301 200 145 301 200 144
10 m for track chain
301 200 143
8 m for robot - torsion capable
Binder
0952400004
(coupler, option)

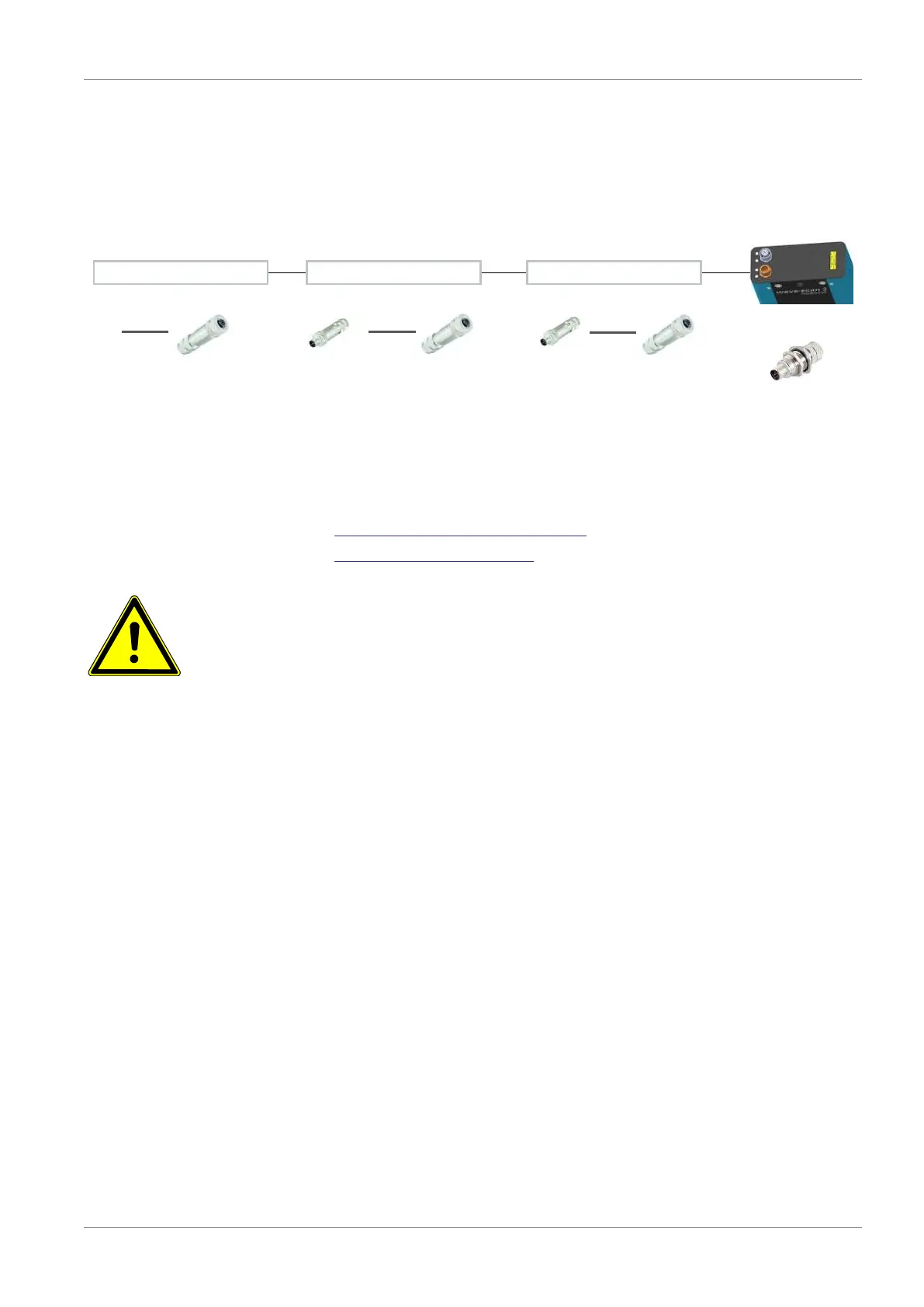

Illustration9: 301 200 142 Power cable complete for 7410
Products from following vendors are used:
• https://www.binder-connector.com
• https://www.lappkabel.com
ATTENTION!
Please heed tension and pin assignment precisely. The instrument can be damaged
without functional connection. No product liability and guarantee claims can be
put forward if the instrument is not properly power supplied.
