BYK wave-scan 3 Operating Manual

BYK-Gardner GmbH Operation | 4
301 200 141 E 2401 wave-scan 3 ROBOTIC 23
4.3.3 Device Test
With USB connection and power supply the device can be tested. During the test a
measurement is performed. The wave-scan ROBOTIC performs a non-contact
measurement. A possible test setup is shown below.
1
2
3
4
5

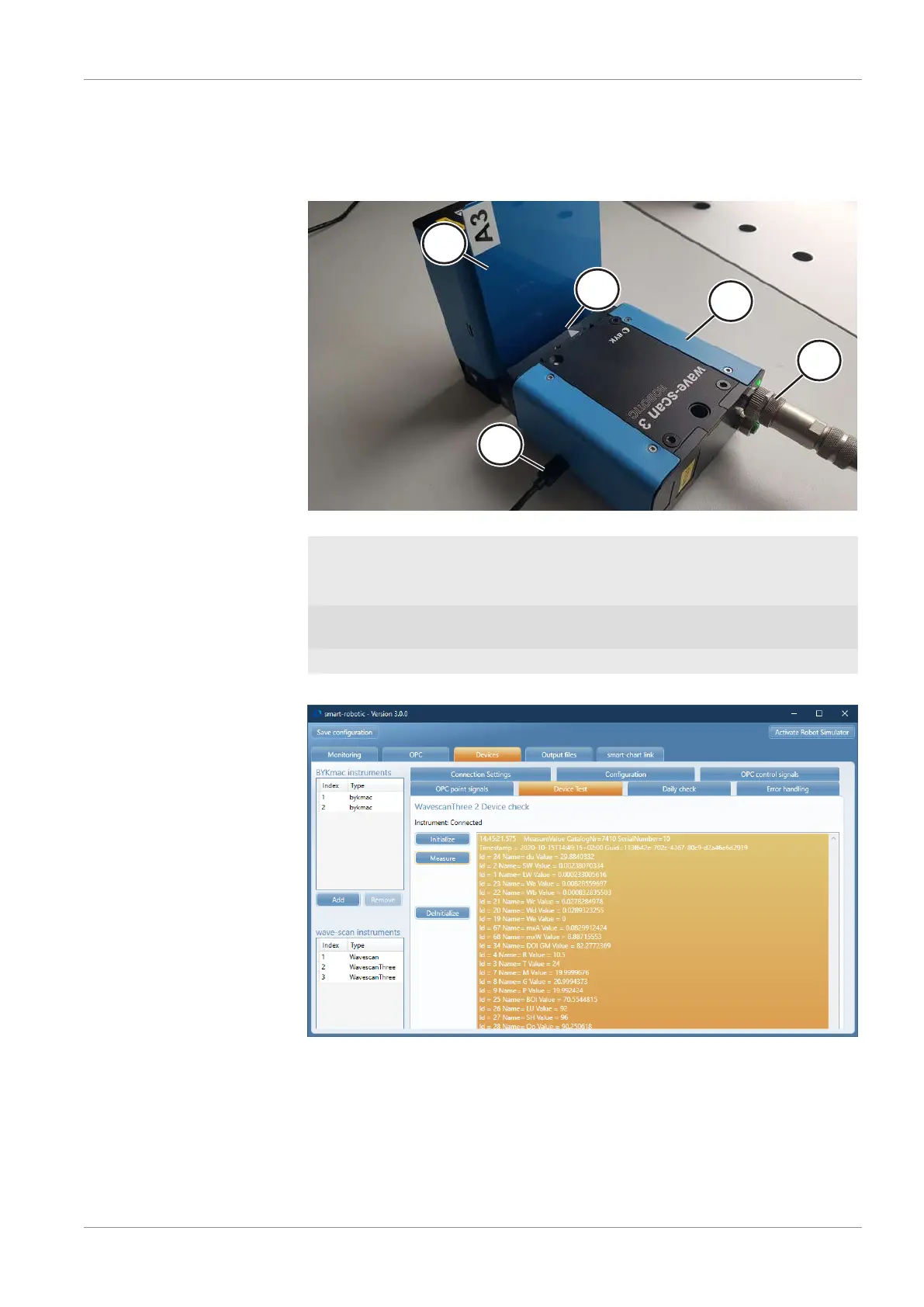

Illustration20: Setup for device test
1 Sample to be measured 2 Measurement distance: Max. 15
mm
Measurement angel: Max. 2°
3 Instrument
wave-scan 3 ROBOTIC
4 Power cable
5 USB cable
Go to the tab Device Test.
Illustration21: Device test in smart-robotic
Perform following steps:
1. Initialize: Load device driver.
2. Measure: Get measurement data.
3. De-Initialize: Unload device driver.
With static sample only the dullness can be measured. To measure the values for
the wavelength slowly move the sample (or the instrument) during measurement.
