BYK-Gardner GmbH Introduction | 1

301 200 085 E 2403 wave-scan 3 / wave-scan 3 dual 11

1.6 Intended Use

The wave-scan 3 (7403) is designed to measure Orange Peel & Distinctness-of-Image (DOI) on

high-gloss surfaces. The wave-scan 3 dual (7400) includes an additional Infrared Super-Lumi-

nescent Diode (IR-SLED) to support an extended measurement range; it can also measure on

semi-gloss surfaces.

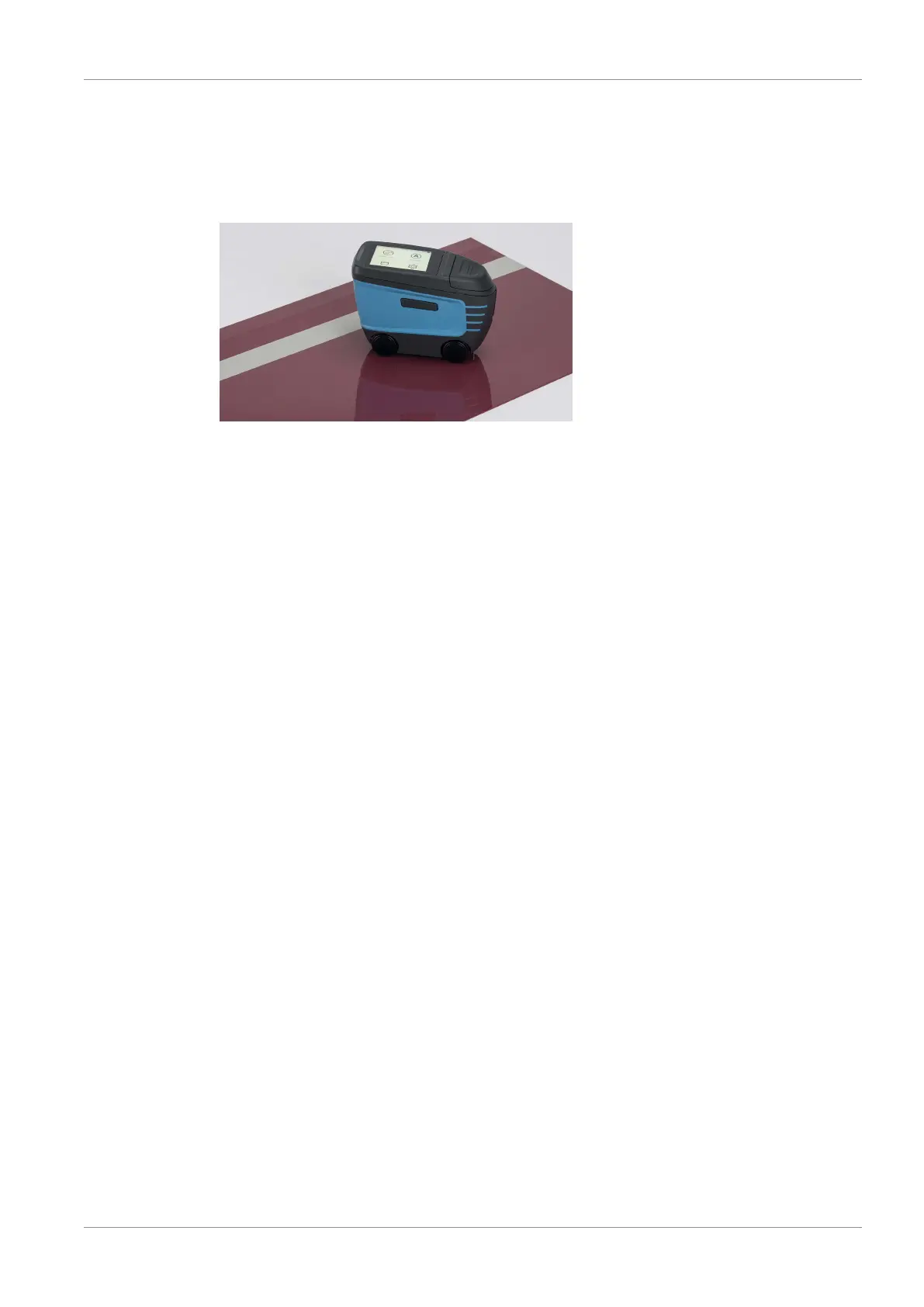

By placing the base plate of the unit onto the surface, pressing the Operate button on the

front and moving the instrument over the surface, it measures the properties of the surface and

processes, stores and displays the measured data.

The instrument can be connected via USB or WiFi to a PC to read or write data. The capacitive

display allows an easy configuration and usage of the instrument.
