BYK-Gardner GmbH System Description | 2
301 200 085 E 2403 wave-scan 3 / wave-scan 3 dual 13
2.1.2 Names and Functions of Parts
The basic system consists of the measurement unit and the docking station. The docking station
is used to exchange data and to charge the rechargeable battery pack.
NOTICE
When the instrument is not in use, place it in the docking station. This way the rechargeable
battery pack will be charged, and the instrument will always be ready for measurements.

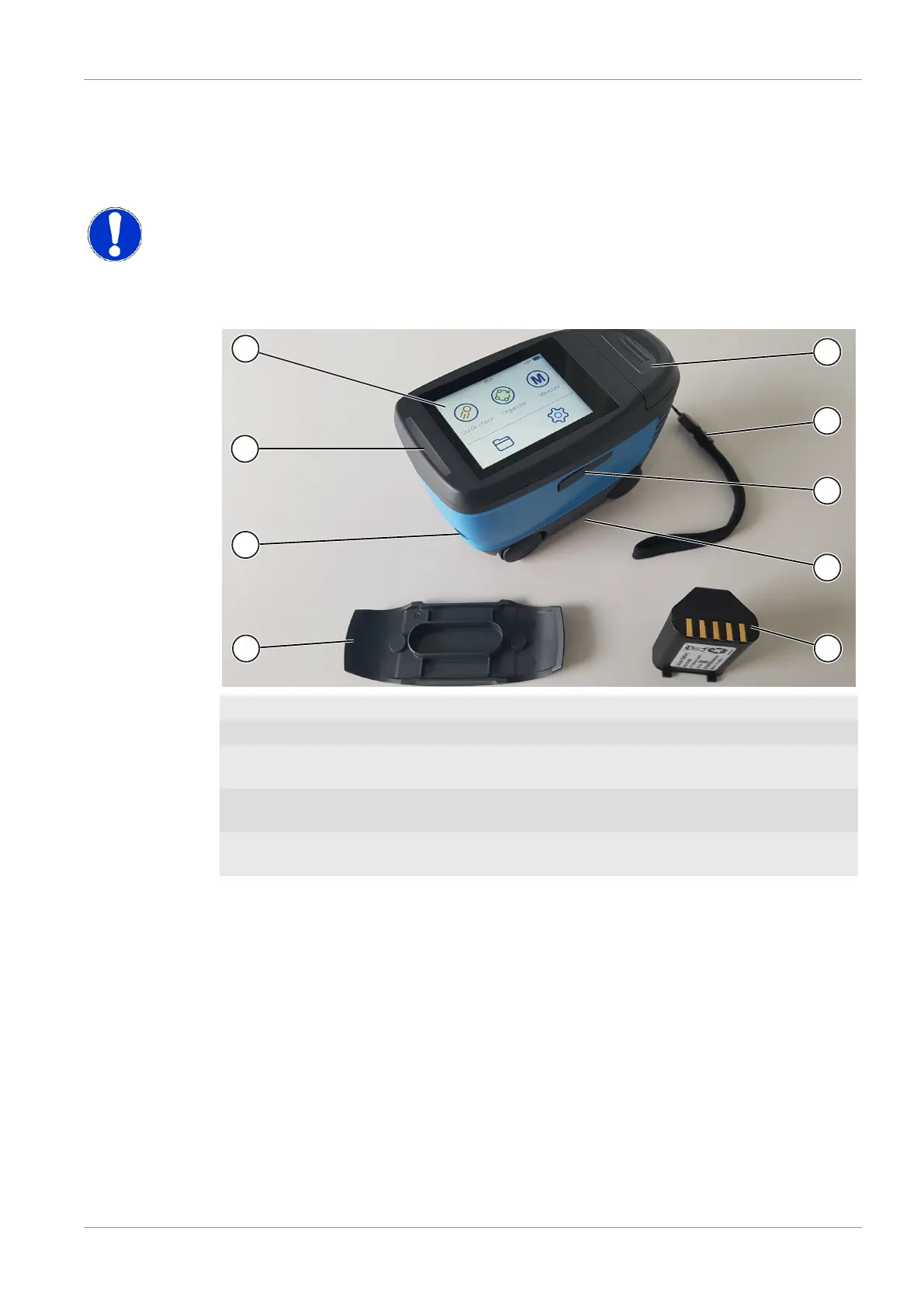

The measurement unit consist of the following parts.
1 Capacitive display 5 Insertion place for primary battery pack
2 Signal LED 6 Hand strap
3 USB connector for data communication 7 Operate button to turn device on /
perform measurements
4 Protection cover 8 Measurement aperture and docking
station connectors
9 Reserve battery pack from docking sta-
tion
The instrument comes with a protection cover. Remove it before operation and attach it after
operation. Also attach the cover before placing the unit in the transport case.
The button Operate and the display are used to control the system. Pressing Operate turns the
unit on and causes the instrument’s dashboard (main menu) to be displayed. All settings within
the menus are made by the display.
In measuring mode pressing the button Operate performs measurements. In configuration
mode it has the same function as the symbol Back.
System operation is supported by an auto-diagnosis test, comments, and error messages. Mea-
surement values and comments appear in the display.
