Direct Connection to 12VDC Power Supply
In the event that the iNetVu™ 5000/7000/9000 Controller experiences system failure, a
direct connection from the Motor Control cable wires to a 12VDC power supply is
required.

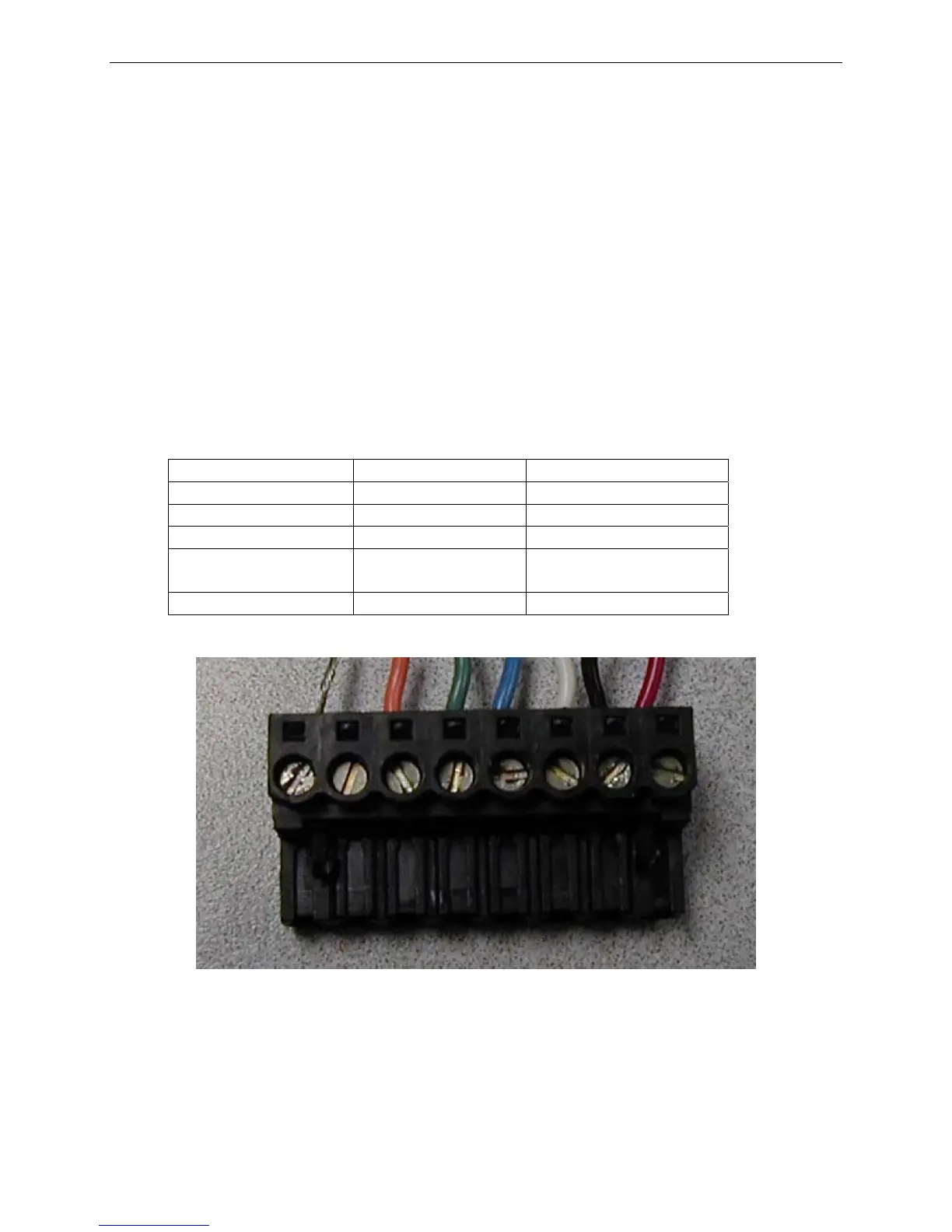

The following is a summary of the wire pairs, the parameter that they control and the
appropriate polarity for moving the motors.
5000 Controller
 Elevation: Red-Black
 Azimuth: White-Blue
 Polarization: Green-Orange/Brown
Elevation UP (-) RED (+) BLACK
Elevation DOWN (+) RED (-) BLACK
Azimuth CW (-) WHITE (+) BLUE
Azimuth CCW (+) WHITE (-) BLUE
Polarization CW (-) GREEN (+)
ORANGE/BROWN
Polarization CCW (+) GREEN (-) ORANGE BROWN
1) Disconnect Motor Control cable from the iNetVu™ 5000 Controller.
