3-2 FlexNet
®
700 Series Line Extender Rev F
3

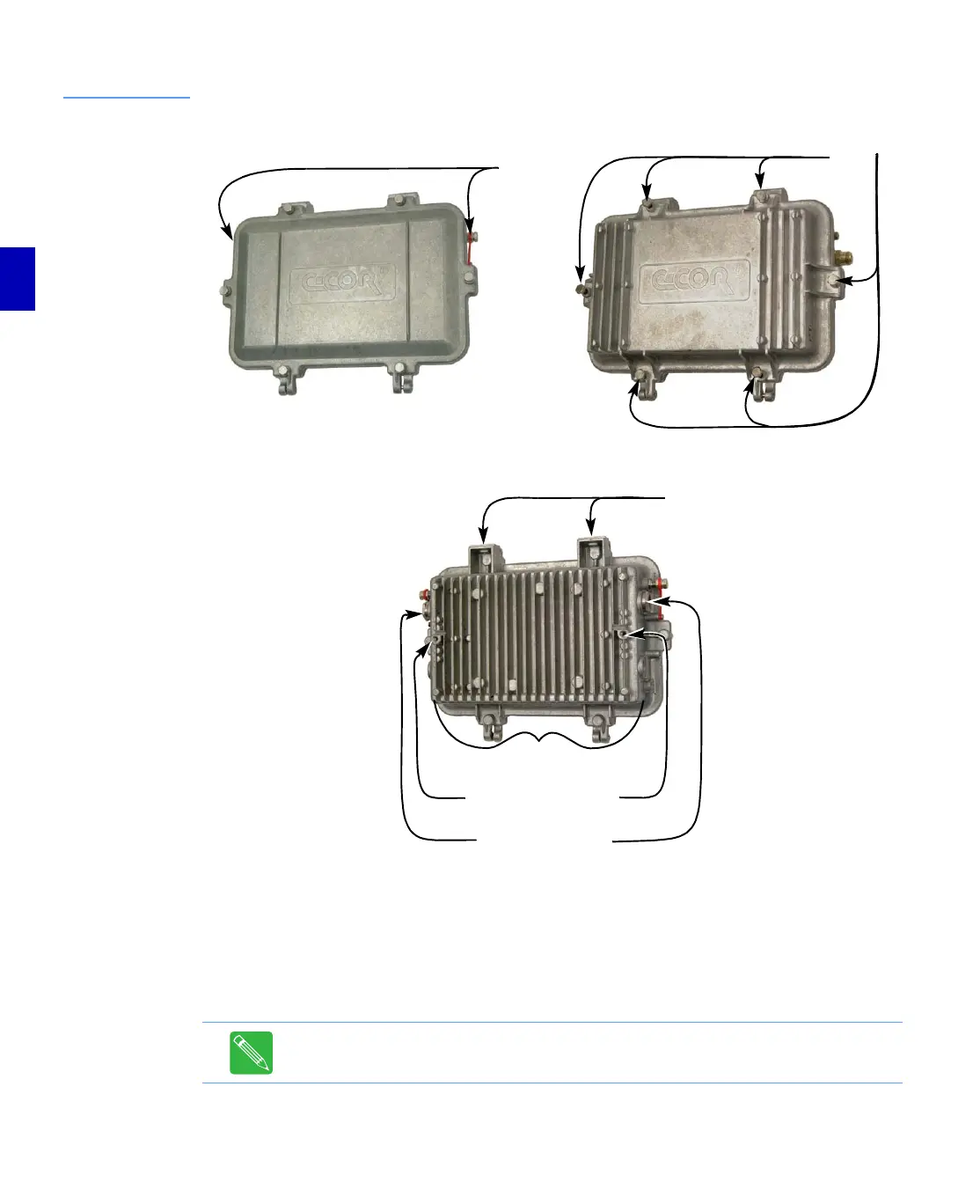

Figure 3.1
Housing Inspection
(Outside)
3. Open the housing (instructions in Housing Opening on page 3-4).
4. Inspect the inside of the housing:
a. Inspect the rubber gasket on the housing base.
b. Inspect the metal mesh gasket on the lid.
c. Be certain the gaskets are well seated and unbroken.
Note: The rubber gasket can be replaced. If the metal mesh is damaged, the housing
must be replaced.
Front View
Flat Lid
Front View
Full Lid
Back View
(Same for both flat and full lid models)
Convection Fins
External
Te stpo in t s
Lid
Bolts
Cable Entry Ports
Strand Mount
Bosses
Wall Mount Bosses
To Next Page
