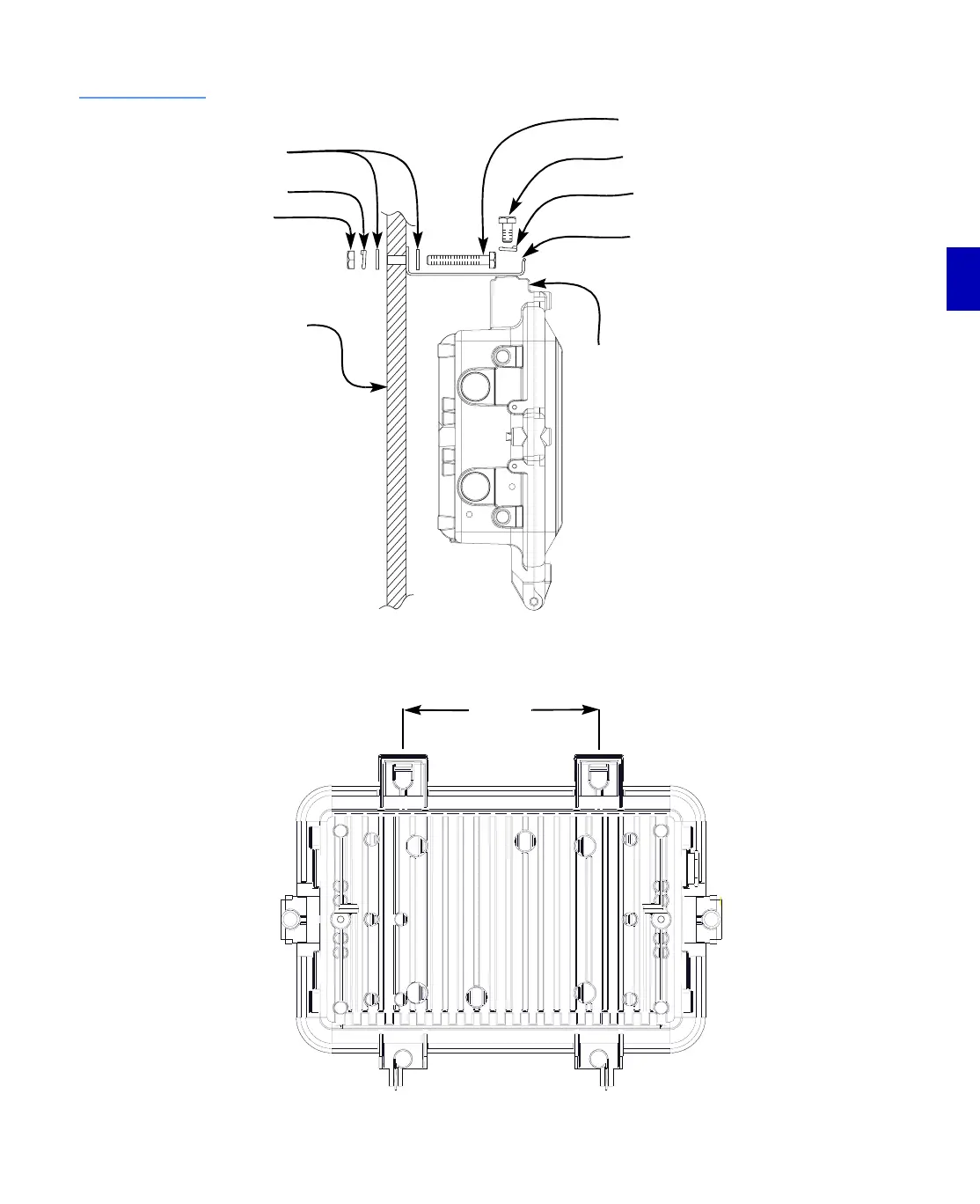

Figure 3.7
Wall Mounting with
EMBs
Wall
Mounting
Bolt
Top Strand
Clamp Boss
Extension Mounting Bracket
1/2-inch
EMB Bolt
3.2-inch (8cm) EMB (P/N 172187-01)
6-inch (15cm) EMB (P/N 172187-03)
Lock
Washer
Flat
Washer
Nut
Lock
Washer
5.5 in.
(14.0cm)
Top Strand Clamp Bosses
