C-more micro EA1-S6ML User Manual

User Constructed Cables – Wiring Diagrams (cont’d)
Diagram 11
Diagram 12
6–31
Chapter 6: PLC Communications
6
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
®
Modicon™ ModBus™ with RJ45
RS-232C
8 = do not use
7 = do not use
6 = donot use
5 = Logic GND
4 = do not use
3 = RXD (232C)
2 = TXD (232C)
1 = Frame GND
To PLC
RJ45 Port
3
15 = do not use
14 = do not use
13 = do not use
12 = do not use
11 = do not use
10 = do not use
9 = do not use
1
15
15-pin
D-sub
(male)
4
5
TXD
RXD
GND
3
2
5
1
RXD
TXD
shield

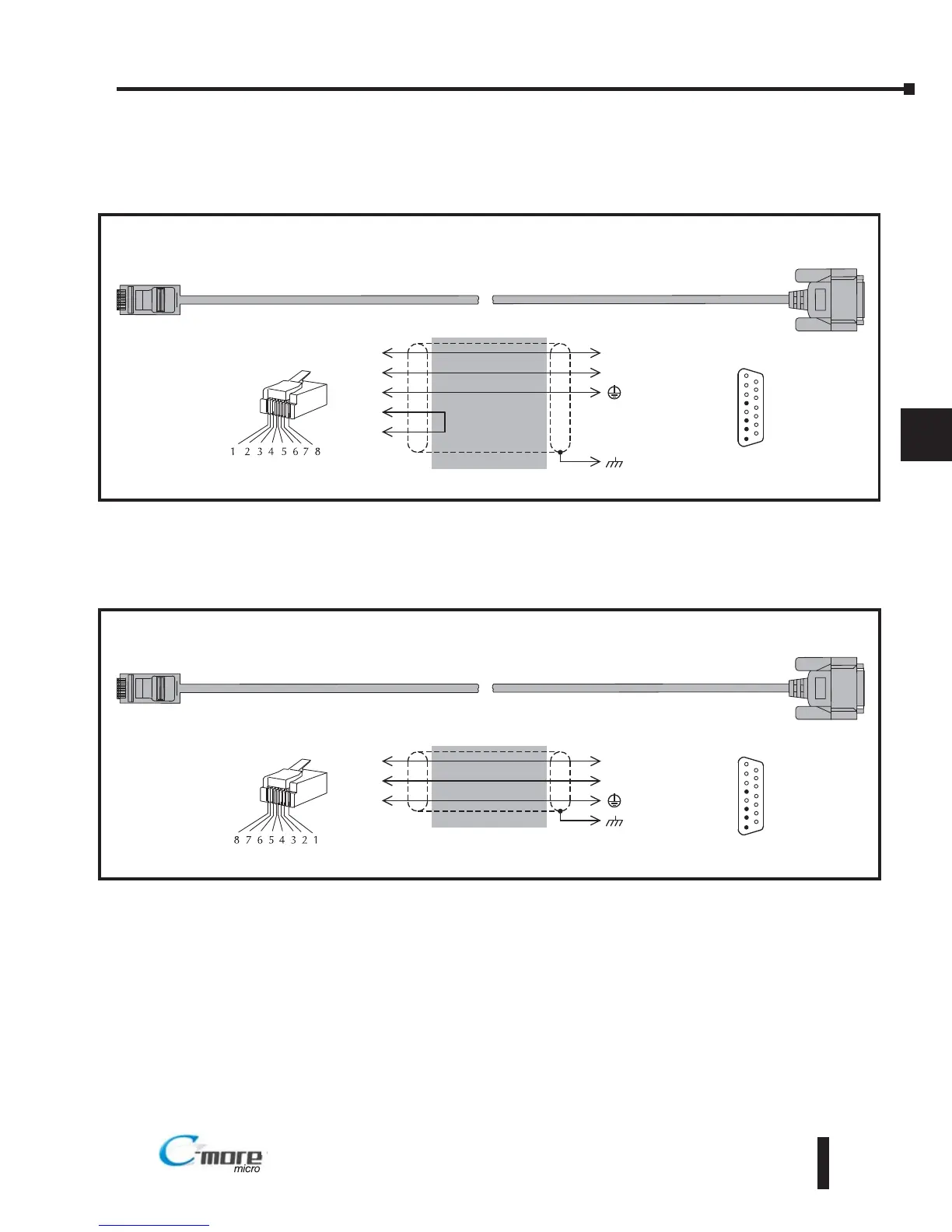

Wiring Diagram
Note: Use the above wiring diagram to make your own cable. We recommend using 22 AWG shielded cable.
6
RTS
7
CTS
1 = do not use
2 = do not use
3 = TXD
4 = RXD
5 = Logic GND
6 = RTS
7 = CTS
8 = do not use
RJ45 8-pin
Phone Plug
(8P8C)
To C-more Micro-Graphic
Serial Port2
User Constructed
GE VersaMax Micro Port 1
RS-232C
8 = do not use
7 = do not use
6 = donot use
5 = Logic GND
4 = do not use
3 = RXD (232C)
2 = TXD (232C)
1 = Frame GND
To PLC
RJ45 Port 1
4
15 = do not use
14 = do not use
13 = do not use
12 = do not use
11 = do not use
10 = do not use
9 = do not use
1
15
15-pin
D-sub
(male)
3
8
TXD
RXD
GND
3
2
5
1
RXD
TXD
shield
Wiring Diagram
Note: Use the above wiring diagram to make your own cable. We recommend using 22 AWG shielded cable.
1 = RTS
2 = CTS
3 = RXD
4 = TXD
5 = DCD
6 = DTR
7 = +5V
8 = GND
RJ45 8-pin
Phone Plug
(8P8C)
To C-more Micro-Graphic
Serial Port2
User Constructed
