4–4
Chapter 4: Installation and Wiring
4
®
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10

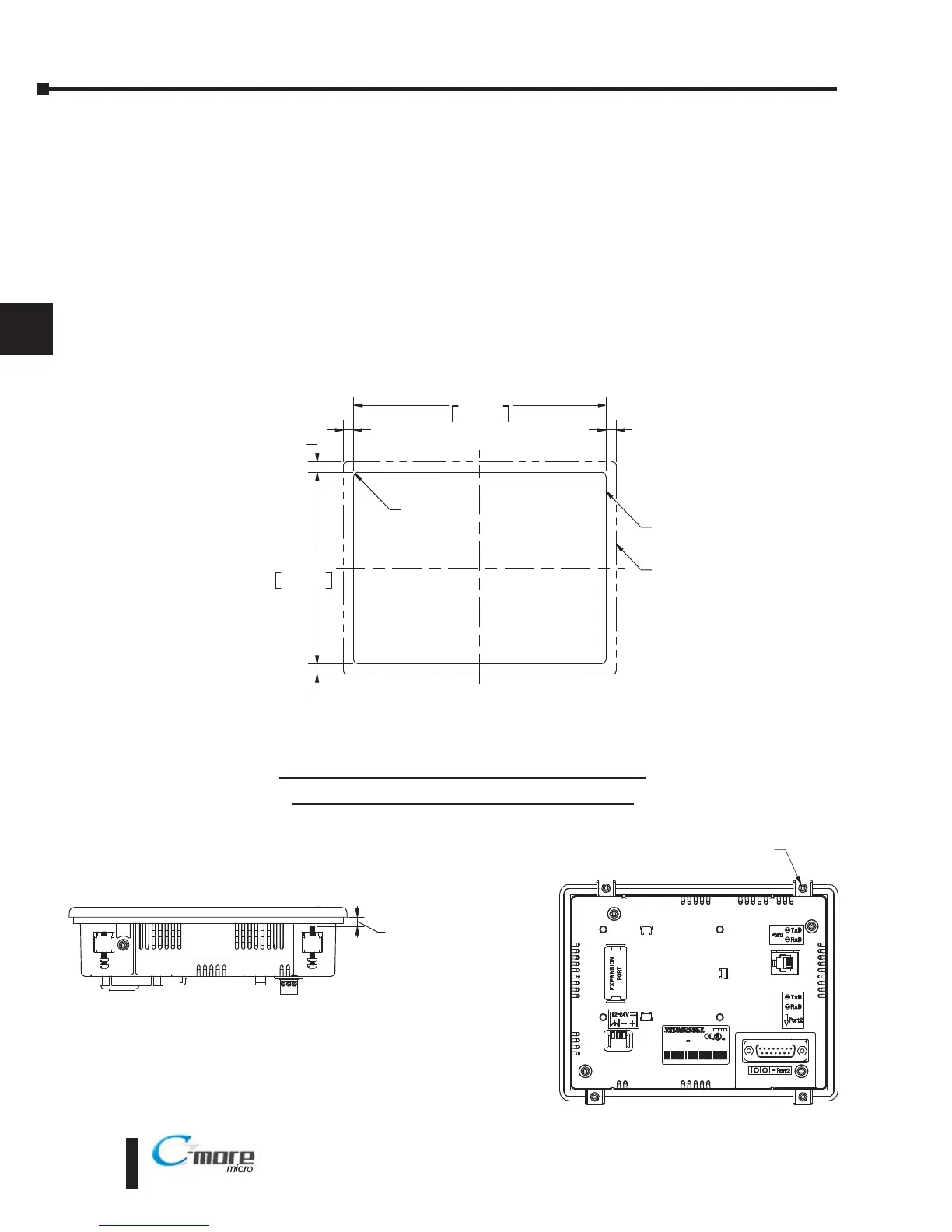

Panel Cutout Dimensions (all models)
The C-more 6” Micro-Graphic panel is mounted into a cutout through the control cabinet and
secured with four (4) mounting clips. The mounting clips are provided with the panel. There
are slots on each side of the panels long dimension that the two tabs on each mounting clip will
match. The mounting clips are held in place by inserting the tabs into the “T” shaped holes
(slots) and then moving the mounting clip toward the rear of the panel to keep it in place. Next
tighten the mounting clip screws to pull the rear of the panels bezel to the control cabinets
mounting surface. The screws need to be tightened to the torque rating shown in the illustration
below so that the gasket is compressed to form the proper seal between the panel and cabinet
surface.
0.260
[6.6]
0.256
[6.5]
0.256
[6.5]
0.260
[6.6]
R .118 [R3]
CUTOUT
CUTOUT
OUTLINE
BEZEL
OUTLINE
122.2
+1
0
+0 04
0 00
4.811
161.0
+1
0
+0 04
0 00
6.339
Enclosure Mounting Thickness Ranges
and Mounting Bracket Screw Torque
S ED
7M 7
D te ode:* **
R0
MADE N CHINA
EA1 S6MLW? 075 015001
W
MODEL EA1 S6M W
INPUT:12 24V 6 5
ND.CONTEQ.
MOUNTING CLIP
SCREW TORQUE RANGE
21 - 28 oz-in [0.15-0.2 Nm]
ENCLOSURE MOUNTING
THICKNESS RANGE
0.04” - 0.2” [1 - 5mm]
