Step 2 – Install Optional Hardware Accessories

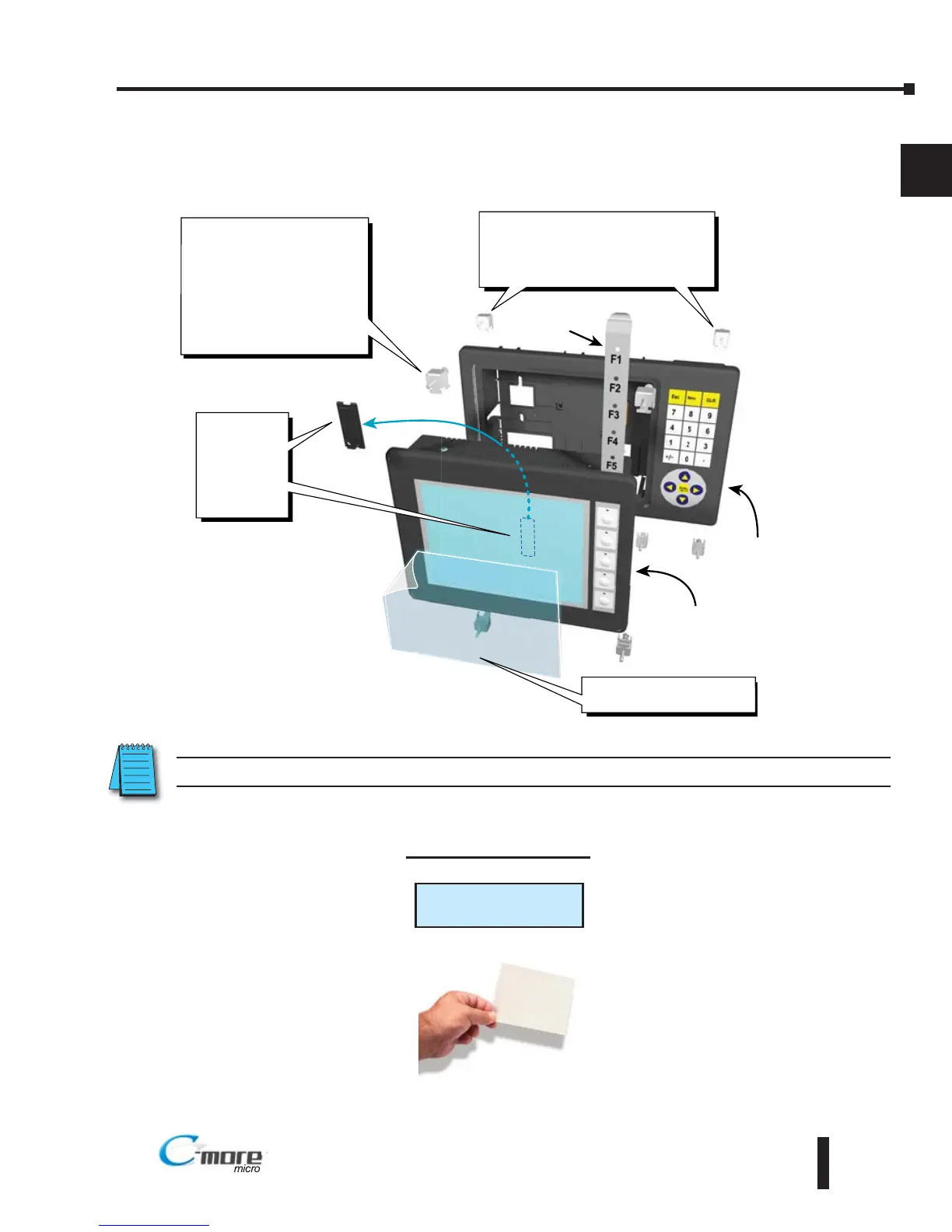

Below is an example of a C-more 6” Micro-Graphic panel being assembled with an optional

EA-MG6-BZ2 20-button Keypad Bezel.

C-more 6 Inch

Micro-Graphic Panel

20 Button

Keypad Bezel

EA MG6 BZ2

1. Remove

Expansion

Connector

Protective

Cover from

rear of

panel.

2. Use the (4) Panel Mounting

Clips, EA-MG-BZ2-BRK,

that are supplied with the

panel, to secure panel to

keypad bezel and compress

the gasket between the

panel and the keypad bezel.

Tighten screws to a torque

of 21-28 oz-in [0.15-0.2 Nm].

3. Use (8) Bezel Mounting Clips,

EA-MG-BZ2-BRK, to secure keypad

bezel through enclosure cutout.

Tighten screws to a torque of

21-28 oz-in [0.15-0.2 Nm].

Function

Key Label

Insert

4. Peel Protective Film

from front of panel.

Clear Screen Overlay

EA-6-COV2

Optional Accessory

NOTE: Mounting clips for the panel and keypad bezels are included with the respective product.
