Setting – Calibration

With Calibration

highlighted, press

ENT [F5] to bring

up the first

calibration screen as

shown on the right.

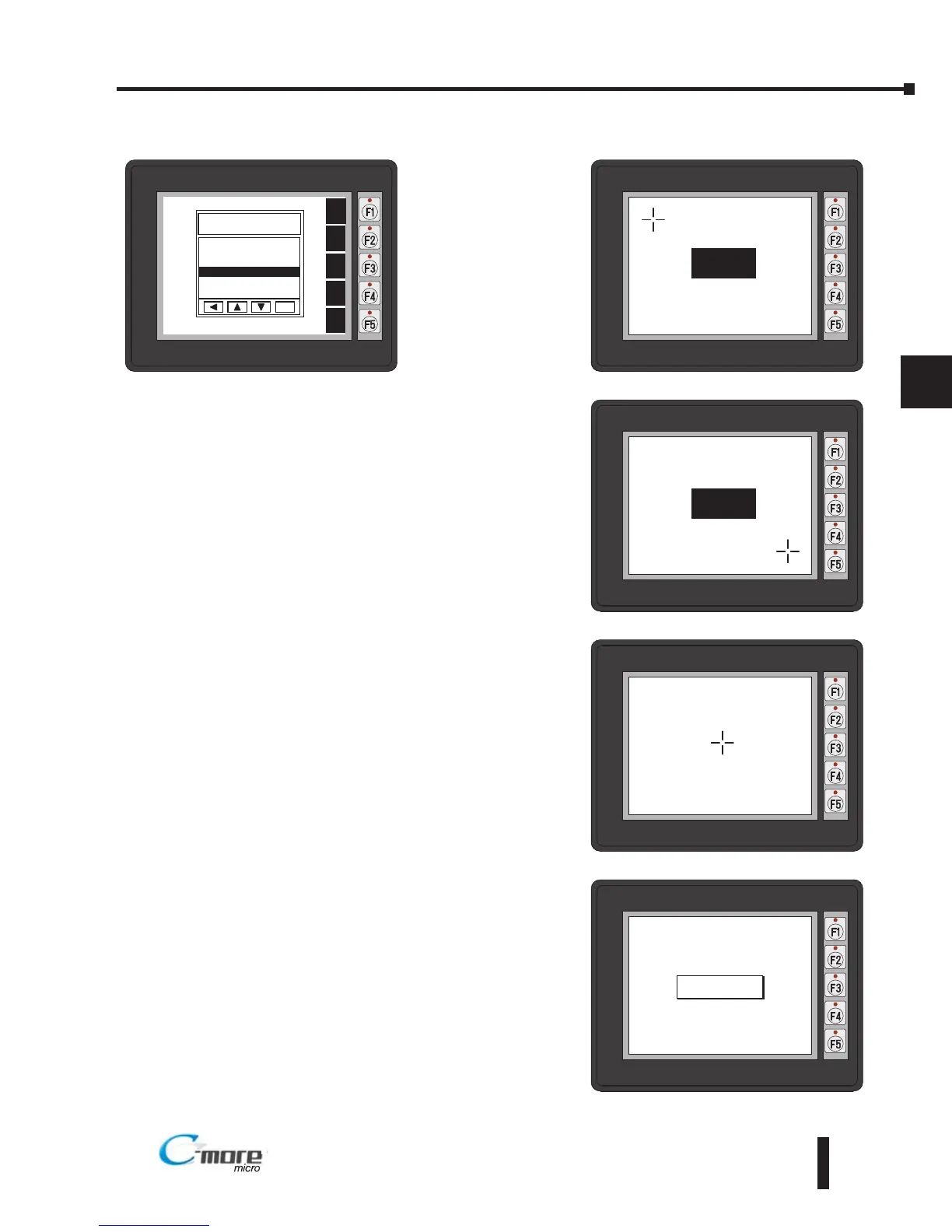

Touch the “cross” in

the upper left corner

as accurately as you

can. When the

screen is touched,

the cross will move

to each corner and

finally to the center

of the screen. If the

touch points are

within the built-in

calibration

tolerance, the final

screen will allow

you to either save

and quit from the

calibration

procedure, or allow

you to retry. If the

points that were

touched are not

within the

calibration

tolerance, you will

be returned to the

first calibration

screen and will need

to start over.

ENT

SETTING

1 LCD Contrast >

2 Backlight >

3 Beep >

4 Ca ibration >

5 Clear User Memory

6 Reset to Factory Default

BAK

DWN

ENT

NXT

Press Cross Mark

Press F1 to Quit

Panel will not

Communicate

in this mode

Press Cross Mark

Press F1 to Quit

Panel will not

Communicate

in this mode

Press Cross Mark

Press F1 to Quit

F5 to Save & Quit

F1 to Retry

Chapter 5: System Setup Screens

5–11

EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
