CAB EOS User Manual

10 10
11
13
15
12
10 11
1617
14
10 Label sensor
11 Printhead retainer with
printhead
12 Guides
13 Knob for adjusting the guides
14 Knob for adjusting the label
sensor
15 Lever for locking the
printhead
16 Tear-off plate
17 Print roller

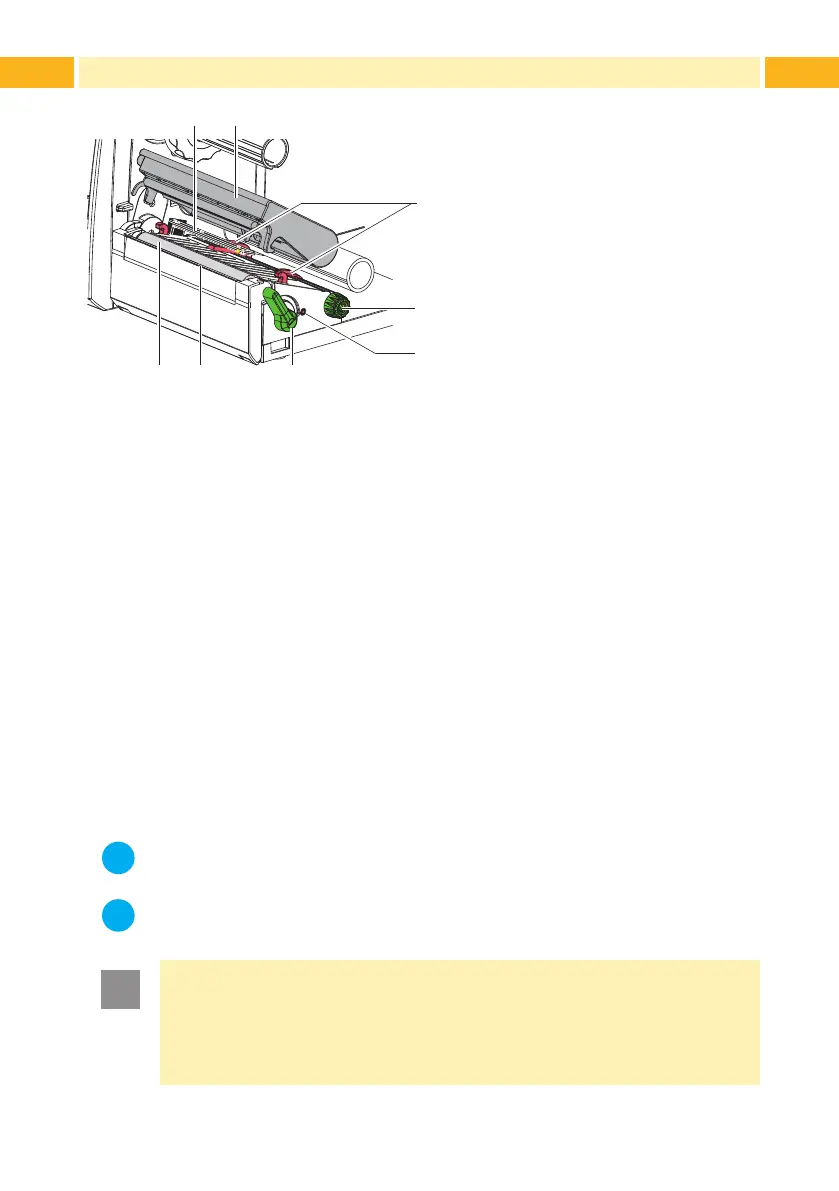

Fig. 5 Print Mechanics
2.2 Unpacking and Setting-up the Printer
 Lift the label printer out of the box and set it up on a level surface.
 Check label printer for damage which may have occurred during transport.
 Check delivery for completeness.
Contents of Delivery:
• Label Printer
• Power Cable Type E+F
• Cardboard Core
• Operator's Manual
• DVD with label software, Windows driver and documentation
• USB Cable
• depending on the type of printer, tear-off plate (mounted) or cutter
 depending on the type of printer, mount cutter  2.3 on page 11.
i
Notice!
Please keep the original packaging in case the printer must be
returned.
i
Notice!
When transporting the printer remove the transfer ribbon and media.
!
Attention!
The device and printing materials will be damaged by moisture and
wetness.
 Set up label printers only in dry locations protected from splash
water.
2 Installation

CAB EOS Specifications

General

Power Supply	100-240V AC, 50/60 Hz
Print Method	Thermal transfer
Print Width	Up to 105.6 mm (depending on model)
Interfaces	USB, Serial, Ethernet
Display	LCD
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Data Matrix, QR Code
Supported Operating Systems	Windows
Resolution	203 dpi
Media Width	4.33" (110 mm)
