4 Loading Material
4.2 Adjusting the Label Sensor
i
Notice!
When the printer is delivered the label sensor is positioned in
the middle of the paper feed. Thus, the label sensor must only be
adjusted if:
• material with reex or cut-out marks, which are not in the middle,
• multi-strip material with an even number of strips,
• material with irregularly shaped labels
are used.
1
3
2

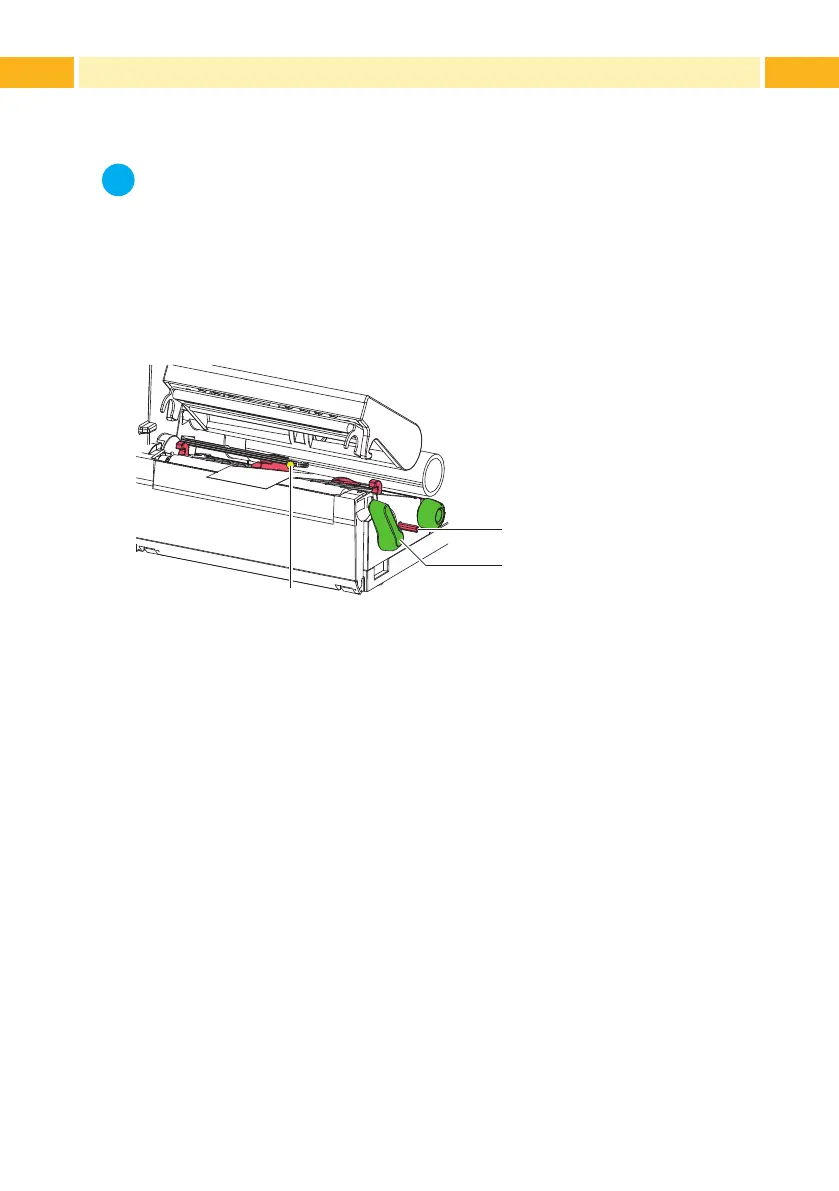

Fig. 11 Adjusting the Label Sensor
The sensor position (3) is marked with a yellow LED in the sensor retainer.
1. Press on the knob for adjusting the label sensor (1) using a pointed object,
so that the knob pops out of the bore of the housing .
2. Position the sensor (3) by turning the knob (1) so that the sensor can
detect the front edge of the label in the direction of paper ow or the reex
or cut-out mark.
3. Push knob (1) back into the bore of the housing using a pointed object
until it snaps into place.

CAB EOS Specifications

General

Power Supply	100-240V AC, 50/60 Hz
Print Method	Thermal transfer
Print Width	Up to 105.6 mm (depending on model)
Interfaces	USB, Serial, Ethernet
Display	LCD
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Data Matrix, QR Code
Supported Operating Systems	Windows
Resolution	203 dpi
Media Width	4.33" (110 mm)
