4 Loading Material
4.1 Open the Printer
2
1

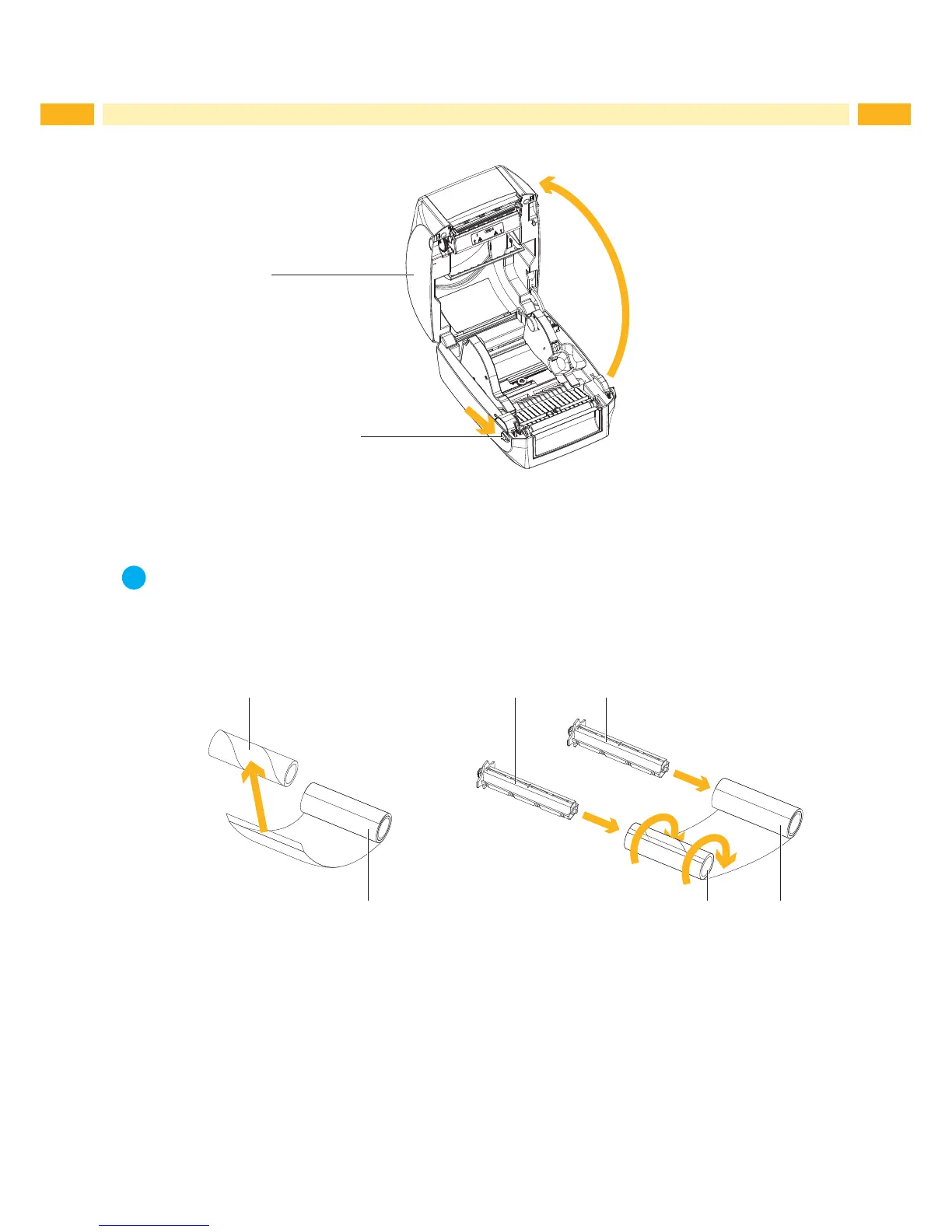

Fig. 10 Open the Printer
1. Placetheprinteronaatsurface.
2. Pull the cover release catches (1) on both sides of the printer.
3. Raise the cover of the casing (2) and lock it into the catch.
Note!
The printing mechanism is lifted up with the printer cover.
4.2 Loading / Replacing the Ribbon on the Printer
4.2.1 Ribbon Module Installation
1 2 1
2 3 3
Fig. 11 Ribbon Module Installation
1. Attach the ribbon (1) to the empty ribbon core (2) with the adhesive strip at the end of the ribbon.
2. Insert the ribbon hub (3) into empty ribbon core (2) and new ribbon (1).
3. Wind the ribbon around the empty ribbon core (2) for 2 to 3 circles.
