CAB SQUIX Series User Manual

38 38
7 Test Functions

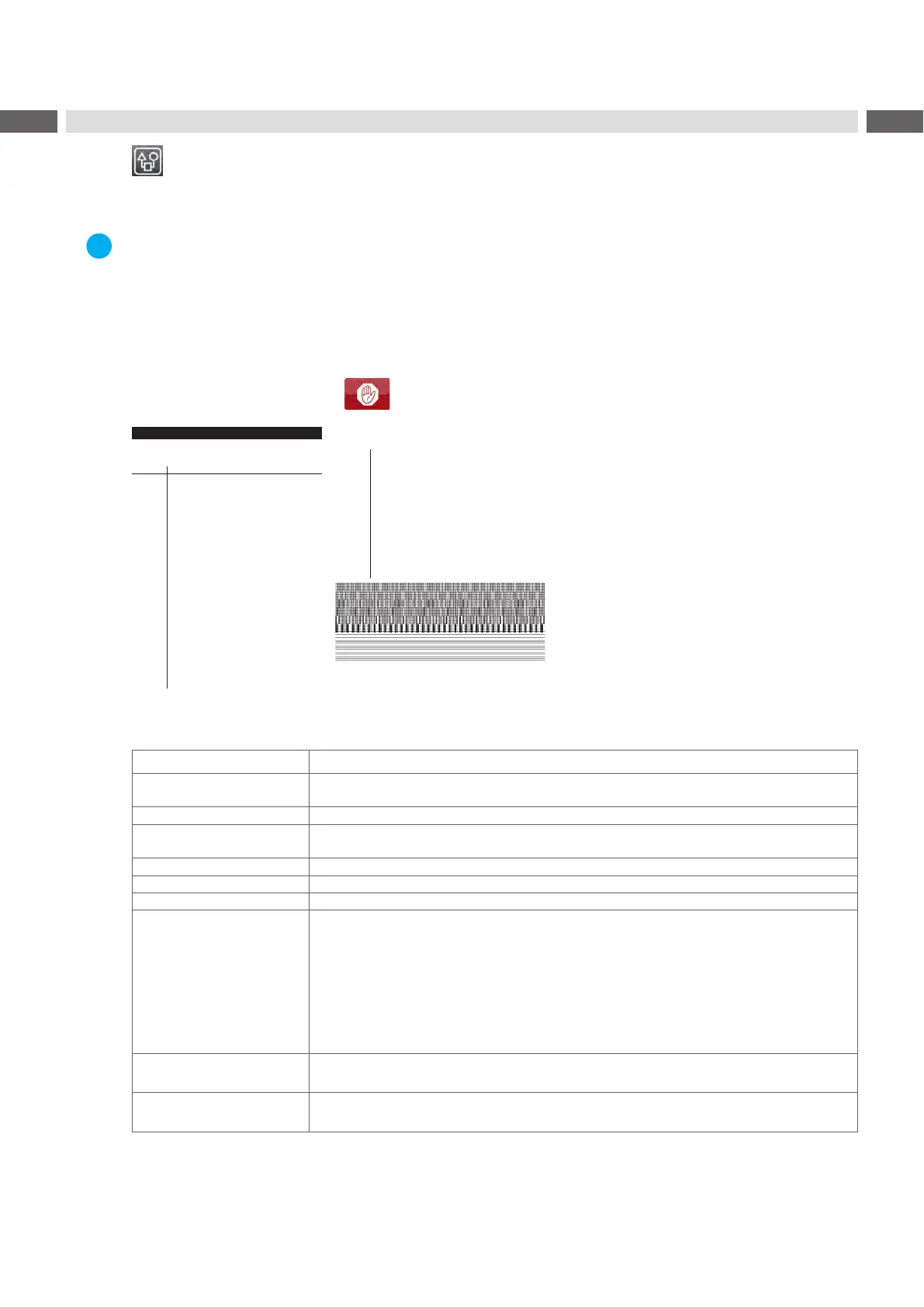

7.4 Device List
The Device list function prints out the most important information on hardware components of the printer and connected
devices.TheprintoutoccursusingtheheatlevelandprintspeedspeciedintheSetup > Printing menu.
i
Notice!
The printout occurs without taking the label gaps into consideration. This is why endless media are most
suitable for this purpose.
 Insert printable medium (labels, endless paper) which extends across the entire printing width.
 If the printout is to occur using thermal transfer printing, insert transfer ribbon with the maximum width.
 Start menu.
 Select Test > Device list.
The printout can be canceled with
.
Device list
Wed Aug 14 10:41:19 2019
cab SQUIX 4/300MP
Firmware V5.27 (Jul 25, 2019) - #164162036456
Name Description
CPU X4, #164162036456
PCB-Rev. 0, FPGA-Rev. 12
TPH 4“/300dpi/Kyocera V2.1.0, #72-01165
Resistance: 1079R
Manf. 2017-05-05 10:29:40
First: 2017-08-15 11:21:23
Last: 2019-08-14 07:13:08
I/F 1 Ethernet 10/100 MBit/s
MAC: 70:82:0e:99:91:63
I/F 2 USB 2.0 Device
I/F 3 RS-232
IFFS 45 MByte
USBMEM 3928 MByte
SD 3465 MByte
USB [1] Linux 3.10.4 ehci_hcd/EHCI Host Controller
High #ci_hdrc.1,Rev. 3.10
Mfr. 1D6B, ID: 0002, Class: 09/00, Protocol: 01
Driver: hub
USB [2] Cypress Semiconductor Corp./USB2.0 Hub
High Rev. 32.99
Mfr. 04B4, ID: 6570, Class: 09/00, Protocol: 01
Driver: hub
USB [3] Cambridge Silicon Radio, Ltd.
Full Rev. 52.76
Mfr. 0A12, ID: 0001, Class: E0/01, Protocol: 01
Driver: btusb
USB [4] cab/Service-Key
Full #11-10296933,Rev. 1.06
Mfr. 0985, ID: 0BD8, Class: FF/00, Protocol: FF
Driver: cab_key
USB [5] Microchip Technology Inc./AR1100 HID-DIGITIZER
Full Rev. 1.01
Mfr. 04D8, ID: 0C03, Class: 00/00, Protocol: 00
Driver: usbhid
USB [6] Ralink/802.11 n WLAN
High #1.0,Rev. 1.01
Mfr. 148F, ID: 5370, Class: 00/00, Protocol: 00
Driver: rt2800usb
USB [7] USB /Flash Disk
High #90730B001E66,Rev. 1.10
Mfr. 13FE, ID: 1D00, Class: 00/00, Protocol: 00
Driver: usb-storage
USB [8] Cypress Semiconductor Corp./USB2.0 Hub
High Rev. 32.99
Mfr. 04B4, ID: 6570, Class: 09/00, Protocol: 01
Driver: hub
HEALTH PS 24,2V, BATT OK, TPH 26,1°C
Figure 18 Device list
Parameters marked italic are only printed when the service key is inserted
Name Information
CPU Type and serial number of the PCB CPU
Revision of PCB CPU and FPGA
TPH Print width and resolution of the installed thermal printhead
IF [x] Type of interfaces installed
x: Number of interface
IFFS Size of the Internal Flash File System
USBMEM Size and type of an installed USB storage device
SD Size and type of an installed SD card
USB [a]
Speed
Type and revision of installed USB devices
a: number of USB device
Speed: data transfer speed (low, full, high)
The following properties are only displayed when the service key is inserted:
Mfr.
:ManufacturerID.ThisidentiesthemanufactureroftheUSBdevice
Class: Code for the USB device class
Protocol: Code for the type of communication with the USB device
Phase: Internal value for troubleshooting
HEALTH Printhead voltage, charge state of the lithium battery on the PCB CPU,
temperature of CPU and printhead
Line pattern Lines differing in thickness at various distances. They are used to evaluate the print
quality.
Table 22 Parameters of the Device list
